MOTOMAN EA1400N 3KG X 1390MM REACH 6 AXIS CNC ROBOTIC DUAL ARM DUAL TRUNION WELD CELL

Contact us for price

Imlay City, MI

orCall 586-752-0090

Description

1-USED MOTOMAN EA1400N 6 AXIS CNC DUAL ARM DUAL TRUNION ROBOTIC WELDING CELL
ORDER NUMBER S4K742-1R-1
DATE OF MFG. 3/2005
STK#103820
========================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

JUST REMOVED FROM SERVICE WE HAVE THE FOLLOWING WELD CELL FOR SALE

THIS IS A DUAL ARM MOTOMAN WELDING CELL. BUILT WITH DUAL MOTOMAN POSITIONERS.
THE ROBOTS ARE MODEL EA1400N BOTH ROBOTS ARE MOUNTED ABOVE THE TRUNIONS,
AND EQUIPPED WITH 7 AXIS SERVO DRIVEN TRACK POSITIONER, SO THAT BOTH ROBOTS ARE
ABLE TO MOVE LONGITUDINALLY ALONG THE LENGTH OF THE SERVO DRIVEN POSITIONERS,
THAT ARE POSITIONED BELOW WHERE THE ROBOTS ARE MOUNTED. BOTH ROBOTS HAVE
THE NX100 CONTROLLER.

Both Robot Specifications:
Axes: 6
Payload: 3.00kg
H-Reach: 1390.00mm
Repeatability: ±0.0800mm
Robot Mass: 130.00kg
Structure: Articulated
Mounting: Floor

Robot Motion Speed:
J1 150 °/s (2.62 rad/s)
J2 160 °/s (2.79 rad/s)
J3 170 °/s (2.97 rad/s)
J4 340 °/s (5.93 rad/s)
J5 340 °/s (5.93 rad/s)
J6 520 °/s (9.08 rad/s)

Robot Motion Range:
J1 ±170°
J2 +155° - 90°
J3 +190° - 170°
J4 ±150°
J5 +180° - 45°
J6 ±200°

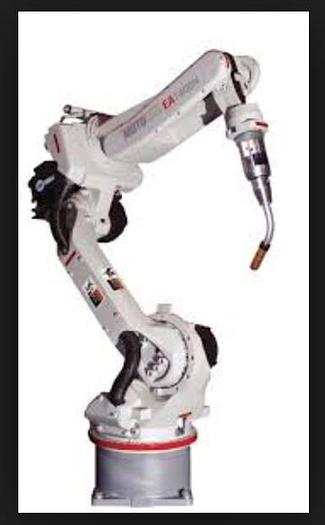

The EA1400N is Motoman's popular welding robot arm paired with the powerful NX100controller.
The EA 1400N Motoman welder is a ceiling and wall mountable robot designed for floor plan flexibility. ThE EA-1400N variation allows you to work from above or the side, fitting easily into your workplace.

CELL EQUIPPED WITH:
2-MOTOMAN EA1400N 7TH AXIS SERVO DRIVEN TRACK MOUNTED MIG WELDING ROBOTS
2-WELD GUNS
2-MOTOMAN MOTOWELD E350II MIG WELDING POWER SUPPLIES
2-MOTOMAN MOTOPOS TYPE YR-MPS500B-A10 500KG CAPACITY SERVO DRIVEN HEADS
4-SPOT WELD STATIONS 2 EACH LOCATED BEHIND THE TRUNIONS
2-NX100 CONTROLERS
SCREEN SECTIONS TO ENCLOSE CELL
TIP CLEANERS

FOB TRUCK IMLAY CITY, MI 48444

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND
BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS
AND CONDITIONS.

WWW.RABIND.COM
586-752-0090

Specifications

ManufacturerMOTOMAN EA1400N 3KG X 1390MM REACH 6 AXIS CNC ROBOTIC DUAL ARM DUAL TRUNION WELD CELL
ModelEA1400N
Year2005
ConditionUsed
Serial NumberS4K742-1R-1
Stock Number103820
