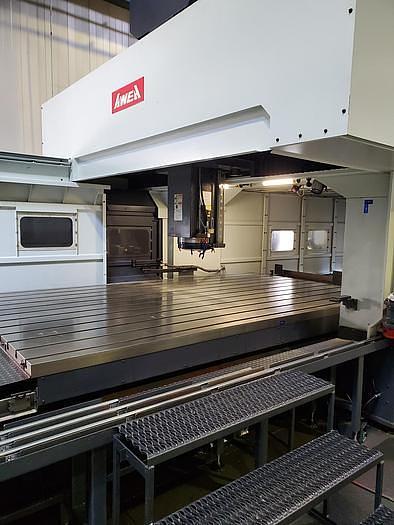

2016 AWEA LP 4025Z CNC VERTICAL BRIDGE MILL, LIKE NEW CONDITION!
No longer available
2016 AWEA LP 4025Z CNC VERTICAL BRIDGE MILL, LIKE NEW CONDITION!
$455,000 (USD)
Almont, MI
Description
1- USED DEMO ONLY AWEA LP 4025Z CNC BRIDGE MILL
YEAR OF MFG. 2016
STOCK#104049
============================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:
X AXIS TRAVELS 4000MM
Y-AXIS TRAVELS 2,500 MM
Z-AXIS TRAELS 760 MM
TABLE LOAD CAPACITY 15000KG
SPINDLE MOTOR ( cont. / 30 min. ) 22 / 26 kW ( 30 / 35 HP )
Fanuc 31i Control
4,000 RPM Geared Spindle
CAT 50 Big Plus
60 Position ATC
Semi-Automatic Head Changer
90 degree programmable head (5 degree indexing)
1000 PSI Through Spindle Coolant Prep
Includes:
- Stainless steel cart of setup tooling including T nuts, clamps, blocks, etc.
- Stainless steel cart of tooling including removable cutter heads, shrink fit shanks, inserts, end mills, drills, etc.
- 55 gallon drum of hydraulic oil(we over ordered at time of installation)
- 4 custom risers measuring 42” by 18” by 24” tall with 84 predrilled holes each for use with setup materials
- Large adjustable height work bench
- 52 CAT-50 tool holders, many of them never used, ranging from collet holders, to changeable head roughing holders, to Haimer shrink fit holders, etc.
- External air blast mounted to the ATC side of the column for added chip removal(MMS added option using shop air supply for maximum power)
- Chipblaster through spindle coolant system
- Powertran transformer
THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND
BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS
AND CONDITIONS.
RAB INDUSTRIES, INC.
Specifications
Manufacturer | AWEA |
Model | LP 4025Z |
Year | 2016 |
Condition | Used |
Stock Number | 104049 |
