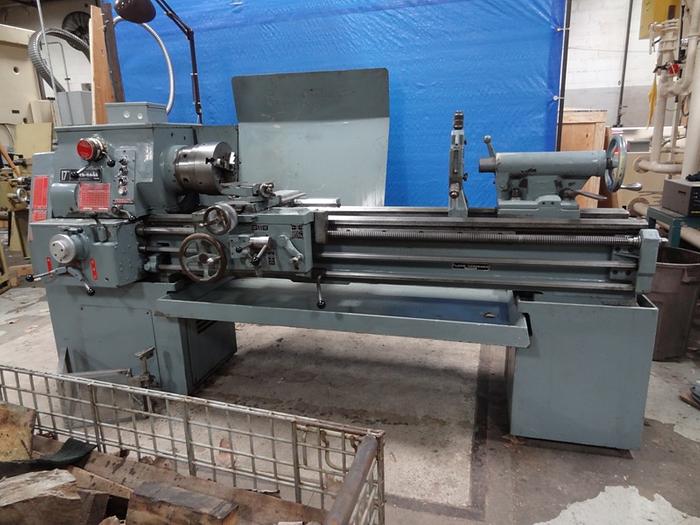

SOUTHBEND TURNADO 17" X 54" ENGINE LATHE

$6,900 (USD)

Almont, MI

orCall 586-752-0090

Description

1-USED SOUTHBEND TURNADO 17" X 54" ENGINE LATHE
MACHINE SERIAL NUMBER 74-GJ-2507
APPROX. DATE OF MFG. 1974
STK# 103658
=========================================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

SWING OVER BED 17 1/8"
SWING OVER CROSS SLIDE 10 1/2"
SWING OVER COMPOUND SLIDE 4 1/4"
SPINDLE NOSE 8" D-1 CAMLOCK
DISTANCE CENTER LINE OF SPINDLE TO FLOOR 44 1/2"
HOLE THRU SPINDLE 2.54"
SPINDLE SPEEDS 30 TO 1,580 RPM 2 SPEED MOTOR 900 RPM AND 1800 RPM
BED WIDTH 13"
BED DEPTH 12 1/8"
DISTANCE BETWEEN CENTERS 54"
THREADING COURSE THREADS 1 3/8 TO 2 1/2 TPI
THREADING FINE THREADS 2 3/4 TO 160 TPI
FEEDS .0021 TO .1242 IPR
CROSS FEED TRAVEL 14" W/ TAPER ATTACHMENT
COMPOUND REST TRAVEL 3 1/2"
TAILSTOCK QUILL DIAMETER 3"
TAILSTOCK QUILL TRAVEL 7"
TAILSTOCK QUILL TAPER #5 MORSE TAPER
TAILSTOCK SET OVER EITHER DIRECTION FROM CENTER 1"
TAPER ATTACHMENT TAPER PER FOOT 4"
TAPER ATTACHMENT MAX TURNING LENTH AT ONE SETTING 16"

EQUIPPED WITH:
TAILSTOCK
3 POINT STEADY REST
10" 3 JAW CHUCK
APRON MOUNTED CLUTCH AND BRAKE CONTROL
FAST/SLOW MOTOR SELECTOR SWITCH
FORWARD/REVERSE MOTOR SELECTOR SWITCH
CHUCK GAURD
CHIP PAN
COOLANT TANK AND PAN
REAR CHIP GAURD

FOB TRUCK, ALMONT, MI 48003

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND
BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS
AND CONDITIONS.

(586)752-0090
WWW.RABIND.COM

Specifications

ManufacturerSOUTHBEND
ModelTURNADO 17"
Year1974
ConditionUsed
Serial Number74-GJ-2507
Stock Number103658
