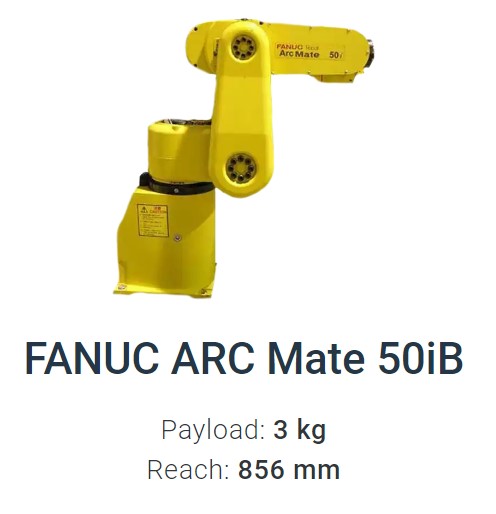

FANUC ARC Mate 50iB is a six-axis robot engineered to offer versatility in a simple package. A tabletop welder with a low 47kg mass, the ARC Mate 50iB RJ-3iB is designed to perform high-speed arc welding applications.


The 50-iB RJ3iB is a highly flexible automated robot that mounts to any surface – the floor, ceiling or at an angle. This plasma welding robotic arm is electric servo-driven for maximum performance during smaller applications. Additionally, the ARC Mate 50iB’s compact body takes space efficiency to new levels. This mini is fast and reliable, offering a horizontal reach of 856mm, allowing it to reach confined spaces easily.


If you are looking to save more costs, RAB Industries offers used ARC Mate 50iB robots


The used Arc Mate 50iBs, partnered with an RJ3iB, moves efficiently to avoid premature mechanical wear. The 50iB features enhanced motion control, sealed bearings and protected drive supplies. Its internally routed cables offer protection from harsh welding environments.


Robot Specifications:

Axes: 6

Payload: 3kg

H-Reach: 856mm

Repeatability: ±0.04mm

Robot Mass: 47kg

Structure: Articulated

Mounting: Floor, Inverted, Angle


Robot Motion Speed:

J1 140 °/s (2.44 rad/s)

J2 150 °/s (2.62 rad/s)

J3 160 °/s (2.79 rad/s)

J4 400 °/s (6.98 rad/s)

J5 330 °/s (5.76 rad/s)

J6 480 °/s (8.38 rad/s)


Robot Motion Range:

J1 ±160°

J2 +150° - 35°

J3 +165° - 125°

J4 ±190°

J5 ±120°

J6 ±360°


Applications:

Arc Welding Robots

Welding Automation Robots

Sanding Robots

Grinding Robots

Shielded Metal Arc Welding Robots

Plasma Welding Robots

Plasma Cutting Robots

Laser Cutting Robots
