Payload 150kg

Reach 3507mm


The Fanuc M Series M-900iA/150P is a pedestal robot or can be gantry mounted it runs on the R30iB Controller Fanuc's newest generation of controllers.

Can often be found Press tending.


Robot Specifications:

Axes: 6

Payload: 200kg

H-Reach: 3507mm

Repeatability: ±0.3mm

Robot Mass: 2670kg

Structure: Articulated

Mounting: Floor, Inverted, Angle


Robot Motion Speed:

J1 110 °/s (1.92 rad/s)

J2 95 °/s (1.66 rad/s)

J3 95 °/s (1.66 rad/s)

J4 95 °/s (1.66 rad/s)

J5 120 °/s (1.68 rad/s)

J6 200 °/s (2.88 rad/s)

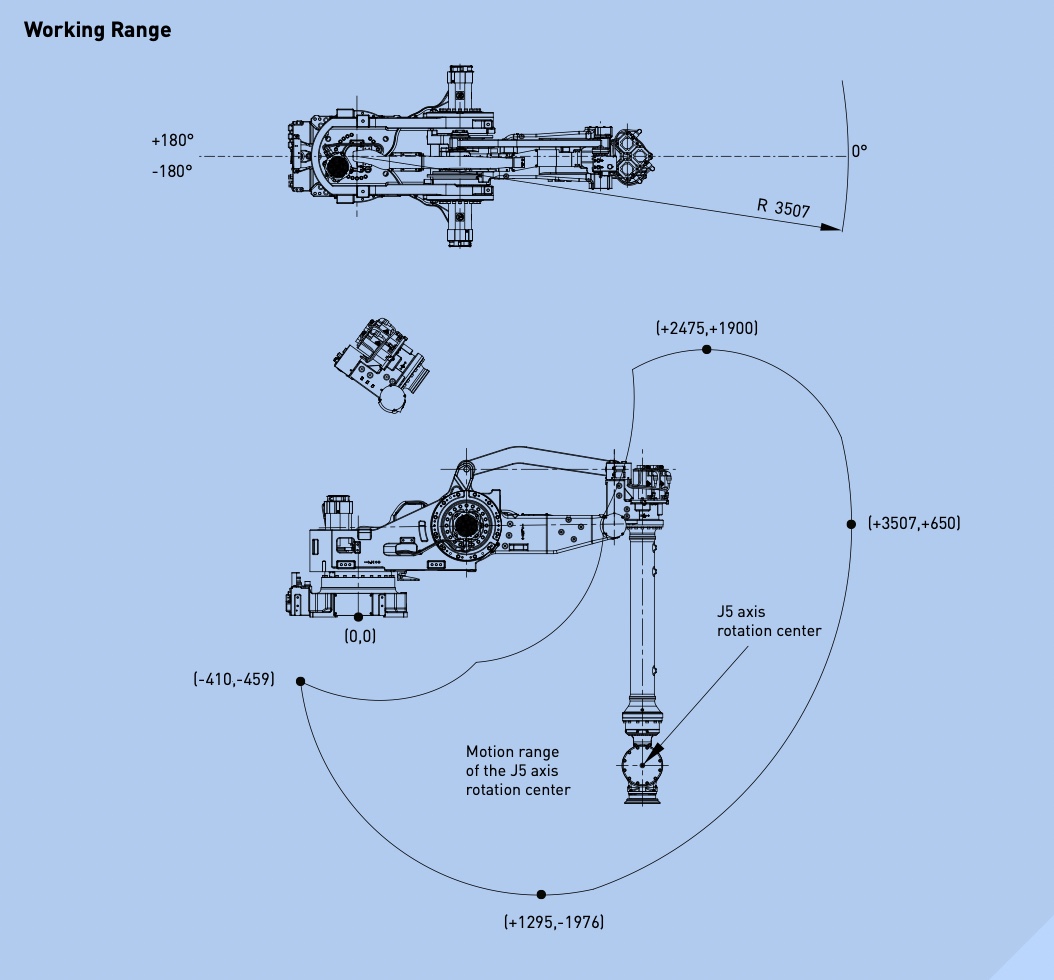

Robot Motion Range

J1 ±360°

J2 ±180°

J3 ±180°

J4 ±720°

J5 ±250°

J6 ±720°


Applications:

Material Handling Robots

Part Transfer Robots

Pick and Place Robots



Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
