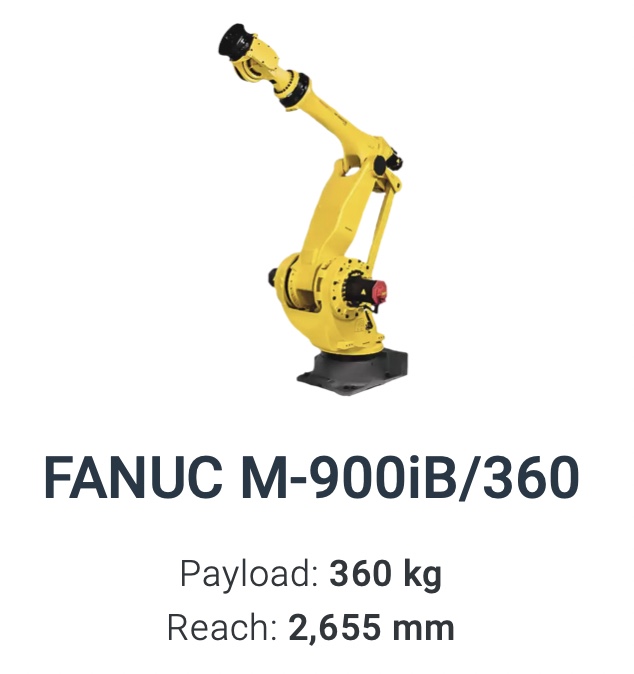

The newest Fanuc robots in the M-900 class the Fanuc M-900iB/360 is a high speed robot ideal for a variety of applications, including assembly, part transfer, and spot welding. This 6-axis robot has a compact wrist and 360kg payload. The Fanuc M900iB/360 comes equipped with the R-30iB controller variations and can be mounted on the floor or ceiling.


Robot Specifications:

Axes: 6

Payload: 360kg

H-Reach: 2655mm

Repeatability: ±0.3mm

Robot Mass: 1540kg

Structure: Articulated

Mounting: Floor, Inverted


Robot Motion Speed:

J1 110 °/s (1.92 rad/s)

J2 105 °/s (1.83 rad/s)

J3 100 °/s (1.75 rad/s)

J4 110 °/s (1.92 rad/s)

J5 110 °/s (1.92 rad/s)

J6 180 °/s (3.14 rad/s)

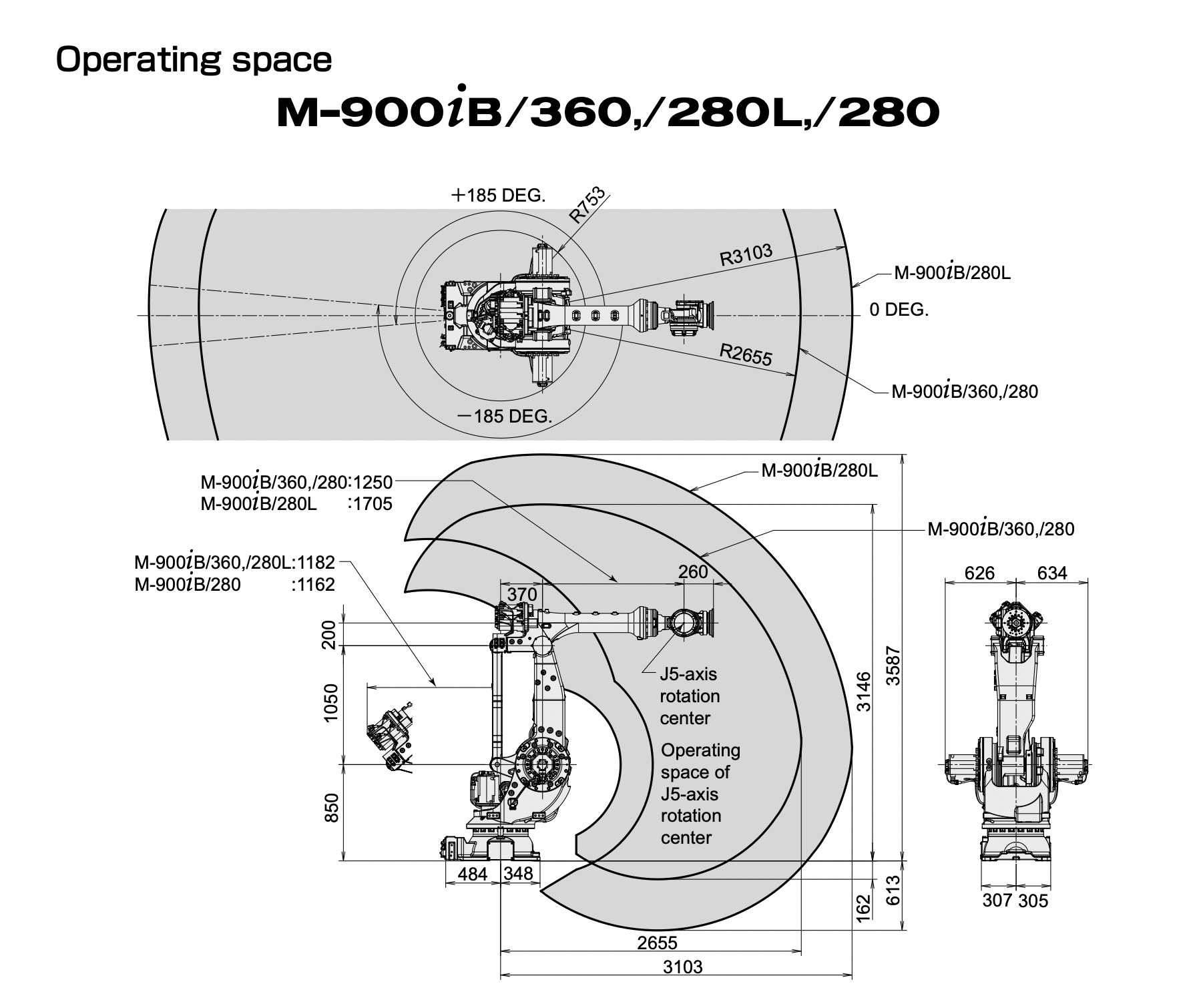

Robot Motion Range:

J1 ±370°

J2 ±151°

J3 ±224°

J4 ±720°

J5 ±250°

J6 ±720°


Applications:

Spot Welding Robots

Dispensing Robots

Machine Loading Robots

Machine Tending Robots

Part Transfer Robots

Assembly Robots

Coating Robots

Material Removal Robots




Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
