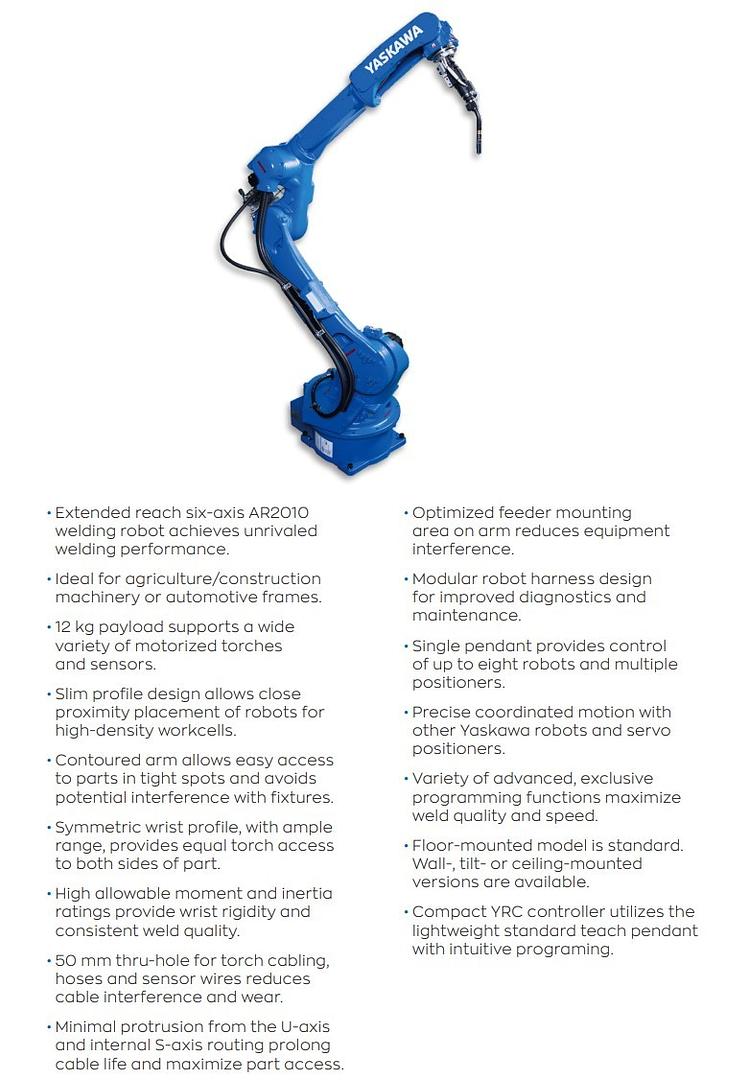

THE YASKAWA MOTOMAN AR2010 IS THE NEWEST IN A LONG LINE OF ARC WELDING ROBOTS WITH A RICH HISTORY OF MANUFACTURING INCREDIBLE ROBOTS. IT IS EQUIPPED WITH THE NEWEST YRC1000 CONTROLLER.

Ideal for welding agricultural equipment, automotive frames or construction machinery, the new AR2010 robot offers fast and powerful

performance for arc welding applications. While the streamlined arm design gives easy access to parts in confined places, the slim robot profile permits close robot placement for high-density weld cells. Improved axis composite speed and expanded wrist range optimize robot functionality, and a symmetric wrist provides equal access to both sides of a part. A 50 mm thru-hole reduces cable interference and wear, and an enhanced feeder mounting area on the arm reduces equipment obstruction.

ROBOT SPECIFICATIONS:

PAYLOAD 12 kg

HORIZONTAL REACH 2010 mm

AXES 6

REPEATABILITY 0.03 mm

MASS 260 kg

MOUNTING Floor / Upside Down / Angle

INTERNAL I/O CABLE 17 conductors with ground

INTERNAL USER AIR LINE (1) 3/8" connection

POWER REQUIREMENTS 380-480 vac

POWER RATING 2 KVA

MOTION SPEED:

J1 210 °/s

J2 210 °/s

J3 220 °/s

J4 435 °/s

J5 435 °/s

J6 700 °/s

ROBOT MOTION RANGE:

J1 ±180°

J2 +155°-105°

J3 +160°-86°

J4 ±150°

J5 +90°-135°

J6 ±210°

OPTIONS:

Extended length manipulator cables

Robot risers

Wide variety of field bus cards

Vision systems

Variety of weld packages

Seam tracking and seam finding packages

Functional safety unit

External Axes

Motosim offline programming
