YASKSAWA MOTOMAN GP280L 6 AXIS ROBOT GENERAL PURPOSE ROBOT

FROM THE OEM:

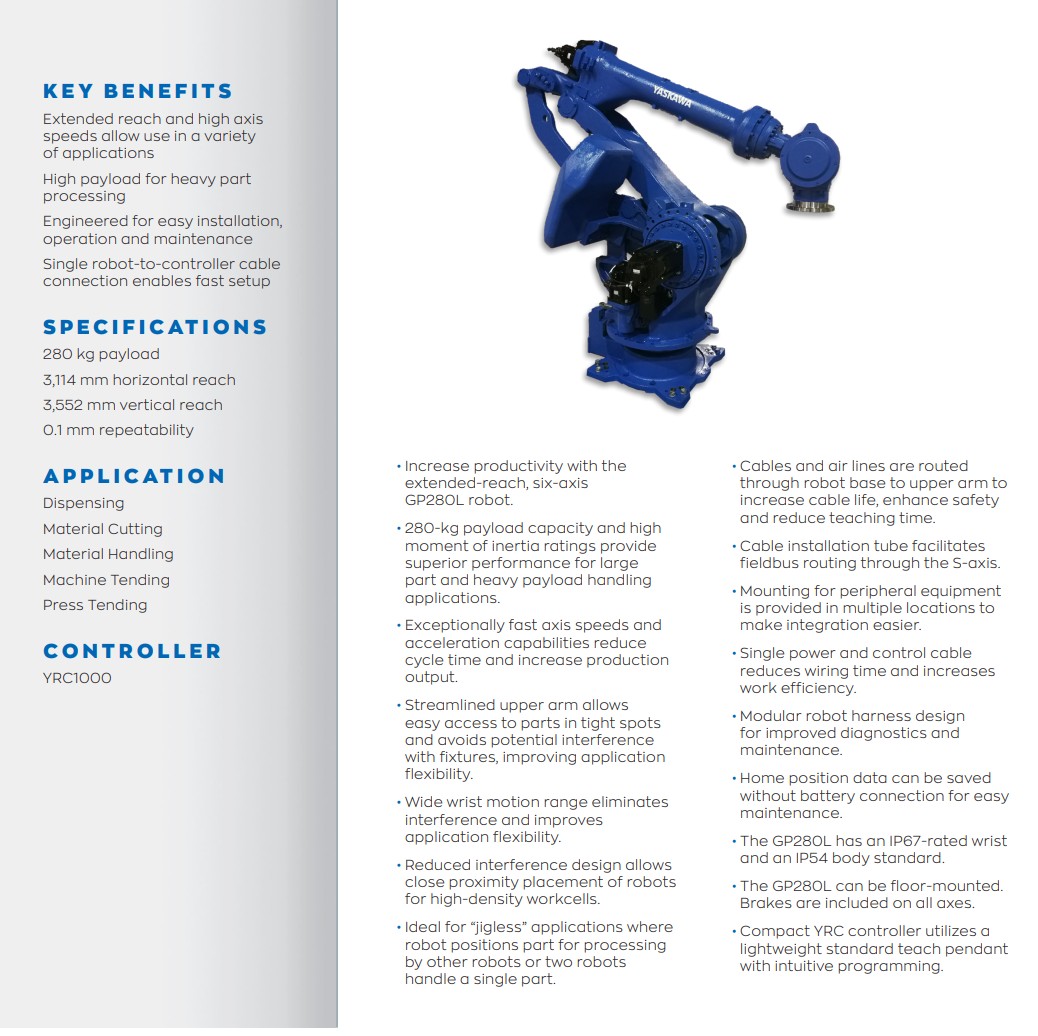

Ideal for jigless applications, the powerful extended-reach GP280L robot for high-payload handling tasks offers exceptionally fast axis speeds and acceleration capabilities for reducing cycle time and increasing production output. High moment of inertia ratings easily accommodate large parts, and a streamlined upper arm helps to avoid interference with fixtures and allows easy access to parts in tight spaces for optimum flexibility. Built with complex workcells in mind, the six-axis GP280L robot enables high-density robot placement, as well as easy installation and maintenance.

SPECIFICATIONS:

CONTROLLED AXES 6

MAXIMUM PAYLOAD 280 KG

REPEATABILITY 0.01 MM

HORIZONTAL REACH 3,114 MM

VERTICAL REACH 3,552 MM

WEIGHT 2,380 KG

INTERNAL USER I/O CABLE 24 CONDUCTORS WITH GROUND

INTERNAL USER AIR LINE (1) 3/8" CONNECTION

POWER REQUIREMENTS 380-480 VAC

POWER RATING 7.5 KVA

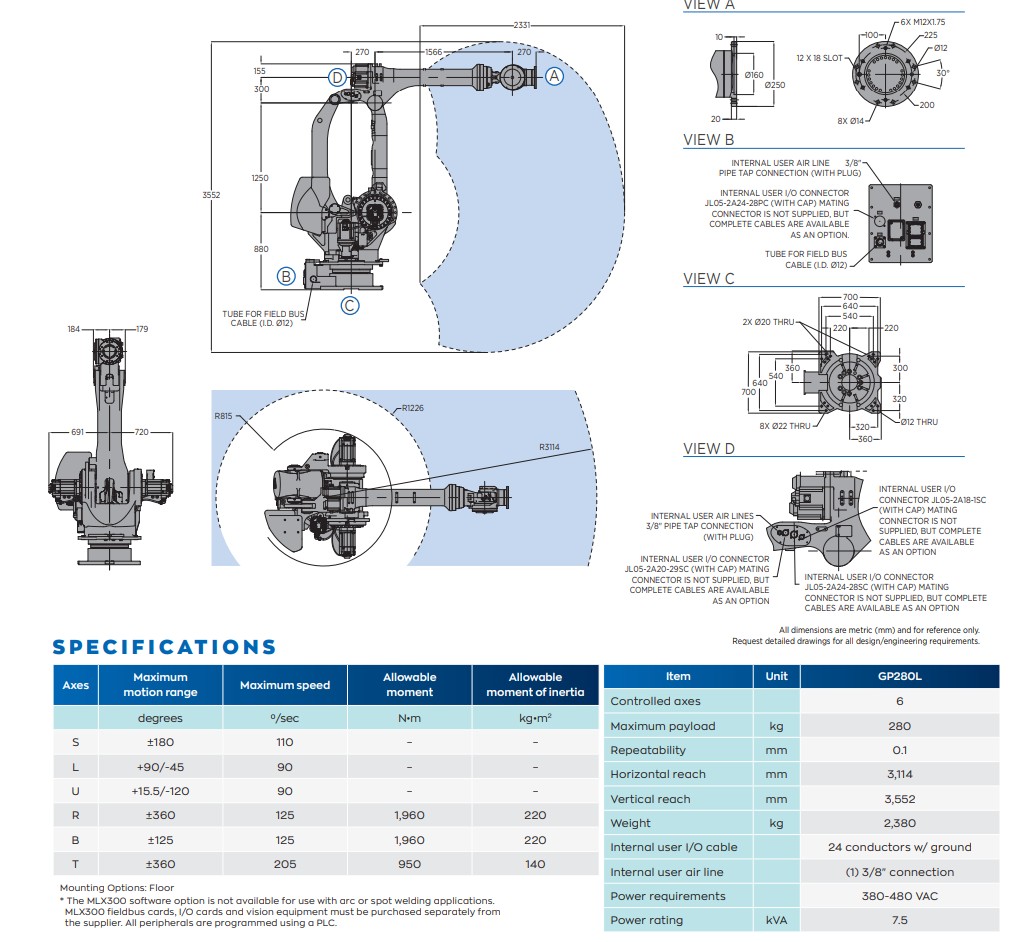

RANGE OF MOTION:

S +/- 180°

L + 90 /-45°

U + 15.5 /-120°

R +/- 360°

B +/- 125°

T +/- 360°

MAXIMUM SPEED:

S 110 °/SEC

L 90 °/SEC

U 90 °/SEC

R 125 °/SEC

B 125 °/SEC

T 205 °/SEC

ROBOT APPLICATIONS:

DISPENSING

MATERIAL CUTTING

MATERIAL HANDLING

MACHINE TENDING

PRESS TENDING

CONTROLLER: YRC1000
