Versatility at its finest, the 4600-40 has flexible mounting (floor, tilted, semi-shelf, or inverted) and is very compact. The compact design includes a slim swing base radius around axis 1, fine elbow behind axis 3, small lower and upper arms, and a very compact wrist. This allows you to place the robot closer to the served machines, further increasing your output and productivity. For these reasons and more, the IRB 4600-40 is sure to offer space saving options and ultimately help to shrink the footprint of your manufacturing cells.

SPECIFICATIONS:

Payload 40 kg

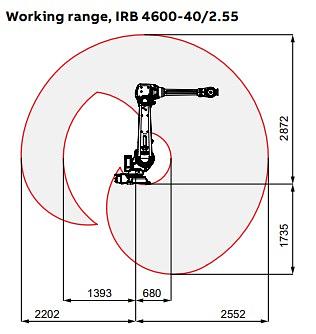

Reach 2550 mm

Axes 6

Repeatability 0.05 mm

Mass 412 kg

Structure Articulated

Mounting Floor, Inverted, Angle

MOTION SPEED:

J1 175 °/s (3.05 rad/s)

J2 175 °/s (3.05 rad/s)

J3 175°/s (3.05 rad/s)

J4 360°/s (6.28 rad/s)

J5 250 °/s (4.36 rad/s)

J6 360 °/s (6.28 rad/s)

RANGE OF MOTION:

J1 ±180°

J2 +150° - 90°

J3 +75° - 180°

J4 ±400°

J5 +120° - 125°

J6 ±400°

Applications:

Arc Welding Robots

Assembly Robots

Cutting Robots

Dispensing Robots

Machine Tending Robots

Material Handling Robots

Packaging Robots

Palletizing Robots

MACHINE PROTECTION:

IP67

CONTROLLER PLATFORM ABB IRC5
