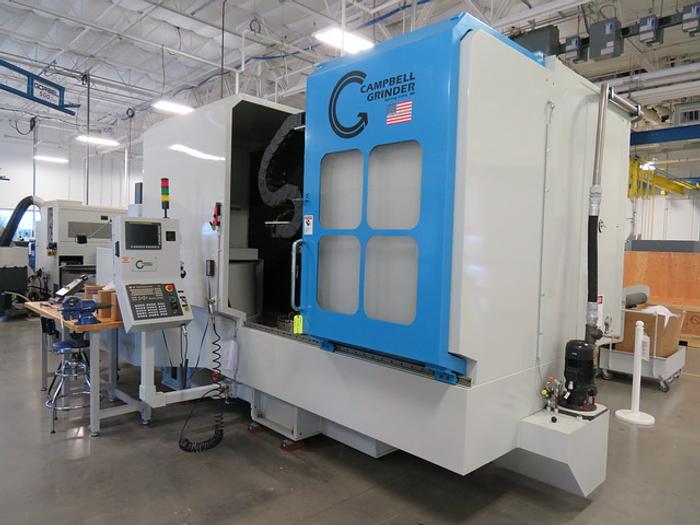

CAMPBELL MODEL 1000C500 MULTI AXIS VERTICAL CYLINDRICAL GRINDING MACHINE
No longer available
CAMPBELL MODEL 1000C500 MULTI AXIS VERTICAL CYLINDRICAL GRINDING MACHINE
Imlay City, MI
Description
1-LIKE NEW CAMPBELL MODEL 1000C500 MULTI AXIS VERTICAL CYLINDRICAL GRINDING MACHINE
DATE OF MFG, 2017
STK#103836
==============================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:
MODEL 1000C500
Dimensions: 2.7 M x 2.8 M
Swing Diameter: 609 mm
Part Height: 762 mm
Axes: X, Z, B, C
Spindle: 15HP & 1500 - 7500 RPM
Standard Features:
Fanuc CNC Control Model 32i Model B
Precision Roller Ways in All Axes
X and Z Axes Linear Motor Technology
Ability to use Any Abrasive
OD/ID Grinding Spindle
Single Point Dresser.
Roller Style Table Bearing
Linear Glass Scales in All Axes
Full Machine Enclosure
Options:
Setco Grinding Spindle 25 HP @ 3600 RPM,
High Speed 45,000 RPM
Type HSK80E Tool Clamp Draw Bar
500mm Dia. Permanent Magnetic Chuck,
rotates up to 200 RPM,
Wendt MK5 Cantilever Dresser Spindle
3 HP, 5000 RPM
Z-Axis Counterbalance
Camco 10-position Tool Changer/Indexer
MicroTech MVF-120-700 Roll Media Coolant
Filtration/Chilling SysteM
Power: 480/3/60
This proven design has been successful in ID/OD grinding in the bearing, aerospace, and power generation industries.
The 1000 ID/OD cylindrical grinder is a highly rigid platform configured to machine a part with its axis vertical, which eliminates the need for a steady rest or tailstock, enhancing accuracy and repeatability.
The ID/OD grinding machine is available with up to six axes of motion and various options, including hard turning to improve productivity. An optional tool changer reduces the need to re-clamp the part for multiple operations thus reducing machining time
THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND
BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS
AND CONDITIONS.
RAB INDUSTRIES, INC.
Specifications
Manufacturer | CAMPBELL |
Model | 1000C500 |
Year | 2017 |
Condition | Used |
Stock Number | 103836 |
