FANUC M16i 6 AXIS ROBOT WITH RJ3 CONTROLLER

FANUC M16i 6 AXIS ROBOT WITH RJ3 CONTROLLER

$6,000 (USD)

Available quantity: 1

Imlay City, MI

orCall 586-752-0090 Extension 1 for Sales

Description

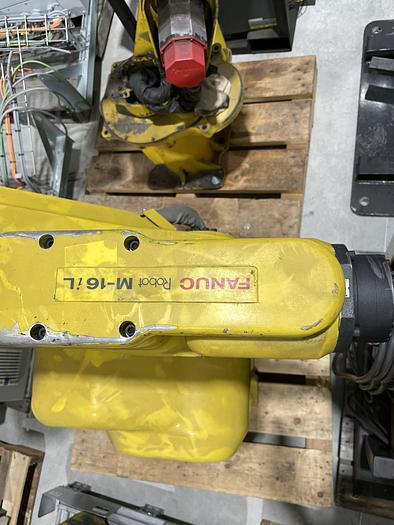

1-USED FANUC M16i 6 AXIS ROBOT WITH RJ3 CONTROLLER

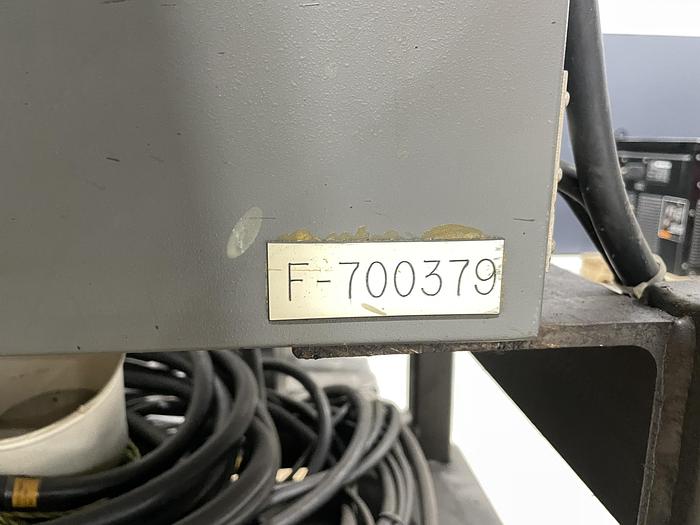

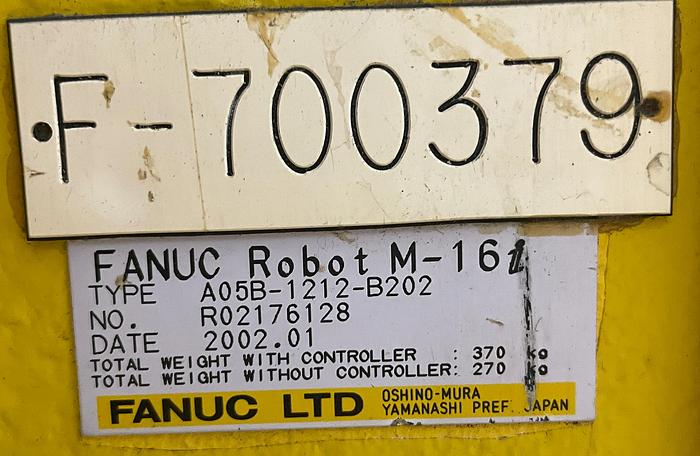

SERIAL NUMBER F700379

DATE OF MFG. 01/2002

STK# 104782

===============================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:


The FANUC M-16i robot provides an intelligent automation solution for a variety of applications. When it comes to material handling and removal, loading and unloading, assembly, and even water jet cutting, the M16i model is fast and effective. The FANUC M-16i offers 6 axes of flexibility and a payload capacity of 16 kg. The J6 axis is capable of moving up to 450 degrees in a second. The M-16i can use the RJ2 or the RJ3 controller. This user-friendly, servo-driven robot is designed to make maintenance simple. From grease fittings to brushless AC motors, the M-16i's components are easy to service, lubricate, and replace. The Fanuc M-16i has a modular construction, which means it is easily updated or integrated. The body of the FANUC M-16 is water and dust resistant with sealed bearings and drives. These design choices give this model even greater longevity and reliability.


Robot Specifications:

Axes: 6

Payload: 16kg

H-Reach: 1605mm

Repeatability: ±0.08mm

Robot Mass: 270kg

Structure: Articulated

Mounting: Floor, Inverted, Angle


Robot Motion Speed:

J1 140 °/s (2.44 rad/s)

J2 140 °/s (2.44 rad/s)

J3 140 °/s (2.44 rad/s)

J4 330 °/s (5.76 rad/s)

J5 330 °/s (5.76 rad/s)

J6 450 °/s (7.85 rad/s)


Robot Motion Range:

J1 ±165°

J2 +162° - 78°

J3 +285° - 170.5°

J4 ±200°

J5 ±140°

J6 ±450°


Applications:

Arc Welding Robots

Assembly Robots

Grinding Robots

Machine Tending Robots

Material Handling Robots

Pick and Place Robots


EQUIPPED WITH:

FANUC RJ3 CONTROLLER

FANUC ROBOT CONNECTION CABLES

FANUC TEACH PENDANT


FOB TRUCK, 205 GRAHAM ROAD, IMLAY CITY, MI 48444

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.

Specifications

ManufacturerFANUC
ModelFANUC M16i
Year2002
ConditionUsed
Serial NumberF700379
Stock Number104782
Axes6
Payload16kg
H-Reach1605mm
Repeatability±0.08mm
Robot Mass270kg
StructureArticulated
MountingFloor, Inverted, Angle
ManufacturerFANUC
ModelFANUC M16i
