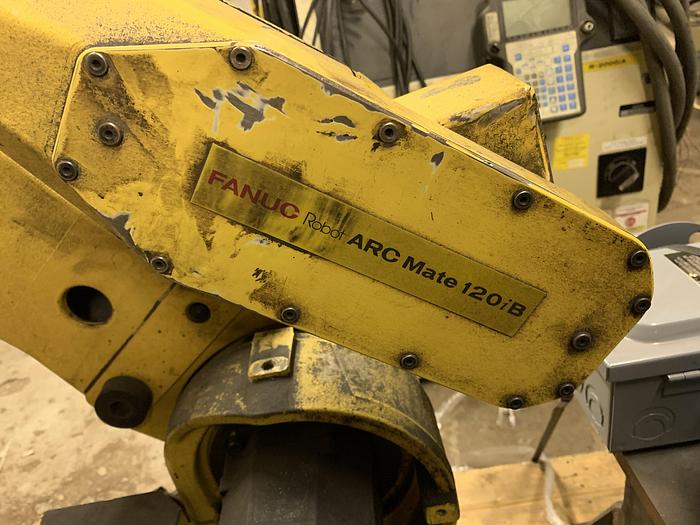

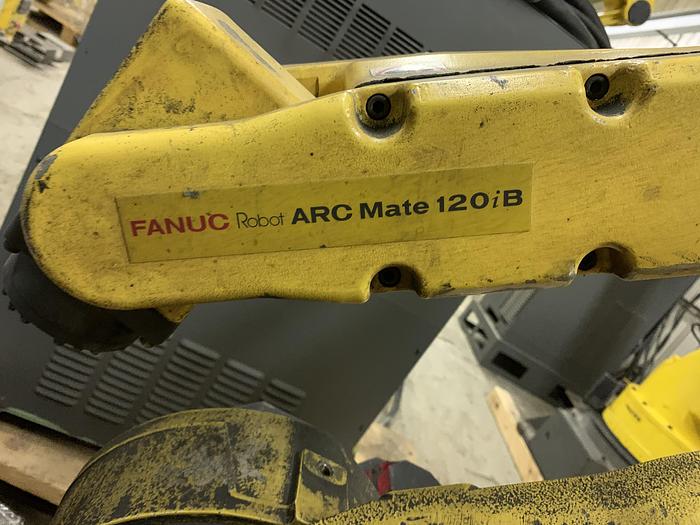

FANUC ARCMATE 120iB 6 AXIS CNC ROBOT WITH RJ3iB

$12,500 (USD)

Almont, MI

orCall 586-752-0090

Description

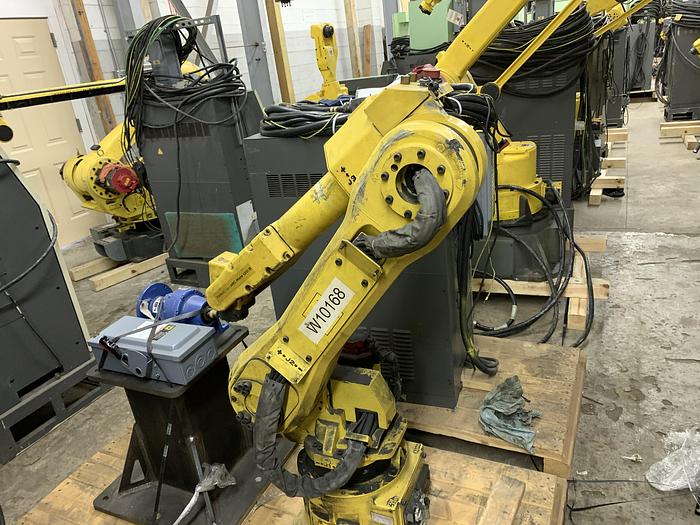

1-USED FANUC ARCMATE 120iB 6 AXIS CNC ROBOT WITH RJ3iB CONTROLLER

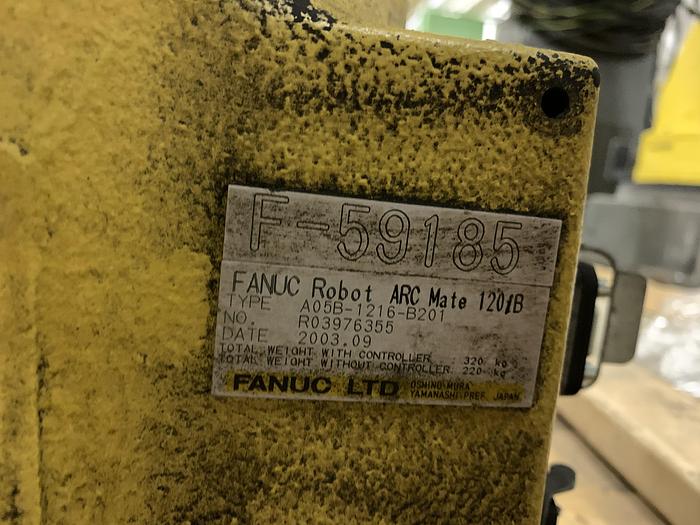

SERIAL NUMBER F59185
DATE OF MFG. 09/2003
STK#103914
=======================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

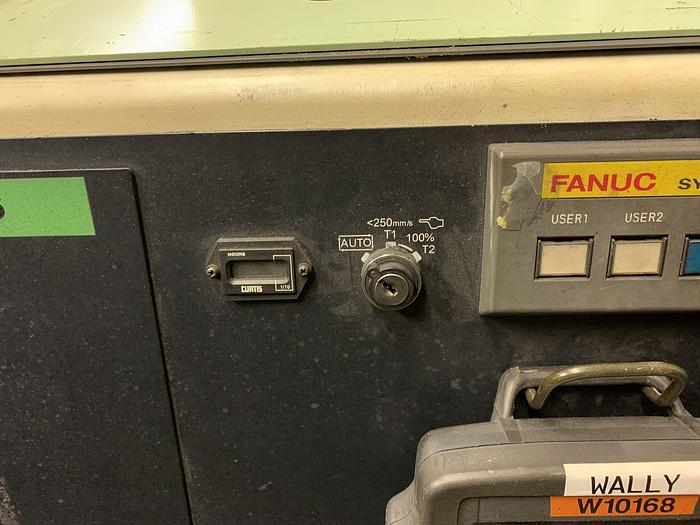

HOURS SHOWN ON METER 5,947.1

Robot Specifications:
Axes: 6
Payload: 20.00kg
H-Reach: 1667.00mm
Repeatability: ±0.0800mm
Robot Mass: 220.00kg
Structure: Articulated
Mounting: Floor, Inverted, Angle

Robot Motion Speed:
J1 165 °/s (2.88 rad/s)
J2 165 °/s (2.88 rad/s)
J3 175 °/s (3.05 rad/s)
J4 350 °/s (6.11 rad/s)
J5 340 °/s (5.93 rad/s)
J6 520 °/s (9.08 rad/s)

Robot Motion Range:
J1 ±170°
J2 +160° - 90°
J3 +290° - 170°
J4 ±200°
J5 ±140°
J6 ±450°

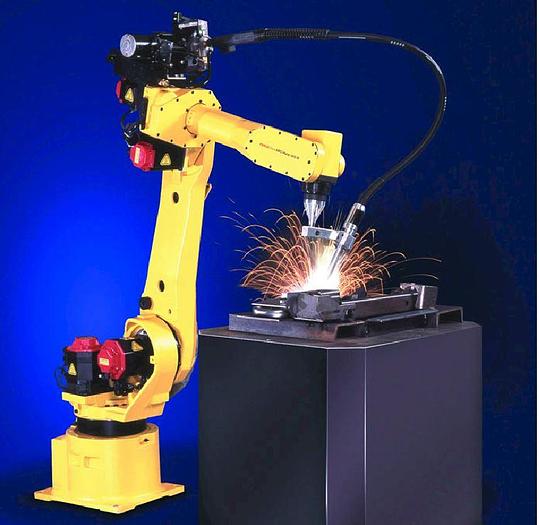

For high-speed welding and cutting processes, the FANUC ARC Mate 120iB is a six-axis robotic arm that is servo-driven. The FANUC 120iB RJ3iB welding robot provides accurate and consistent path performance based on its simple and reliable construction.

In addition to high-speed cutting and welding, the ARC Mate 120iB is capable of performing a variety of welding applications, including MIG welding, TIG welding, Plasma welding and Plasma cutting.

The 120iB is the best in its class for reach versus stroke ratio and fastest motion speeds. The exceptionally fast wrist axes reduce air cut times, and the ARC Mate has an extremely large work envelopes and complex tooling.

Robot Applications:
MIG Welding Robots
Oxyacetylene Welding Robots
Plasma Cutting Robots
Plasma Welding Robots
Submerged Arc Welding Robots
TIG Welding Robots
MAG Welding Robots
Welding Automation Robots
Arc Welding Robots

EQUIPPED WITH:

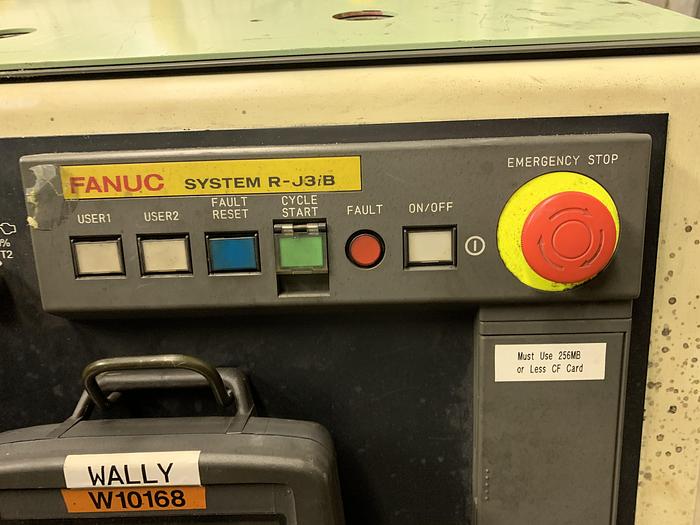

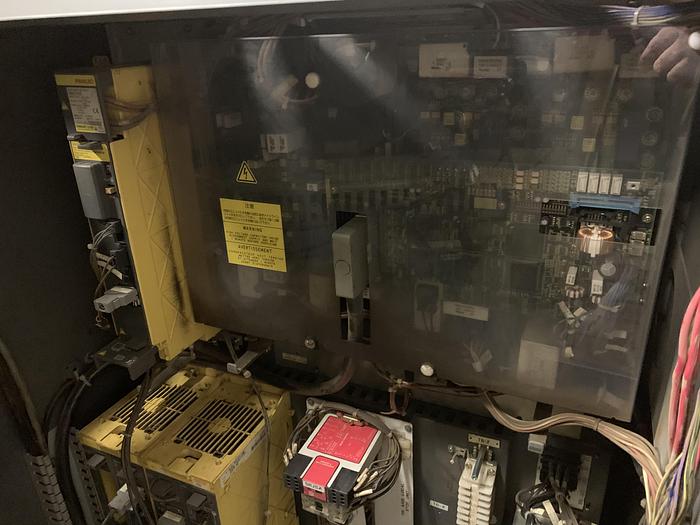

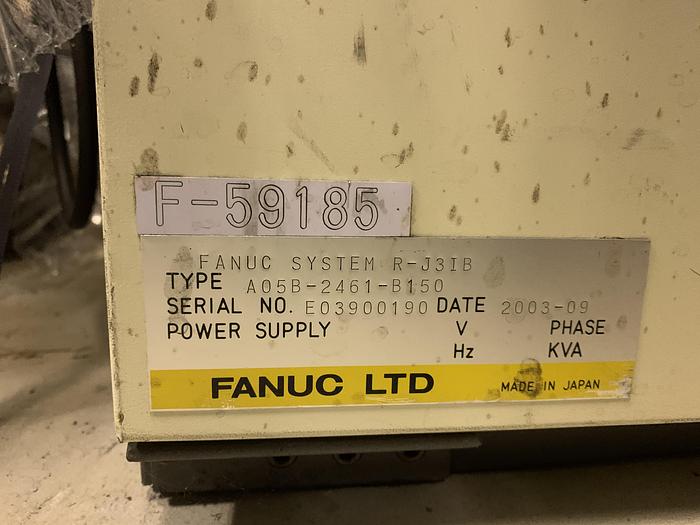

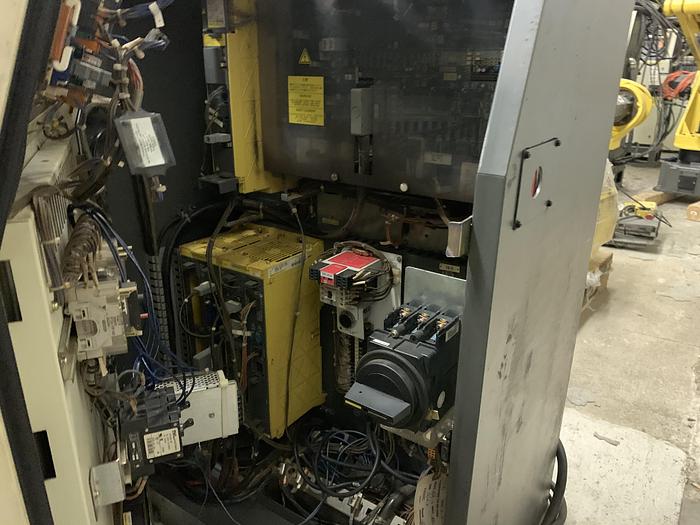

FANUC RJ3iB CONTROLLER
CABLES
TEACH PENDANT

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND
BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS
AND CONDITIONS.

RAB INDUSTRIES, INC.

Specifications

ManufacturerFANUC
ModelARCMATE 120iB
Year2003
ConditionUsed
Serial NumberF59185
Stock Number103914
