YASKAWA MOTOMAN MOTOMAN ARC WORLD 6000 MIG WELDING CELL WITH EA1900N ROBOT #104846

1-USED MOTOMAN ARC WORLD 6000 MIG WELDING CELL WITH MOTOMAN EA1900N ROBOT

AND NX 100 CONTROLLER

SERIAL NUMBER S7Q753-1-2

DATE OF MFG. 09/2007

STK#104846

==================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:

1-MOTOMAN ARC WORLD 6000 MIG ROBOTIC MIG WELDING CELL WITH

MOTOMAN EA1900N ROBOT AND NX100 CONTROLLER, FRONIUS WELDER,

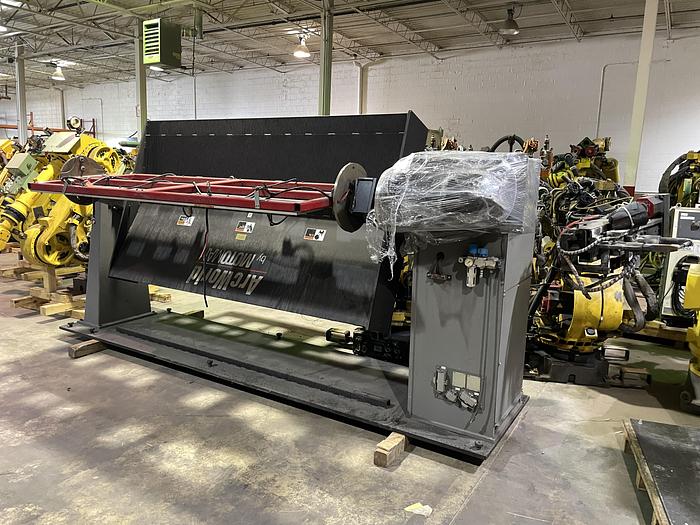

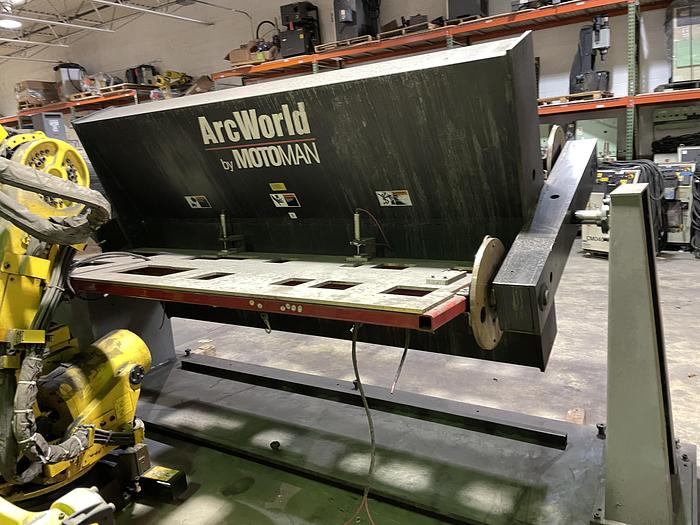

FRONIUS WIRE FEEDER, AND FERRIS WHEEL STYLE DUAL TRUNNION POSITIONER.

THE CAPACITY OF EACH SIDE OF THE FERRIS WHEEL TRUNION MEASURING EXISTING

FIXTURIING:

BETWEEN CENTERS EACH SIDE 100"

SWING 37 1/12"

ABOUT THE ROBOT:

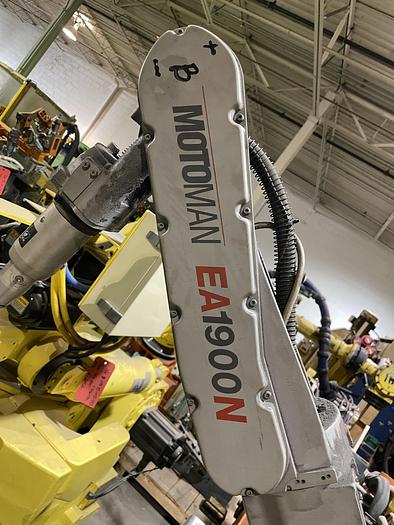

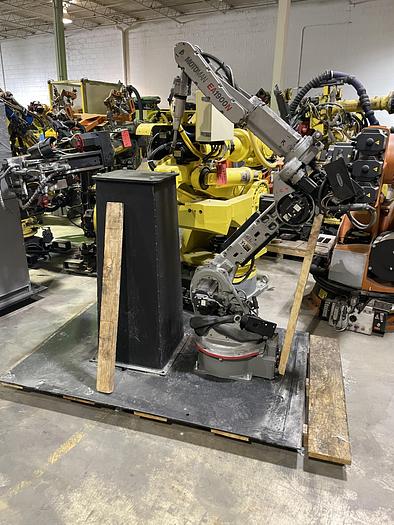

The Motoman EA1900N is a high-performance welding robot that features an internal cable design that was patented to eliminate cable flip. The standard EA1900N NX100 is floor mounted. The EA1900N from Motoman offers high quality welding with a sturdy arc and optimum torch positioning. There is also a reduction in programming time, which allows manufacturers to integrate the robot into their production even quicker. And with its slim design, the EA1900N can be set up without taking up a lot of space. The used EA1900N NX100 robot uses the NX100 controller which is capable of controlling multiple robots. The use of this controller reduces the cost of integration and eliminates the possibility of robot collisions.

Robot Specifications:

Axes: 6

Payload: 3kg

H-Reach: 1904mm

Repeatability: ±0.08mm

Robot Mass: 280kg

Structure: Articulated

Mounting: Floor

Robot Motion Speed:

J1 170 °/s (2.97 rad/s)

J2 170 °/s (2.97 rad/s)

J3 175 °/s (3.05 rad/s)

J4 340 °/s (5.93 rad/s)

J5 340 °/s (5.93 rad/s)

J6 520 °/s (9.08 rad/s)

Robot Motion Range:

J1 ±180°

J2 +155° - 110°

J3 +255° - 165°

J4 ±150°

J5 +180° - 45°

J6 ±200°

Applications:

Arc Welding Robots

MAG Welding Robots

Orbital Welding Robots

Oxyacetylene Welding Robots

Plasma Welding Robots

Submerged Arc Welding Robots

EQUIPPED WITH:

MOTOMAN NX100 CONTROLLER

MOTOMAN TEACH PENDANT WITH BRAND NEW OVERLAY

MOTOMAN ROBOT CONNECTION CABLES

MOTOMAN POSITIONER CONNECTION CABLES

FRONIUS WELDING POWER SUPPLY

FRONIUS WIRE FEEDER

MIG WELD GUN (ATTACHED TO ROBOT)

TREGASKISS REAMER

ROTARY CONTROL/OPERATOR STATION

RISER FOR OPTIONAL MOUNTING OF ROBOT

ASSORTED MANUALS FOR NX100 CONTROLLER AND OTHER EQUIPMENT

FOB TRUCK, 300 EAST SECOND STREET, IMLAY CITY, MI 48444 THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.
