BRAND NEW KAWASAKI MX700N WITH CONTROLLER, TEACH PENDANT, CABLES, AND 14 MONTH WARRANTY

1- BRAND NEW KAWASAKI MODEL MX700N

WITH F04 CONTROLLER, TEACH PENDANT, CABLES,

STANDARD 14 MONTH WARRANTY

STK#104933

 ======================

SPECIFICATIONS OBTAINED FROM OEM SOURCE.

ROBOT SPECIFICATIONS:

PAYLOAD: 700KG

MAX. REACH: 2,540MM

ROBOT CATEGORY: ARTICULATED 6 AXIS ROBOT

MOUNTING: FLOOR

POSITIONAL REPEATABILITY: ±0.1MM

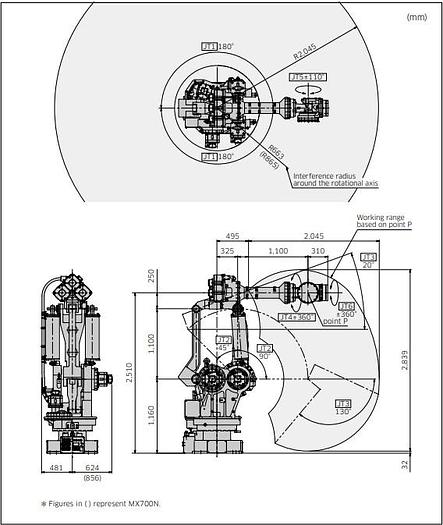

ROBOT MOTION RANGE (DEGREES):

ARM ROTATION (JT1): ±180

ARM OUT-IN (JT2): +90 - −45

ARM UP-DOWN (JT3): +20 - −130

WRIST SWIVEL (JT4): ±360

WRIST BEND (JT5): ±110

WRIST TWIST (JT6): ±360

MAXIMUM ROBOT MOTION SPEEDS (DEGREES PER SECOND):

ARM ROTATION (JT1): 65

ARM OUT-IN (JT2): 50

ARM UP-DOWN (JT3): 45

WRIST SWIVEL (JT4): 50

WRIST BEND (JT5): 50

WRIST TWIST (JT6): 95

ALLOWABLE ROBOT WRIST MOMENT (N X M)

WRIST SWIVEL (JT4): 5,488

WRIST BEND (JT5): 5,488

WRIST TWIST (JT6): 2,744

ALLOWABLE ROBOT WRIST MOMENT OF INERTIA (KG X M SQUARED)

WRIST SWIVEL (JT4): 600

WRIST BEND (JT5): 600

WRIST TWIST (JT6): 388

ROBOT MASS (KG)

2,860

EQUIPPED WITH:

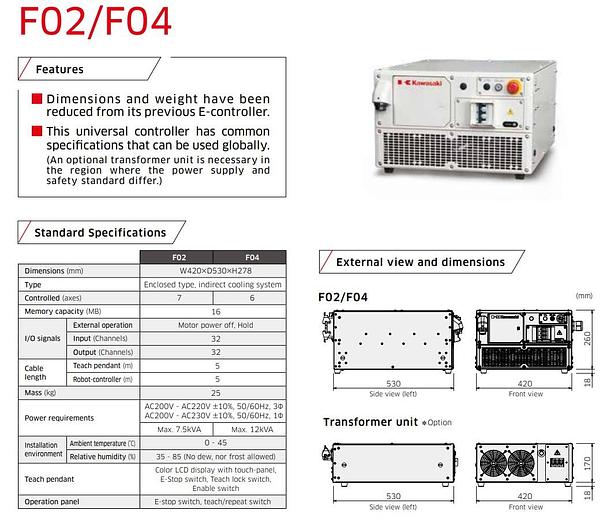

KAWASAKI ROBOTICS F04 CONTROLLER

CABLES

TEACH PENDANT

STANDARD 14 MONTH WARRANTY

Description:

Innovative, High Payload, High Wrist Torque Robot

The MX700N robot has a maximum payload capacity of 700 kg and reach of 2,540 mm with one of the highest available wrist torque in the industry, which provides the ability to significantly offset heavy payloads from the tool mounting flange. Along with powerful motors, Kawasaki's original link design for JT3 (arm up-down) gives the robot the power to lift heavy loads without the use of bulky and limiting counterweights, maximizing the robot’s motion range and allowing for a compact footprint.

======================================
