BRAND NEW KAWASAKI CP700L PALLETIZING ROBOT WITH E03 CONTROLLER, TEACH PENDANT, CABLES, 14 MONTH WARRANTY

BRAND NEW KAWASAKI CP700L PALLETIZING ROBOT WITH E03 CONTROLLER, TEACH PENDANT, CABLES, 14 MONTH WARRANTY

Contact us for price

Location:Imlay City, MI

Description

1- BRAND NEW KAWASAKI MODEL CP700L PALLETIZER ROBOT

WITH E03 CONTROLLER, TEACH PENDANT, CABLES,

STANDARD 14 MONTH WARRANTY

STK#104937

 ======================

SPECIFICATIONS OBTAINED FROM OEM SOURCE.


ROBOT SPECIFICATIONS:


PAYLOAD: 700KG

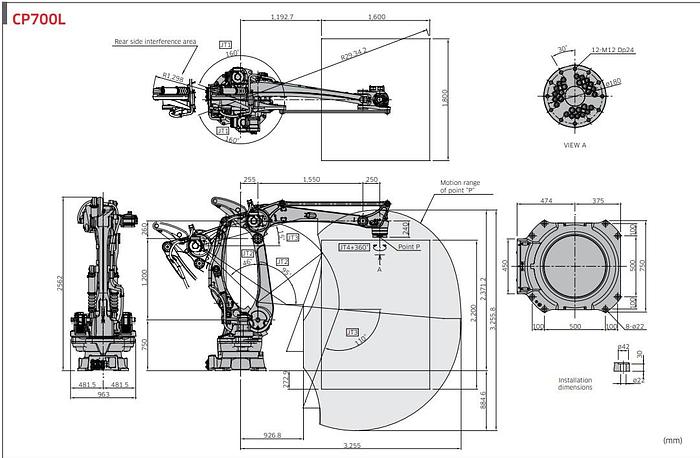

MAX. REACH: 3,255MM

ROBOT CATEGORY: ARTICULATED 4 AXIS ROBOT

MOUNTING: FLOOR

POSITIONAL REPEATABILITY: ±0.5MM


WORKING AREA (MM):

WIDTH: 1,800.00

DEPTH: 1,600.00

HEIGHT: 2,200.00


ROBOT MOTION RANGE (DEGREES):

ARM ROTATION (JT1): ±160

ARM OUT-IN (JT2): +95 - –46

ARM UP-DOWN (JT3): +15 - –110

WRIST SWIVEL (JT4): ±360


MAXIMUM ROBOT MOTION SPEEDS (DEGREES PER SECOND):

ARM ROTATION (JT1): 75

ARM OUT-IN (JT2): 65

ARM UP-DOWN (JT3): 65

WRIST SWIVEL (JT4): 170


MOMENT OF INERTIA (KG X M SQUARED)

500


MAXIMUM CYCLES PER HOUR

900


ROBOT MASS (KG)

1,650


EQUIPPED WITH:

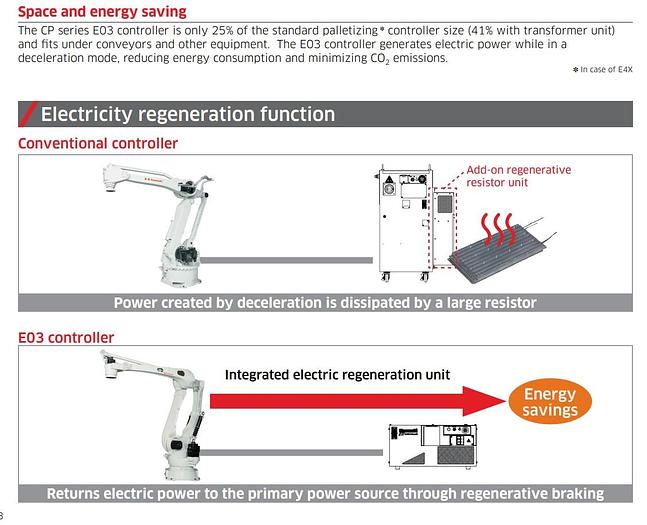

KAWASAKI ROBOTICS E03 CONTROLLER

CABLES

TEACH PENDANT

STANDARD 14 MONTH WARRANTY


In today’s highly competitive marketplace, meeting the demand for just-in-time deliveries, flexible packaging, the freshest products, or the highest production line efficiencies can be crucial to a company’s success. Efforts to meet these demands have led to the development of automation systems for the end-of-line and distribution processes of palletizing and depalletizing.


Kawasaki’s robotic palletizing solutions provide the pallet pattern flexibility, tooling flexibility, and cycle times needed to deal with multi-variety and small-batch production, and reduce process change costs. Kawasaki Robotics offers two lines of palletizing robots with a wide range of payload options to suit most needs, including the RD080N robot with a maximum payload of 80 kg, and CP180L/300L/500L/700L robots with maximum payloads of 180/300/500/700 kg. Each has industry leading reach, speed and quality to deliver high-performance automation technology for most any palletizing application.


Kawasaki can provide a solution to give your production line the palletizing flexibility and product rate it needs to compete in today's economy.

====================================

R.A.B INDUSTRIES, INC.




Specifications

ManufacturerKAWASAKI
ModelCP700L
ConditionNew
Stock Number104937
PAYLOAD700KG
MAX. REACH3,255MM
ROBOT CATEGORYARTICULATED 4 AXIS ROBOT
MOUNTINGFLOOR
POSITIONAL REPEATABILITY±0.5MM
