BRAND NEW KAWASAKI BX200L ROBOT WITH E02 CONTROLLER, TEACH PENDANT, CABLES, 14 MONTH WARRANTY

BRAND NEW KAWASAKI BX200L ROBOT WITH E02 CONTROLLER, TEACH PENDANT, CABLES, 14 MONTH WARRANTY

Contact us for price

Location:Imlay City, MI

Description

1- BRAND NEW KAWASAKI MODEL BX200L

WITH E02 CONTROLLER, TEACH PENDANT, CABLES,

STANDARD 14 MONTH WARRANTY

STK#104939

 ======================

SPECIFICATIONS OBTAINED FROM OEM SOURCE

AND DEEMED RELIABLE.


ROBOT SPECIFICATIONS:


PAYLOAD: 200KG

MAX. REACH: 2,597 MM

ROBOT CATEGORY: LARGE GENERAL PURPOSE ROBOTS (100-300KG PAYLOAD)

MOUNTING: FLOOR

ROBOT SERIES: BX SERIES

POSITIONAL REPEATABILITY: ±0.06MM


ROBOT MOTION RANGE (DEGREES):

ARM ROTATION (JT1): ±160

ARM OUT-IN (JT2): +76 - −60

ARM UP-DOWN (JT3): +90 - −75

WRIST SWIVEL (JT4): ±210

WRIST BEND (JT5): ±125

WRIST TWIST (JT6): ±210


MAXIMUM ROBOT MOTION SPEEDS (DEGREES PER SECOND):

ARM ROTATION (JT1): 105

ARM OUT-IN (JT2): 90

ARM UP-DOWN (JT3): 100

WRIST SWIVEL (JT4): 120

WRIST BEND (JT5): 120

WRIST TWIST (JT6): 200


ROBOT WRIST MOMENT (N X M)

WRIST SWIVEL (JT4): 1,334

WRIST BEND (JT5): 1,334

WRIST TWIST (JT6): 588


ROBOT WRIST MOMENT OF INERTIA (KG X M SQUARED)

WRIST SWIVEL (JT4): 200

WRIST BEND (JT5): 200

WRIST TWIST (JT6): 155


ROBOT MASS (KG)

890


DEGREE OF PROTECTION

ROBOT WRIST: IP67

BASE AXES: IP54


EQUIPPED WITH:

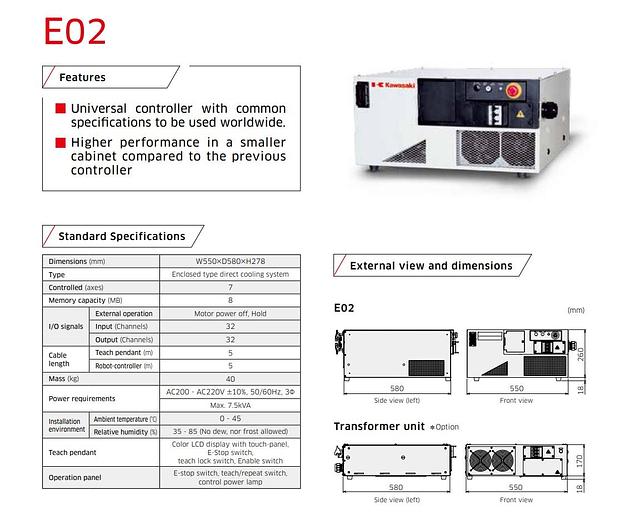

KAWASAKI ROBOTICS E02 CONTROLLER

CABLES

TEACH PENDANT

STANDARD 14 MONTH WARRANTY


Description:


Kawasaki's large general-purpose robots (100-300kg payload) are used in diverse industries, such as the automobile, aerospace, machinery, metal working, electric, electronics and food industries. With high versatility, they can be used for a wide range of applications including assembling, handling and spot welding.


The BX/BT series robots are equipped with hollow wrists and arms.


Flexible, Heavy Duty Robot

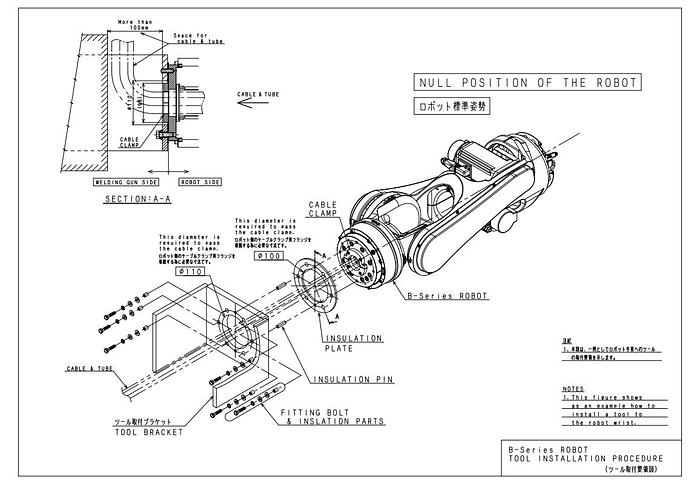

The BX200L features a hollow wrist for housing cables and hoses. The robust, yet lightweight arm design provides functionality, flexibility and efficiency for maximum spot welding effectiveness and multiple-purpose usage.


Specifications

ManufacturerKAWASAKI
ModelBX200L
ConditionNew
Stock Number104939
PAYLOAD200KG
MAX. REACH2,597 MM
MOUNTINGFLOOR
ROBOT SERIESBX SERIES
POSITIONAL REPEATABILITY±0.06MM
