BRAND NEW KAWASAKI RS015X WITH F02 CONTROLLER, TEACH PENDANT, CABLES, AND 14 MONTH WARRANTY

BRAND NEW KAWASAKI RS015X WITH F02 CONTROLLER, TEACH PENDANT, CABLES, AND 14 MONTH WARRANTY

Contact us for price

Location:Imlay City, MI

Description

1- BRAND NEW KAWASAKI RS015X ROBOT

WITH F02 CONTROLLER, TEACH PENDANT, CABLES,

STANDARD 14 MONTH WARRANTY

STK#104980

 ======================

SPECIFICATIONS OBTAINED FROM OEM SOURCE.


ROBOT SPECIFICATIONS:


PAYLOAD: 15KG

MAX. REACH: 3,150MM

ROBOT CATEGORY: GENERAL PURPOSE ROBOTS (3-80KG PAYLOAD)

MOUNTING: FLOOR, CEILING

ROBOT SERIES: R SERIES

POSITIONAL REPEATABILITY: 0.06MM


APPLICATIONS: ASSEMBLY, MATERIAL HANDLING, MACHINE TENDING,

SEALING / DISPENSING, MATERIAL REMOVAL, WELDING

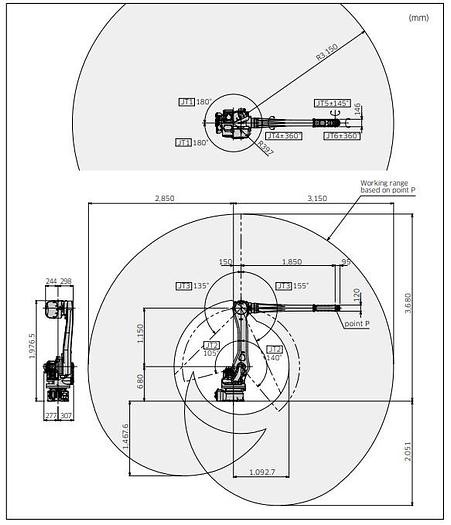

ROBOT MOTION RANGE (DEGREES):

ARM ROTATION (JT1): ±180

ARM OUT-IN (JT2): +140 - –105

ARM UP-DOWN (JT3): +135 - –155

WRIST SWIVEL (JT4): ±360

WRIST BEND (JT5): ±145

WRIST TWIST (JT6): ±360


MAXIMUM ROBOT MOTION SPEEDS (DEGREES PER SECOND):

ARM ROTATION (JT1): 180

ARM OUT-IN (JT2): 180

ARM UP-DOWN (JT3): 200

WRIST SWIVEL (JT4): 410

WRIST BEND (JT5): 360

WRIST TWIST (JT6): 610


ROBOT WRIST MOMENT (N X M)

WRIST SWIVEL (JT4): 34

WRIST BEND (JT5): 34

WRIST TWIST (JT6): 22


ROBOT WRIST MOMENT OF INERTIA (KG X M SQUARED)

WRIST SWIVEL (JT4): 0.8

WRIST BEND (JT5): 0.8

WRIST TWIST (JT6): 0.25


ROBOT MASS (KG)

545


DEGREE OF PROTECTION

ROBOT WRIST: IP67 (OPTIONAL), IP65 (STANDARD)

BASE AXES: IP65

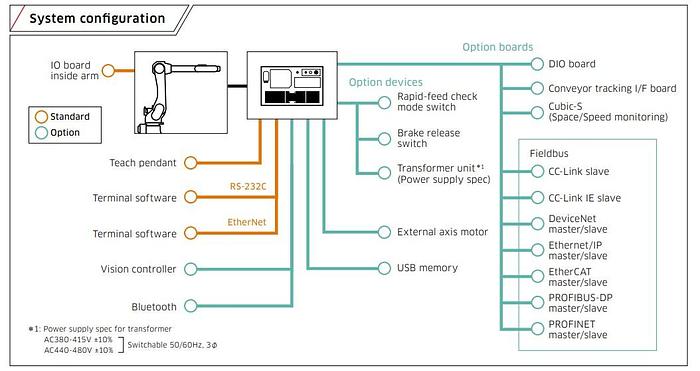

EQUIPPED WITH:


KAWASAKI ROBOTICS F02 CONTROLLER

CABLES

TEACH PENDANT

STANDARD 14 MONTH WARRANTY


DESCRIPTION:

Kawasaki’s R series robots are setting the benchmark for all small to medium duty

industrial robots. The compact design along with industry leading speed, reach, and work

range make the R series robots ideal for a wide range of applications in a multitude of

diverse industries.


Features:

High-speed operation

The light weight of the R series arm together with high output, high revolution motors provide industry leading

acceleration and high-speed operation. The acceleration rate automatically adjusts to suit the payload and robot

posture to deliver optimum performance and the shortest cycle times.


High torque:

High output motors combined with a rigid arm construction deliver superior wrist torque and load capacity. This

high torque rating lets system designers select from a broad range of end-of-arm tooling, as well as provides more

­flexibility when working with complex workpieces.


Wide work range:

In addition to extending the robot’s maximum reach, the rotation range of each axis has also been increased. The

extended motion range translates to a larger usable work area with minimal dead space and greater fl­exibility.

Environmental protection


The R series incorporates a double seal construction on all axes and water-resistant electrical connections, offering

an IP67 classification for the wrist and IP65 for the remaining axes. If a washdown arm is required, the entire

robot can be provided as IP67. (Except for the RS003N, RS005N and RS005L)


Integrated features:

Built-in pneumatic lines and internal wiring for sensors and solenoid valves are standard. Mounting pads and taps

are provided to allow the easy installation of additional cabling, tubing or equipment

=======================================


R.A.B. INDUSTRIES, INC.


Specifications

ManufacturerKAWASAKI
ModelRS015X
ConditionNew
Stock Number104980
PAYLOAD15KG
MAX. REACH3,150MM
MOUNTINGFLOOR, CEILING
ROBOT SERIESR SERIES
POSITIONAL REPEATABILITY0.06MM
