BRAND NEW KAWASAKI BX200X LONG REACH HIGH PAYLOAD ROBOT WITH CONTROLLER, TEACH PENDANT, CABLES, 14 MONTH WARRANTY

BRAND NEW KAWASAKI BX200X LONG REACH HIGH PAYLOAD ROBOT WITH CONTROLLER, TEACH PENDANT, CABLES, 14 MONTH WARRANTY

Contact us for price

Location:Imlay City, MI

Description

1- BRAND NEW KAWASAKI MODEL BX200X

WITH E02 OR F02 CONTROLLER, TEACH PENDANT, CABLES,

STANDARD 14 MONTH WARRANTY

STK#105007

 ======================

SPECIFICATIONS OBTAINED FROM OEM SOURCE

AND DEEMED RELIABLE.

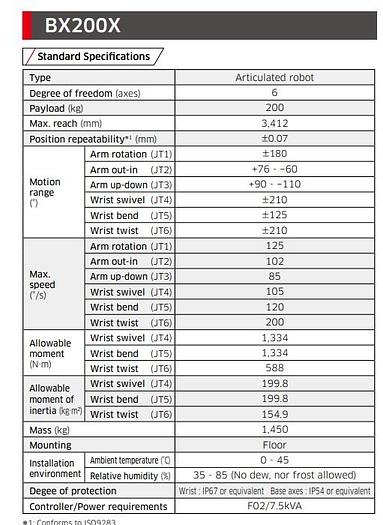

ROBOT SPECIFICATIONS:


PAYLOAD: 200KG

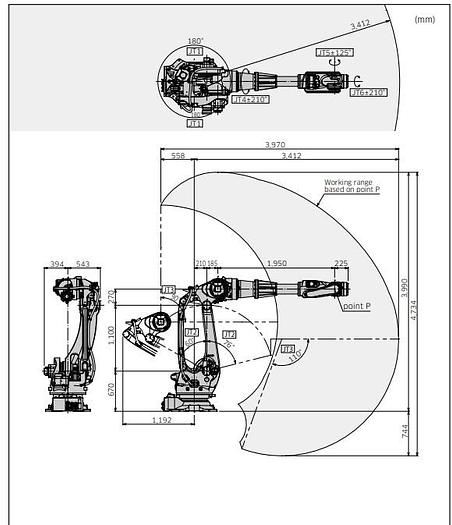

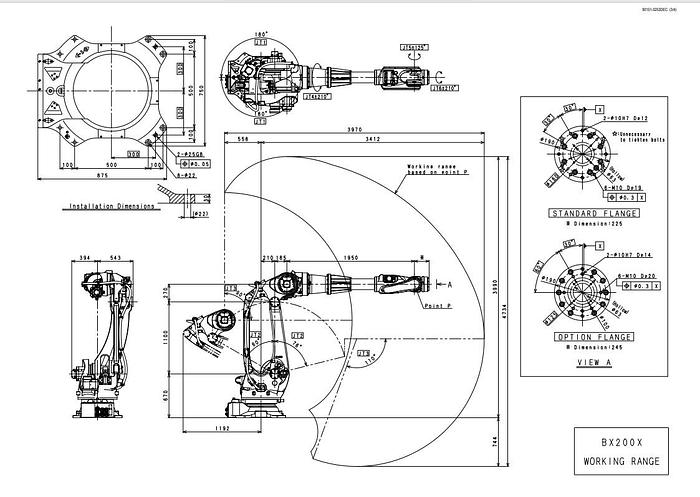

MAX. REACH: 3,412 MM

ROBOT CATEGORY: LARGE GENERAL PURPOSE ROBOTS (100-300KG PAYLOAD)

MOUNTING: FLOOR

ROBOT SERIES: BX/BT SERIES

POSITIONAL REPEATABILITY: ±0.07MM


ROBOT MOTION RANGE (DEGREES):

ARM ROTATION (JT1): ±180

ARM OUT-IN (JT2): +76 - −60

ARM UP-DOWN (JT3): +90 - −110

WRIST SWIVEL (JT4): ±210

WRIST BEND (JT5): ±125

WRIST TWIST (JT6): ±210


MAXIMUM ROBOT MOTION SPEEDS (DEGREES PER SECOND):

ARM ROTATION (JT1): 125

ARM OUT-IN (JT2): 102

ARM UP-DOWN (JT3): 85

WRIST SWIVEL (JT4): 105

WRIST BEND (JT5): 120

WRIST TWIST (JT6): 200


ROBOT MAX WRIST TORQUE (N X M)

WRIST SWIVEL (JT4): 1,334

WRIST BEND (JT5): 1,334

WRIST TWIST (JT6): 588


ROBOT WRIST MOMENT OF INERTIA (KG X M SQUARED)

WRIST SWIVEL (JT4): 199.8

WRIST BEND (JT5): 199.8

WRIST TWIST (JT6): 159.9


ROBOT MASS (KG)

1,450 WITHOUT OPTIONS


DEGREE OF PROTECTION

ROBOT WRIST: IP67 EQUIVALENT

BASE AXES: IP54 EQUIVALENT

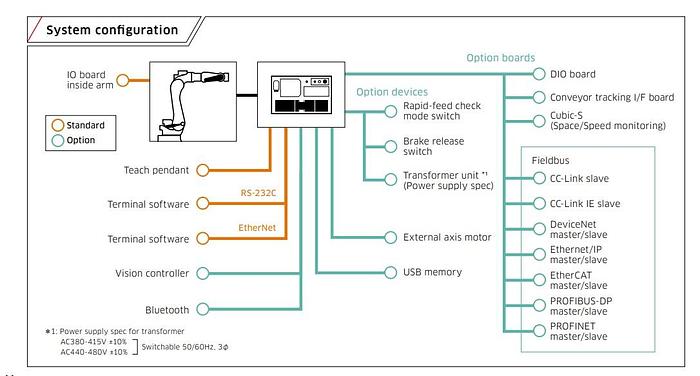

EQUIPPED WITH:


KAWASAKI ROBOTICS E02 CONTROLLER

OR KAWASAKI F02 CONTROLLER

CABLES

TEACH PENDANT

STANDARD 14 MONTH WARRANTY


Heavy Duty, Long Reach Robot

With the longest reach of the B series line, the BX200X high speed, high payload  robot is a powerful and flexible robot. It features a hollow wrist for housing cables and hoses, can accommodate large weld guns or tooling, and its small footprint makes it suitable for high-density installations.


RAB INDUSTRIES, INC.



Specifications

ManufacturerKAWASAKI
ModelBX200X
ConditionNew
Stock Number105007
PAYLOAD200KG
MAX. REACH3,412 MM
MOUNTINGFLOOR
ROBOT SERIESBX/BT SERIES
POSITIONAL REPEATABILITY±0.07MM
