FANUC LR MATE 200i WITH RJ3 CONTROLLER

$6,000 (USD)

Almont, MI

orCall 586-752-0090

Description

1-USED FANUC LR-MATE 200i WITH RJ3 CONTROLLER
ROBOT ARM SERIAL NUMBER F46062
DATE OF MFG. 04/2000
ROBOT CONTROLLER RJ3 SERIAL NUMBER F43935
STK#103616
=====================================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

HOURS ON METER 6,000

Robot Specifications
Axes: 6
Payload: 3.00kg
H-Reach: 700.00mm
Repeatability: ±0.0400mm
Robot Mass: 39.00kg
Structure: Articulated
Mounting: Floor, Inverted

Robot Motion Speed
J1 180 °/s (3.14 rad/s)
J2 180 °/s (3.14 rad/s)
J3 225 °/s (3.93 rad/s)
J4 400 °/s (6.98 rad/s)
J5 330 °/s (5.76 rad/s)
J6 480 °/s (8.38 rad/s)

Robot Motion Range
J1 ±160°
J2 +150° - 35°
J3 +165° - 150°
J4 ±190°
J5 ±120°
J6 ±360°

Robot Applications
Assembly Robots?
Dispensing Robots?
Material Handling Robots?
Material Removal Robots?
Part Transfer Robots?

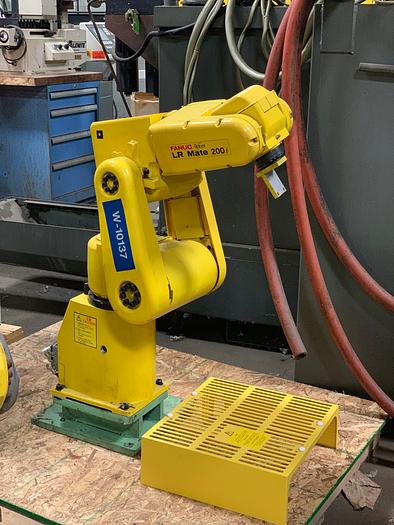

The FANUC LR Mate 200i is a compact six-axis robot ideal for a variety of manufacturing and system processes. The LR Mate 200 tabletop design allows for use in a wide range of commercial and industrial applications, while saving floor space. The LR Mate 200i is engineered to provide maximum flexibility in a compact design. Hollow joint construction of the LR Mate 200i encloses all cable routing to eliminate snagging and absolute serial encoders eliminate the need for calibration at power-up. Upright or invert mounting positions are possible with no robot modifications. The LR Mate 200i can use either RJ2 RJ3 controllers.

The FANUC LR Mate 200i has end effector connector built into the wrist, fail-safe brakes on axes 2 and 3, sealed bearings and drives, standard IP54 dust and liquid intrusion package. It also has an integral, internally mounted solenoid valve pack. Additionally, the 200i is capable of axis speeds up to 480 degrees per second.

EQUIPPED WITH:
ARM LR-MATE 200i

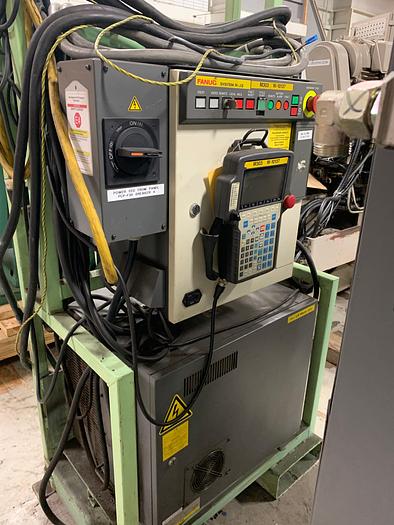

CONTROLLER RJ3
CABLES
TEACH PENDANT

FOB TRUCK, ALMONT, MI 48003

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND
BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS
AND CONDITIONS.

www.rabind.com
586-752-0090

Specifications

ManufacturerFANUC
ModelLR MATE 200i
Year2000
ConditionUsed
Serial NumberF46062
Stock Number103616
