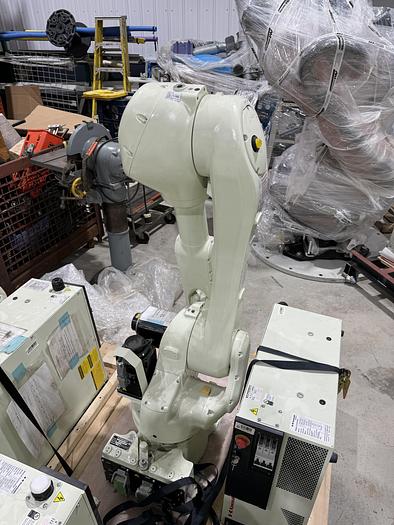

KAWASAKI RS020N 6 AXIS 20KG X 1725MM REACH ROBOTS WITH E01 CONTROLLERS AND CUBIC S

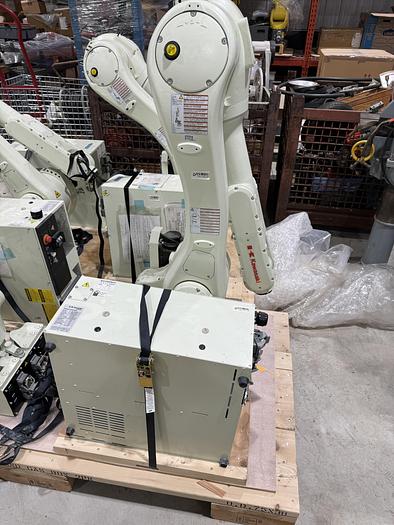

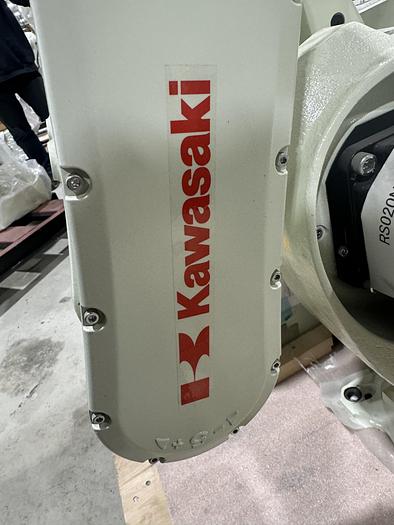

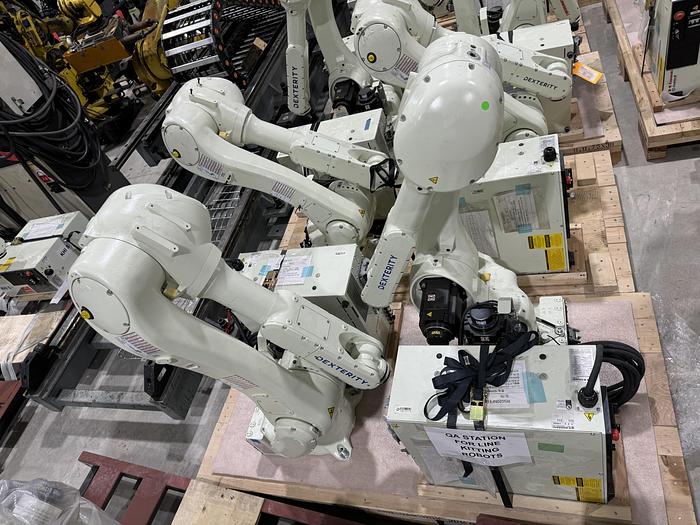

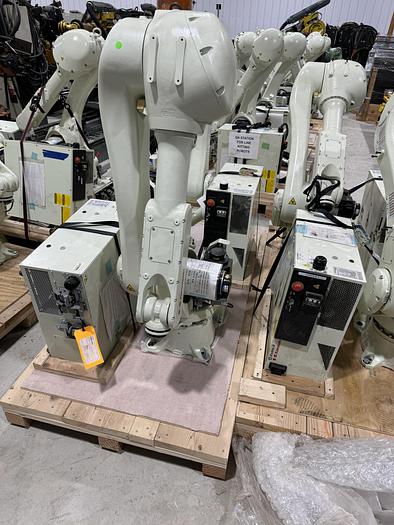

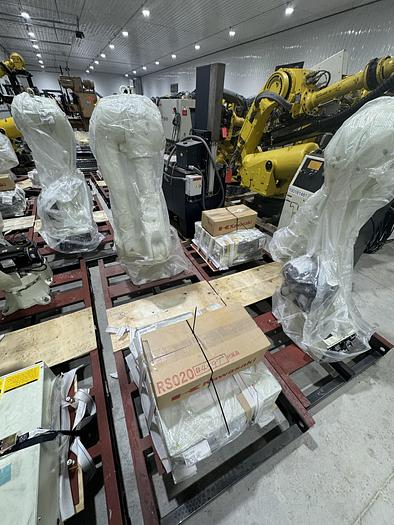

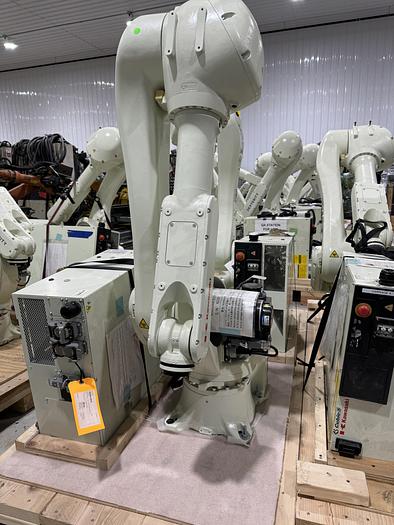

1- LIGHTLY USED KAWASAKI MODEL RS020N 6 AXIS GENERAL PURPOSE ROBOTS

WITH E01 CONTROLLERS & CUBIC S, TEACH PENDANTS, CABLES.

APPLICATIONS: MATERIAL HANDLING, MACHINE LOAD & UNLOAD, DEBURRING, MIG & TIG WELDING,

LASER CUTTING, PLASTIC INJECTION MOLDING, WATER JET CUTTING THESE ARE UNIVERSAL ROBOTS

IDEALLY SUITED FOR A LARGE VARIETY OF APPLICATIONS.

SERIAL NUMBERS AVAILABLE: CURRENTLY 52 UNITS AVAILABLE

DATE OF MANUFACTURE 2018-2021

STK#105169

 ======================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED

RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE

AND TO VERIFICATION BY BUYER:

SPECIFICATIONS OBTAINED FROM OEM SOURCE:

PAYLOAD: 20KG

MAX. REACH: 1,725MM

ROBOT CATEGORY: GENERAL PURPOSE ROBOTS (3-80KG PAYLOAD)

MOUNTING: FLOOR, CEILING

ROBOT SERIES: R SERIES

POSITIONAL REPEATABILITY: 0.04MM

ROBOT MOTION RANGE (DEGREES):

ARM ROTATION (JT1): ±180

ARM OUT-IN (JT2): +155 - –105

ARM UP-DOWN (JT3): +150 - –163

WRIST SWIVEL (JT4): ±270

WRIST BEND (JT5): ±145

WRIST TWIST (JT6): ±360

MAXIMUM ROBOT MOTION SPEEDS (DEGREES PER SECOND):

ARM ROTATION (JT1): 190

ARM OUT-IN (JT2): 205

ARM UP-DOWN (JT3): 210

WRIST SWIVEL (JT4): 400

WRIST BEND (JT5): 360

WRIST TWIST (JT6): 610

ROBOT WRIST MOMENT (N X M)

WRIST SWIVEL (JT4): 45

WRIST BEND (JT5): 45

WRIST TWIST (JT6): 29

ROBOT WRIST MOMENT OF INERTIA (KG X M SQUARED)

WRIST SWIVEL (JT4): 0.9

WRIST BEND (JT5): 0.9

WRIST TWIST (JT6): 0.3

ROBOT MAXIMUM SPEED (MM/S) 11,500

ROBOT MASS (KG) 230

DEGREE OF PROTECTION:

ROBOT WRIST: IP67 (OPTIONAL), IP65 (STANDARD)

BASE AXES: IP65

EQUIPPED WITH:

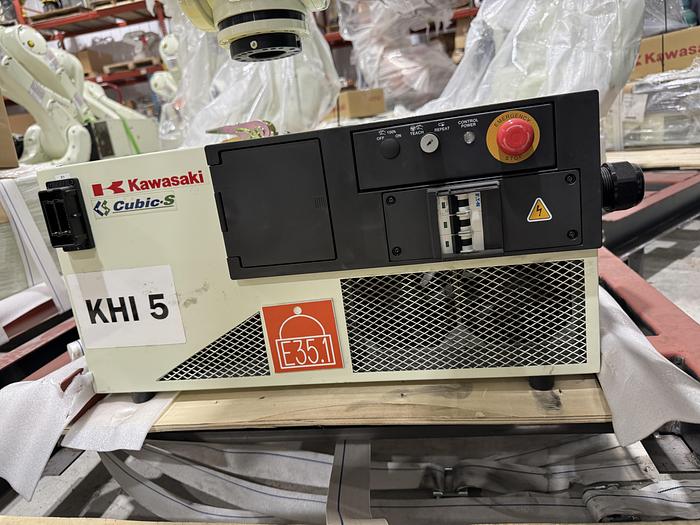

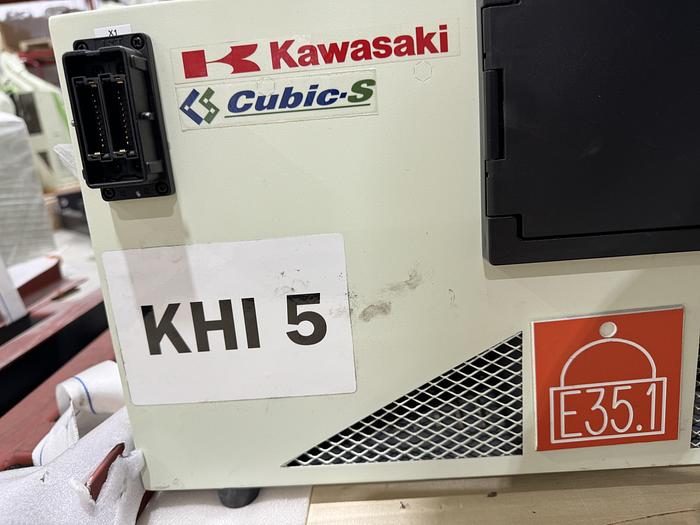

KAWASAKI ROBOTICS E01 CONTROLLER WITH CUBIC S

KAWASAKI ROBOT CONNECTION CABLES

KAWASAKI TEACH PENDANT

DESCRIPTION:

Kawasaki’s R series robots are setting the benchmark for all small to medium duty

industrial robots. The compact design along with industry leading speed, reach, and work

range make the R series robots ideal for a wide range of applications in a multitude of

diverse industries.

Features:

High-speed operation

The light weight of the R series arm together with high output, high revolution motors provide industry leading

acceleration and high-speed operation. The acceleration rate automatically adjusts to suit the payload and robot

posture to deliver optimum performance and the shortest cycle times.

High torque:

High output motors combined with a rigid arm construction deliver superior wrist torque and load capacity. This

high torque rating lets system designers select from a broad range of end-of-arm tooling, as well as provides more

­flexibility when working with complex workpieces.

Wide work range:

In addition to extending the robot’s maximum reach, the rotation range of each axis has also been increased. The

extended motion range translates to a larger usable work area with minimal dead space and greater fl­exibility.

Environmental protection

The R series incorporates a double seal construction on all axes and water-resistant electrical connections, offering

an IP67 classification for the wrist and IP65 for the remaining axes. If a washdown arm is required, the entire

robot can be provided as IP67. (Except for the RS003N, RS005N and RS005L)

Integrated features:

Built-in pneumatic lines and internal wiring for sensors and solenoid valves are standard. Mounting pads and taps

are provided to allow the easy installation of additional cabling, tubing or equipment

=======================================

R.A.B. INDUSTRIES IS HAPPY TO BE A NEW KAWASKI ROBOT DEALER. KAWASAKI ROBOTICS, USA

IS AN OUTSTANDING GLOBAL SUPPLIER OF HIGH QUALITY INNOVATIVE INDUSTRY LEADING INDUSTRIAL ROBOTS. AS SUCH WE ALSO STOCK USED KAWASAKI ROBOTS TO SERVE BOTH MARKETS NEW AND USED. WE CAN NOT ONLY SUPPLY YOU WITH A NEW ROBOT BUT ALSO PURCHASE YOUR USED ROBOT REGARDLESS OF THE MAKE OF THE ROBOT YOUR PLANNING TO REPLACE. PLEASE CALL AN RAB INDUSTRIES REPRESENATIVE. YOUR WELCOME TO COME TO OUR FACILITY TO COME SEE A NEW KAWASAKI ROBOT UNDER POWER FOR DEMO.

CALL AN R.A.B. INDUSTRIES, INC REPRESENATIVE (586)752-0090 FOR ALL YOUR ROBOTICS AND AUTOMATION NEEDS. RAB BUYS FANUC ROBOTS, KAWASAKI ROBOTS, ABB ROBOTS, MOTOMAN ROBOTS, KUKA ROBOTS, DENSO ROBOTS, UNIVERSAL ROBOTS AND ROBOT PARTS, ROBOT MRO, CONTROLLERS, CABLES, RVS, TEACH PENDANTS. WE ARE ROBOTIC AUTOMATION BULLS.

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND

BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS

AND CONDITIONS.

R.A.B. INDUSTRIES, INC.
