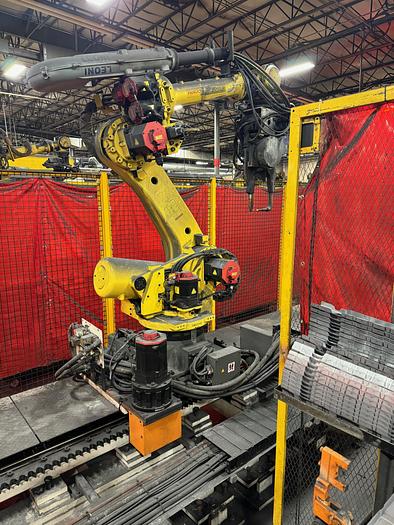

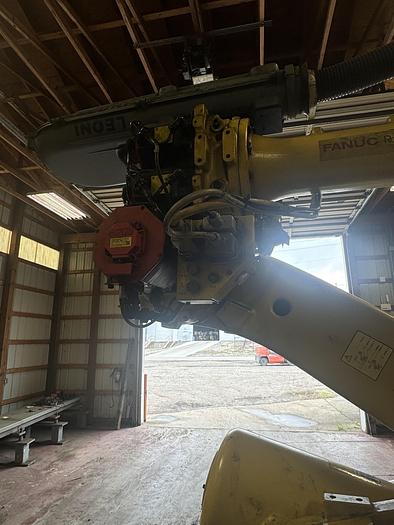

FANUC R-2000iC/165F ROBOT WITH R-30iB 7TH & 8 AXIS CONTROL ON 3 METER RTU WITH SERVO SPOT WELD GUN 2 UNITS AVAILABLE

FANUC R-2000iC/165F ROBOT WITH R-30iB 7TH & 8 AXIS CONTROL ON 3 METER RTU WITH SERVO SPOT WELD GUN 2 UNITS AVAILABLE

Contact us for price

Location:Imlay City, MI

Available quantity:2

Description

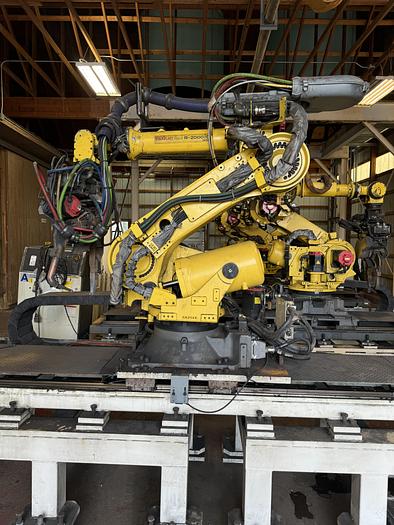

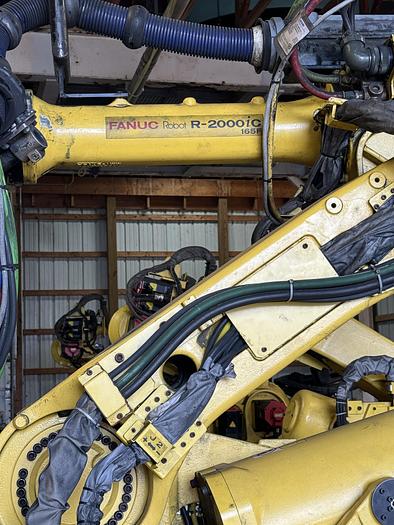

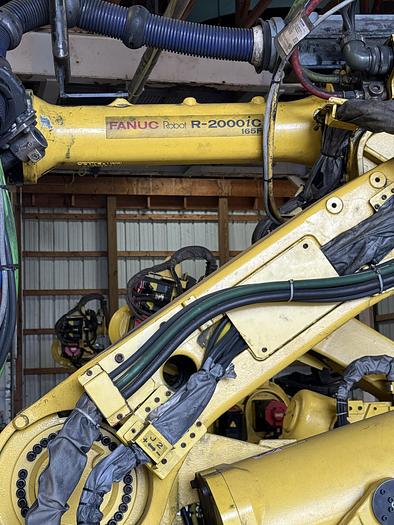

1-USED FANUC R-2000iC/165F 6 AXIS ROBOT WITH R-30iB CONTROLLER ON 3 METER RTU

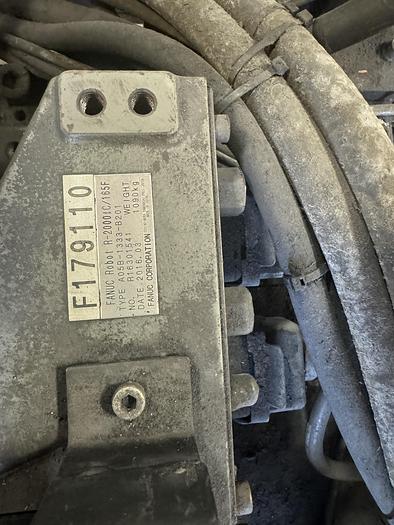

SERIAL NUMBER F179125

DATE OF MFG. 03/2016

STK#105193

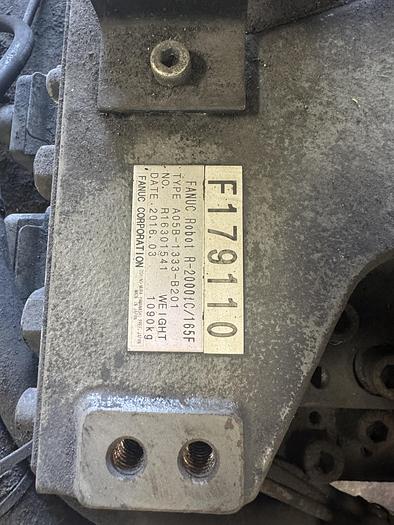

QUANTITY AVAILABLE 2 UNITS SERIAL NUMBERS F179125, F179110 NEW 2016

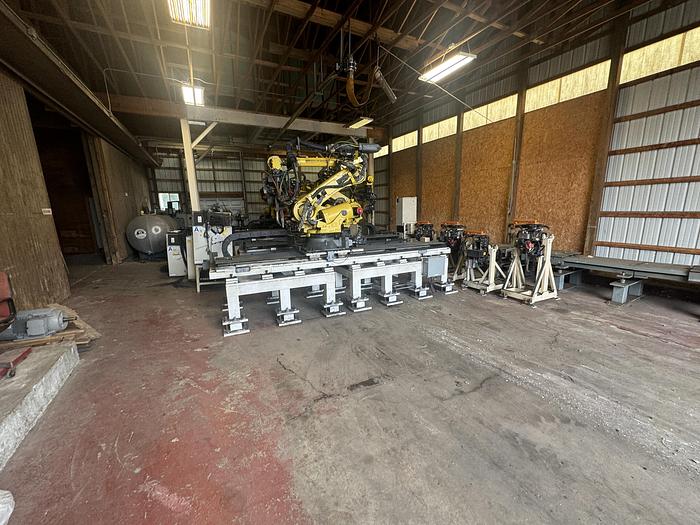

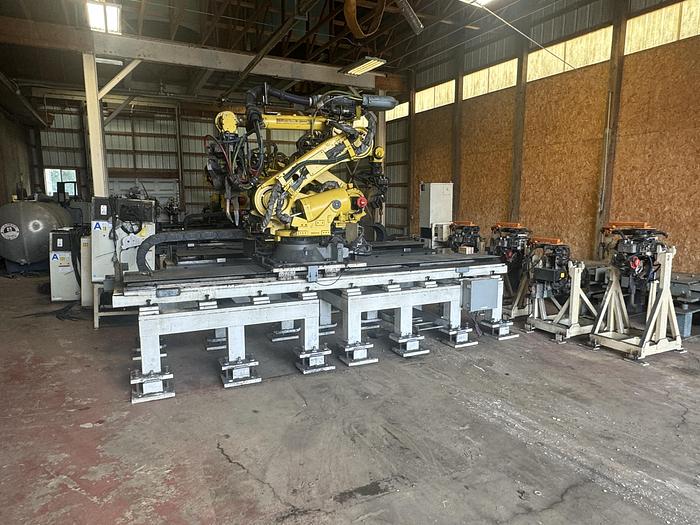

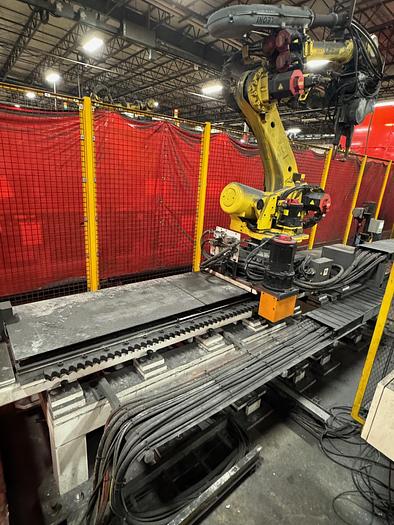

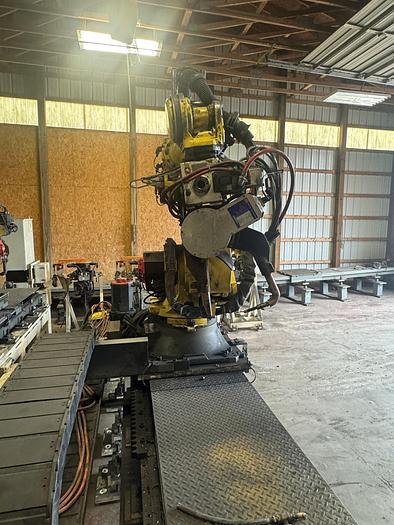

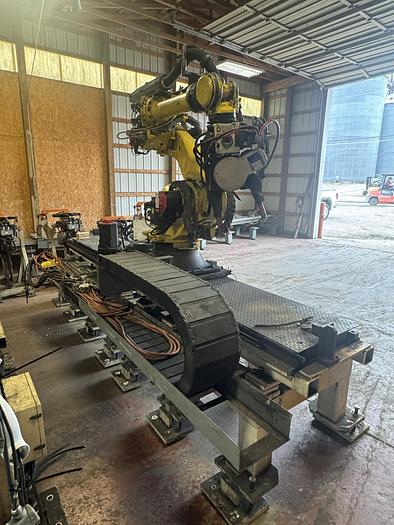

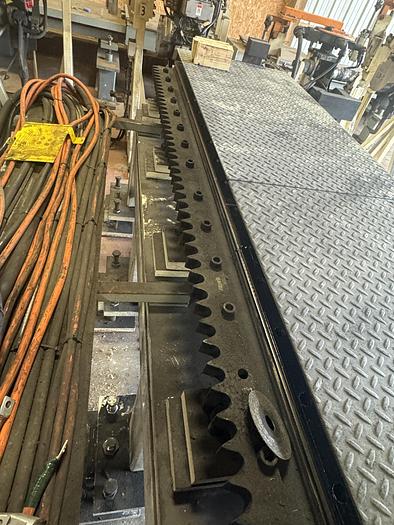

2 OF THE ABOVE UNITS ARE MOUNTED ON 3 METER ROBOT TRANSFER UNITS

========================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER: The Fanuc R‑2000iC/​165F is an advanced, 6‑axis, mul­ti-pur­pose robot that can han­dle a 165 kg pay­load. The R‑2000iC/​165F is a flex­i­ble robot, mak­ing it ide­al for a vari­ety of appli­ca­tions, rang­ing from spot weld­ing to mate­r­i­al han­dling. It has an incred­i­bly durable thin wrist that deliv­ers excel­lent cycle times, mak­ing it per­fect for tight space spot weld­ing. Also, the Fanuc R‑2000iC/​165F has been thought­ful­ly designed to max­i­mize use of work space and be in clos­er prox­im­i­ty to oth­er robots.

Over­all, the diverse Fanuc R‑2000iC/​165F comes equipped with the new R‑30iB con­troller and will be a great addi­tion to your factory.  Whatever the application, with its 165 kg capacity this model is a great choice for tasks involving high payloads.


PRIMARY APPLICATIONS:

Spot Welding Robots

Material Handling Robots

Assembly Robots

Dispensing Robots

Material Removal Robots

Pick & Place Robots

Packaging Robots

Palletizing Robots


ROBOT SPECIFICATIONS:

PAYLOAD 165 kg

REACH 2655 mm

AXES 6

REPEATABILITY 0.2 mm

MASS 1090 kg

STRUCTURE Articulated

MOUNTING Floor


ROBOT MOTION SPEED:

J1 130 °/s (2.27 rad/s)

J2 115 °/s (2.01 rad/s)

J3 125 °/s (2.18 rad/s)

J4 180 °/s (3.14 rad/s)

J5 180 °/s (3.14 rad/s)

J6 260 °/s (4.54 rad/s)

ROBOT MOTION RANGE:

J1 ±370°

J2 ±136°

J3 ±312°

J4 ±720°

J5 ±250°

J6 ±720°


EQUIPPED WITH:

FANUC 7TH AXIS DRIVE FOR SPOT WELDING GUN

DENGENSHA SERVO SPOT WELD GUN AND POWER SUPPLY

& DENGENSHA PROGRAM BOX PBM-770E

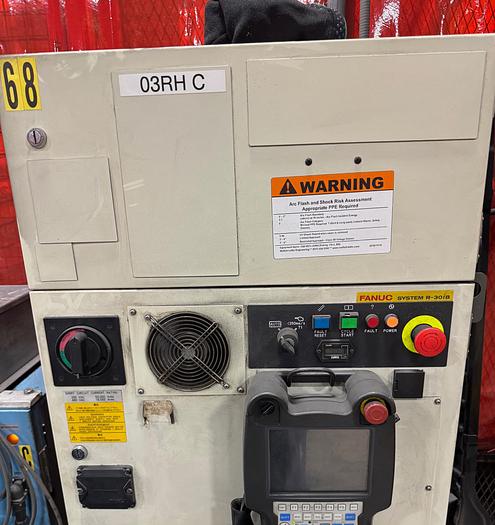

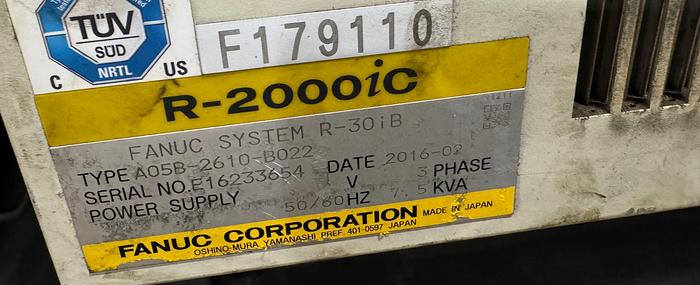

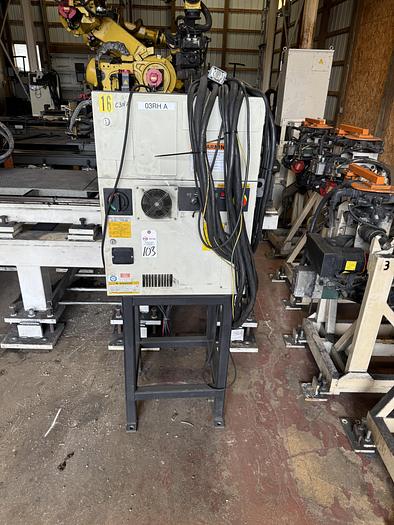

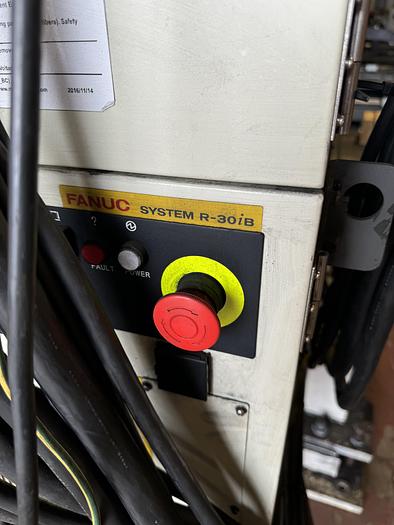

FANUC R-30iB ROBOT CONTROLLER

FANUC ROBOT CONNECTION CABLES

FANUC COLOR TEACH PENDANT


Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.


CALL AN R.A.B. INDUSTRIES, INC REPRESENATIVE (586)752-0090 FOR ALL YOUR ROBOTICS AND AUTOMATION NEEDS. RAB BUYS FANUC ROBOTS, KAWASAKI ROBOTS, ABB ROBOTS, MOTOMAN ROBOTS, KUKA ROBOTS, DENSO ROBOTS, UNIVERSAL ROBOTS AND ROBOT PARTS, ROBOT MRO, CONTROLLERS, CABLES, RVS, TEACH PENDANTS. WE ARE ROBOTIC AUTOMATION BULLS.


SEE CURRENT INVENTORY


THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.

Specifications

ManufacturerFANUC
ModelR-2000iC/165F
Year2016
ConditionUsed
Serial NumberF179125
Stock Number105193
