ABB IRB 140 6 AXIS CNC ROBOT WITH S4C CONTROLLER

Contact us for price

Almont, MI

orCall 586-752-0090

Description

Axes: 6
Payload: 6.00kg
H-Reach: 810.00mm
Repeatability: ±0.0300mm
Robot Mass: 98.00kg
Structure: Articulated
Mounting: Floor, Inverted, Angle
Robot Motion Speed
J1 200 °/s (3.49 rad/s)
J2 200 °/s (3.49 rad/s)
J3 260 °/s (4.54 rad/s)
J4 360 °/s (6.28 rad/s)
J5 360 °/s (6.28 rad/s)
J6 450 °/s (7.85 rad/s)
Robot Motion Range
J1 ±360°
J2 ±200°
J3 ±280°
J4 ±400°
J5 ±240°
J6 ±800°
Robot Applications
3D Laser Vision Robots
Arc Welding Robots
Assembly Robots
Bonding / Sealing Robots
Cleanroom Robots
Deburring Robots
Drilling Robots
Foundry Robots
Grinding Robots
Injection Molding Robots
TIP / TIG Welding Robots
Material Removal Robots
Milling Robots
Polishing Robots
Routing Robots
Sanding Robots
Spindling Robots
Meat Processing Automation Robots
EQUIPPED WITH:

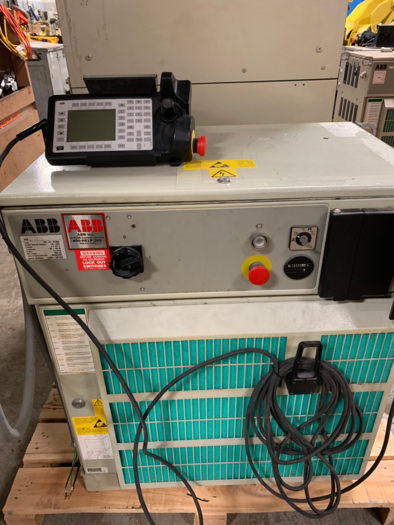

S4C CONTROLLER

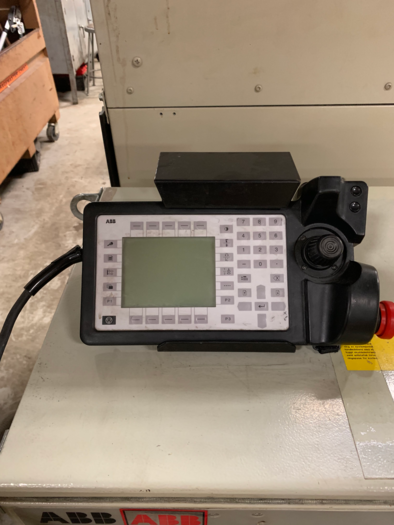

TEACH PENDANT
CABLES
ETHERNET HOOK UP
FOB TRUCK, ALMONT, MI 48003

Specifications

ManufacturerABB
Year2001
ConditionUsed
Stock Number103684
