2012 ABB IRB 6640 235/2.55

Sold

2012 ABB IRB 6640 235/2.55

Imlay City, MI

Description

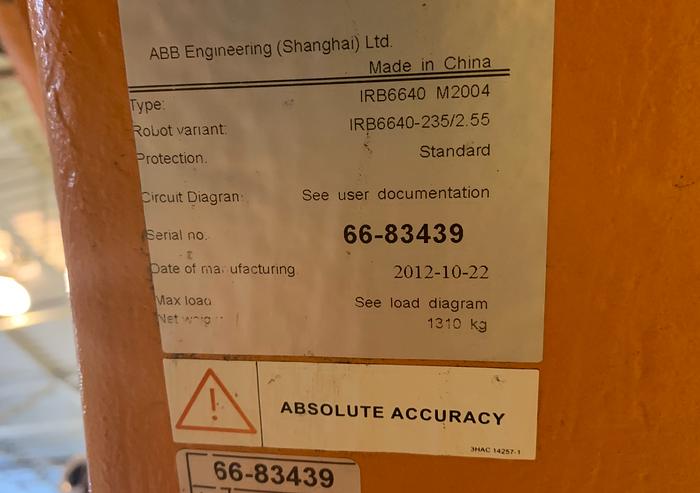

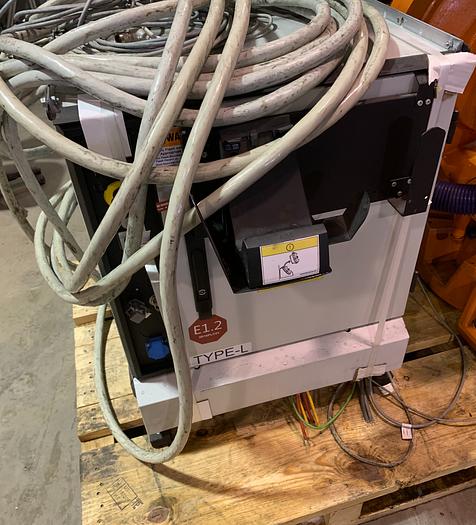

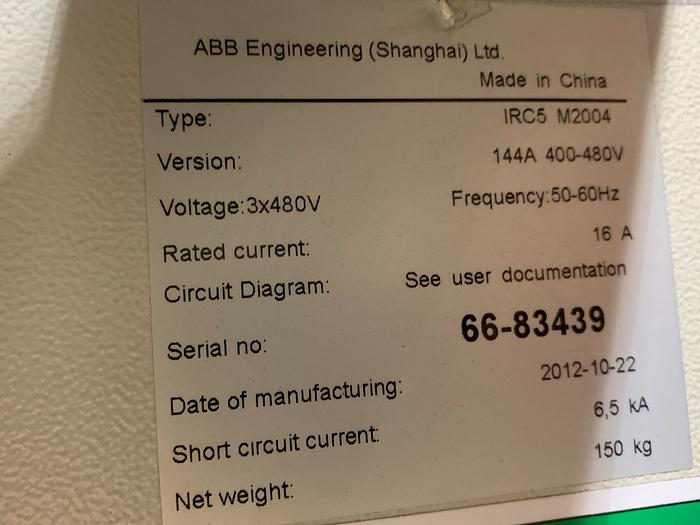

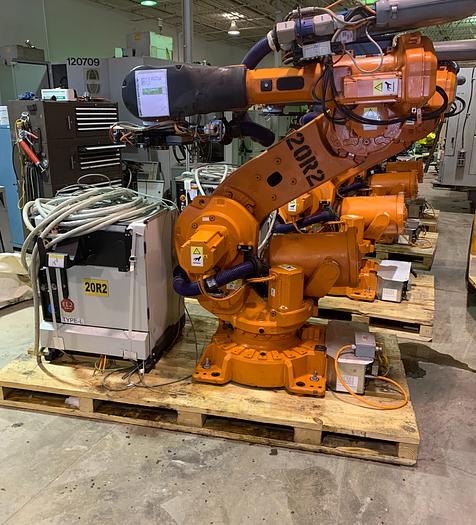

1-USED ABB IRB 6640 6 AXIS CNC ROBOT 235KG X 2.55 METER REACH WITH IRC5 CONTROLLER, CABLES, TEACH PENDANT SERIAL NUMBER 66-83439 DATE OF MANUFACTURE 10/2012 STK#103701 ================================================================== SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER: Robot Specifications Axes: 6 Payload: 235.00kg H-Reach: 2550.00mm Repeatability: ±0.0700mm Robot Mass: 1310.00kg Structure: Articulated Mounting: Floor Robot Motion Speed J1 100 °/s (1.75 rad/s) J2 90 °/s (1.57 rad/s) J3 90 °/s (1.57 rad/s) J4 170 °/s (2.97 rad/s) J5 120 °/s (2.09 rad/s) J6 190 °/s (3.32 rad/s) Robot Motion Range J1 ±170° J2 +85° - 65° J3 +70° - 180° J4 ±300° J5 ±120° J6 ±360° FROM THE OEM: The ABB IRB 6640-235, paired with the IRC5, is the ideal robot for your material handling, machine tending, or spot welding jobs. It can tackle any heavy duty job that requires a payload of up to 235 kg, has outstanding inertia capabilities, top of the line collision resistance, easy maintenance, and simplified fork lift pockets. It has a reach of 2550 mm and can bend fully backwards, which enables it the ability to decrease its footprint and fit into tight production lines. Customization is also easy with the upper arm extenders and different wrist modules. A variety of protection options are available such as Foundry Plus 2 or Foundry Prime 2. There are passive safety features such as load identification, movable mechanical stops, electronic positions switches (EPS), and a stiff steel structure. The IRB 6640-235 IRC5 has TrueMove and Quick Move software to help it achieve increased path performance and monitor internal robot loads. They also help to decrease the risk of overload and increase the robot’s life cycle. TYPICAL APPLICATIONS FOR THIS ROBOT MACHINE TENDING MATERIAL HANDLING SPOT WELDING EQUIPPED WITH: IRC5 CONTROLLER CABLES TEACH PENDANTS ABSOLUTE ACCURACY FOB TRUCK, ALMONT, MI 48003 THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. (586)752-0090 WWW.RABIND.COM

Specifications

ManufacturerABB
ModelIRB 6640 235/2.55
Year2012
ConditionUsed

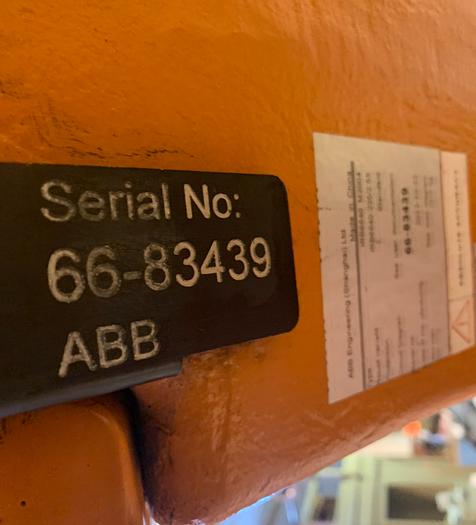

Serial Number66-83439
Stock Number103701
