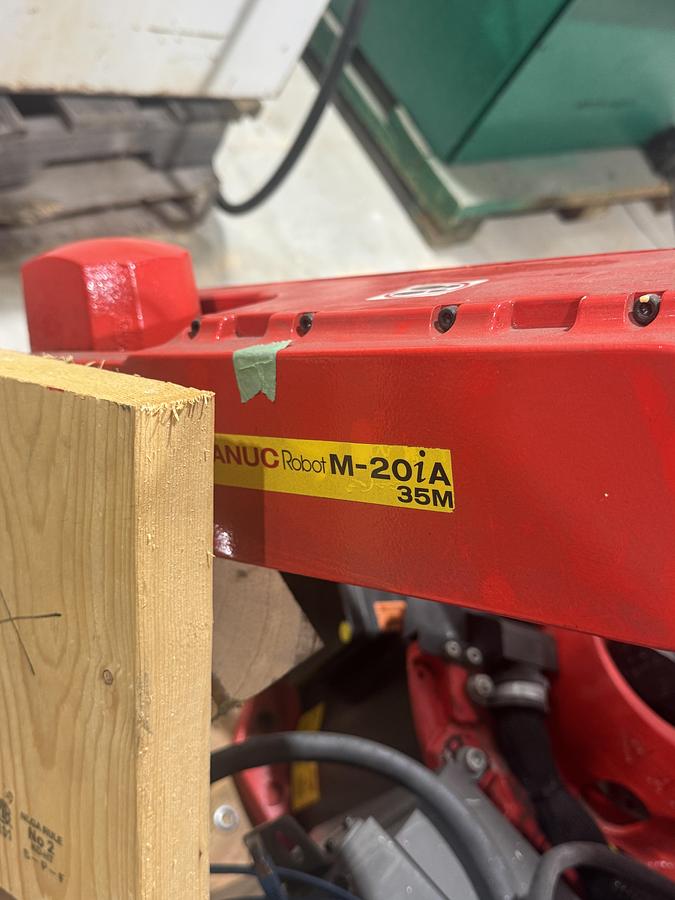

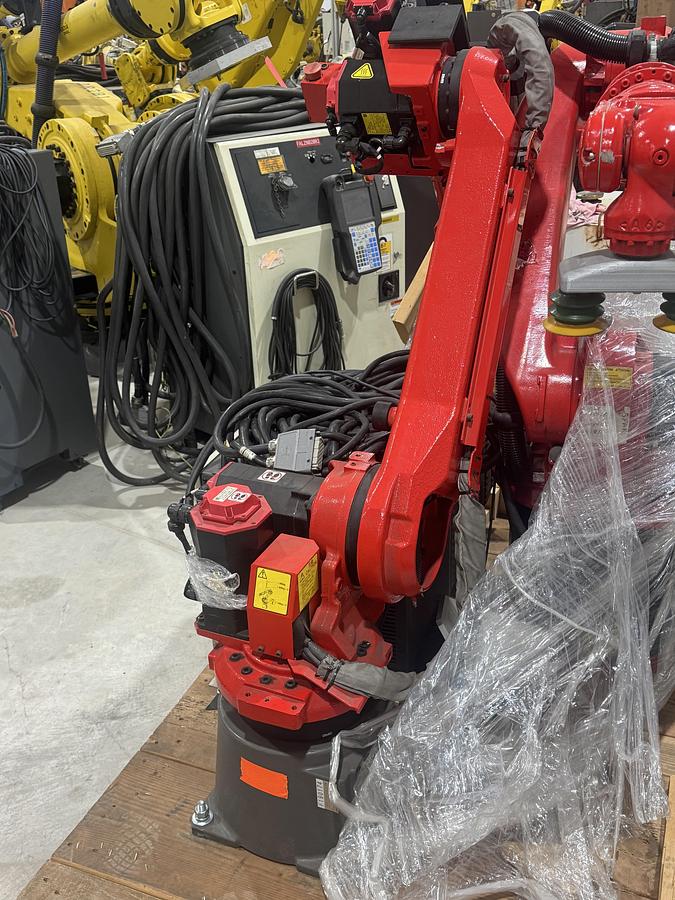

FANUC M-20iA/35M HIGH INERTIA 6 AXIS ROBOT R-30iB 35 KG X REACH 1,813 MM

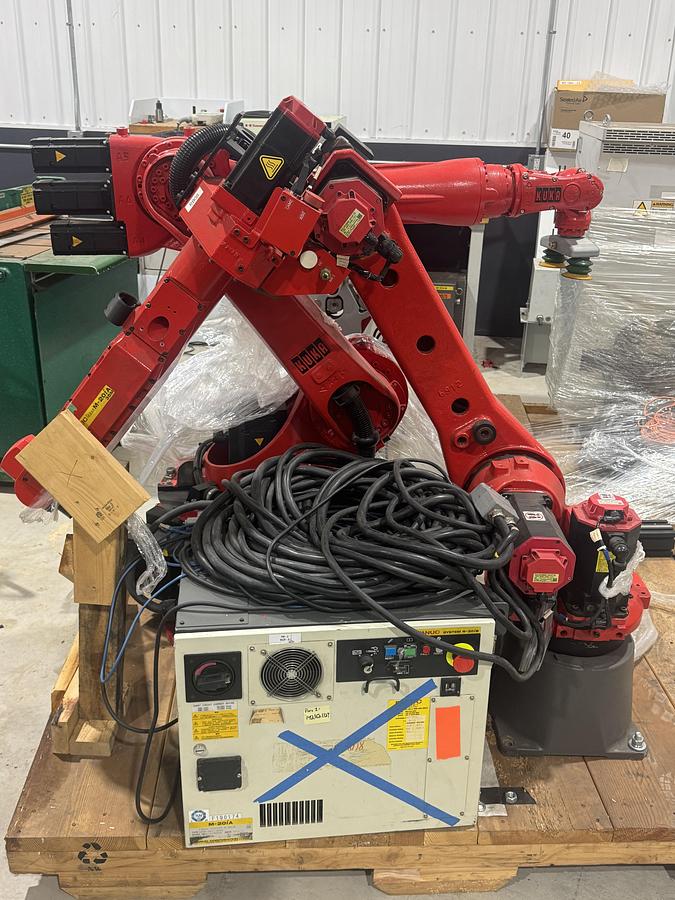

1-FANUC M-20iA/35M 6 AXIS ROBOT WITH R-30iB PLUS CONTROLLER, TEACH PENDANT, AND

CABLES, HIGH INERTIA WRIST, 1,813 MM REACH

SERIAL NUMBER F190174

DATE OF MFG 11/2016

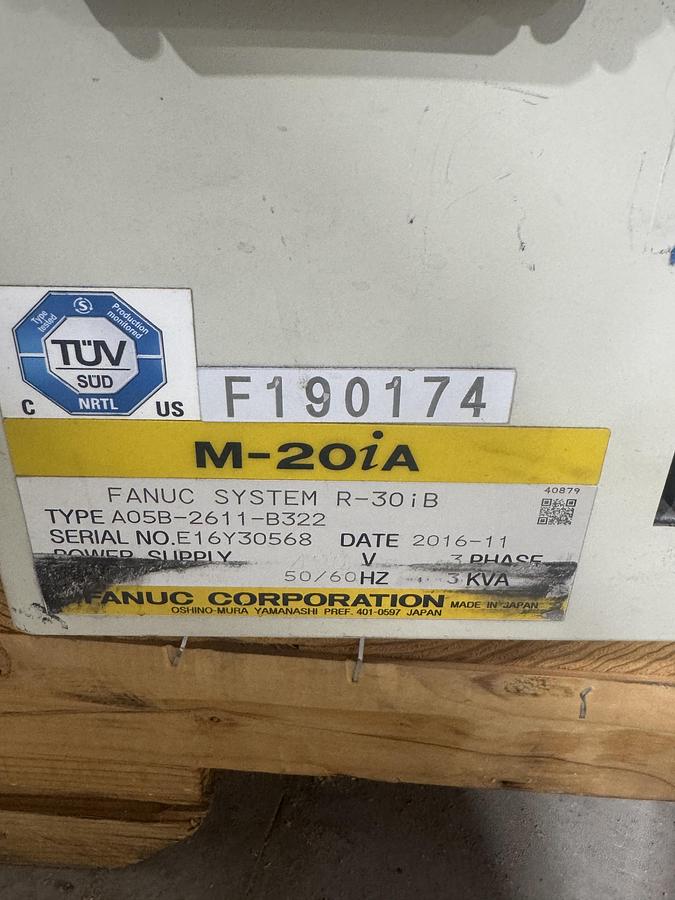

CONTROLLER PART NUMBER A05B-2611-B322

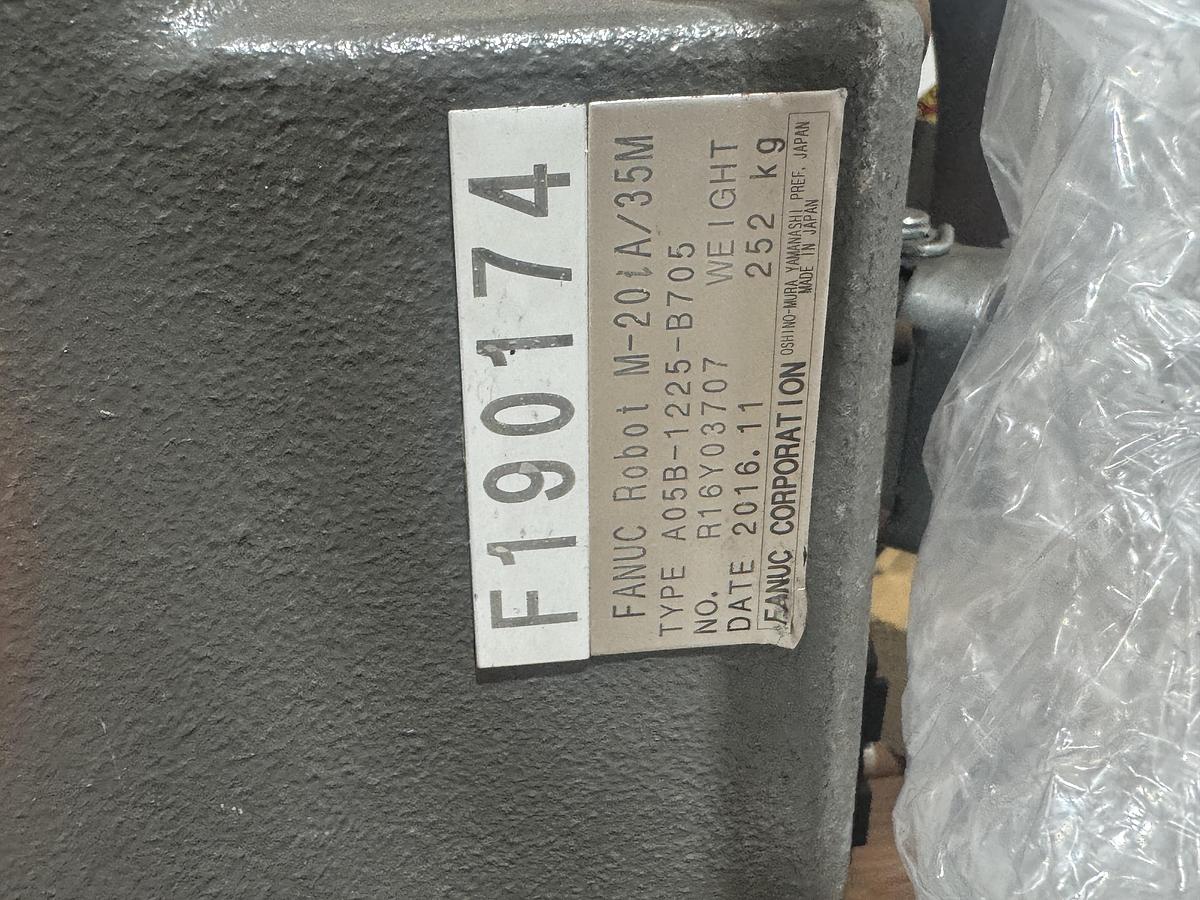

MECHANICAL PART NUMBER A05B-1225-B705

STK#105306

===============================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:

The Fanuc M-20iA is one awesome robot. A high Inertia robot that can lay waste to loading jobs, machine tending jobs, Assembly jobs, and more. Its a full 6 axis robot with a hollow arm, no need for an external dress pack.

Robot Specifications:

Axes: 6

Payload: 35kg

H-Reach: 1813mm

Repeatability: ±0.08mm

Robot Mass: 252kg

Structure: Articulated

Mounting: Floor

Robot Motion Speed:

J1 180 °/s (3.14 rad/s)

J2 180 °/s (3.14 rad/s)

J3 200 °/s (3.49 rad/s)

J4 350 °/s (6.11 rad/s)

J5 350 °/s (6.11 rad/s)

J6 400 °/s (6.98 rad/s)

Robot Motion Range:

J1 ±370°

J2 ±260°

J3 ±461°

J4 ±400°

J5 ±280°

J6 ±900°

Equipped With:

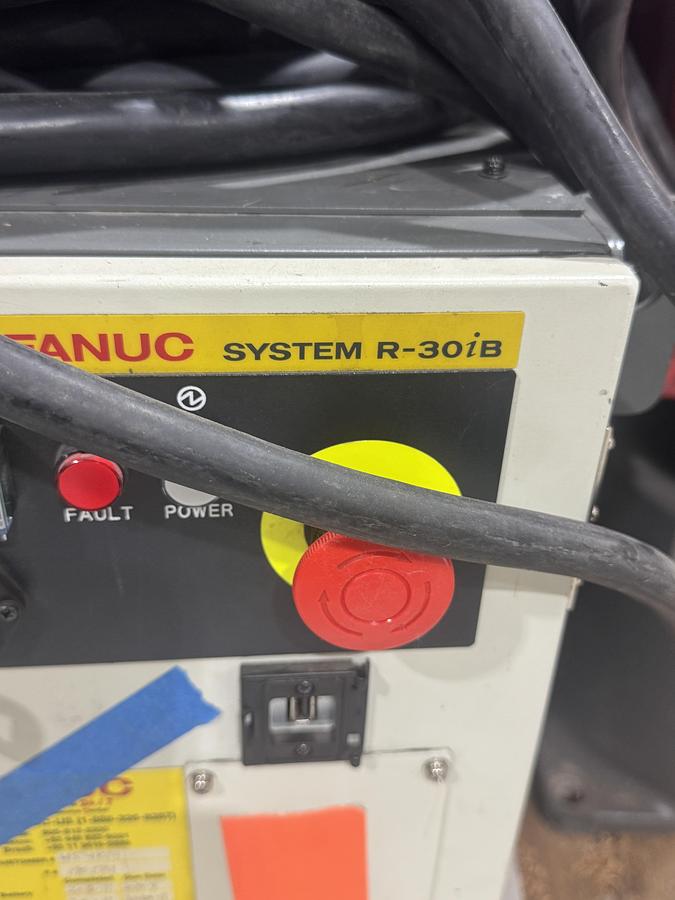

Fanuc R-30iB Controller

Fanuc Robot Connection Cables

Fanuc Teach Pendant

EE Connection

Applications:

Material Handling Robots

Assembly Robots

Machine Loading Robots

Machine Tending Robots

Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.

CALL AN R.A.B. INDUSTRIES, INC REPRESENATIVE (586)752-0090 FOR ALL YOUR ROBOTICS AND AUTOMATION NEEDS. RAB BUYS FANUC ROBOTS, KAWASAKI ROBOTS, ABB ROBOTS, MOTOMAN ROBOTS, KUKA ROBOTS, DENSO ROBOTS, UNIVERSAL ROBOTS AND ROBOT PARTS, ROBOT MRO, CONTROLLERS, CABLES, RVS, TEACH PENDANTS. WE ARE ROBOTIC AUTOMATION BULLS. THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.
