FANUC ARC MATE 100iC/12 6 AXIS MIG WELDING ROBOT WITH R-30iB CONTROL

FANUC ARC MATE 100iC/12 6 AXIS MIG WELDING ROBOT WITH R-30iB CONTROL

Contact us for price

Location:Imlay City, MI

Available quantity:1

Description

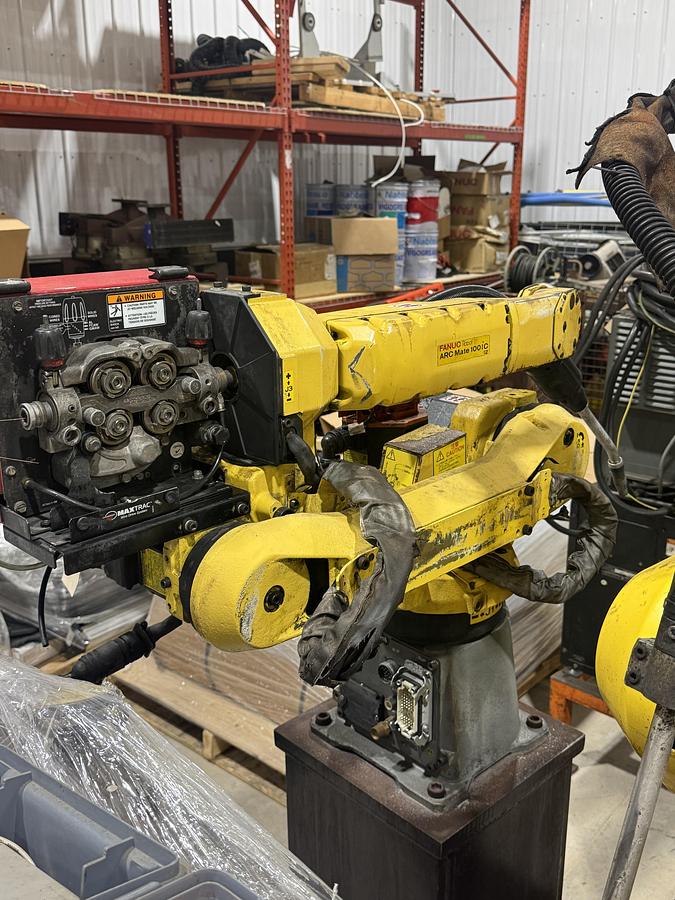

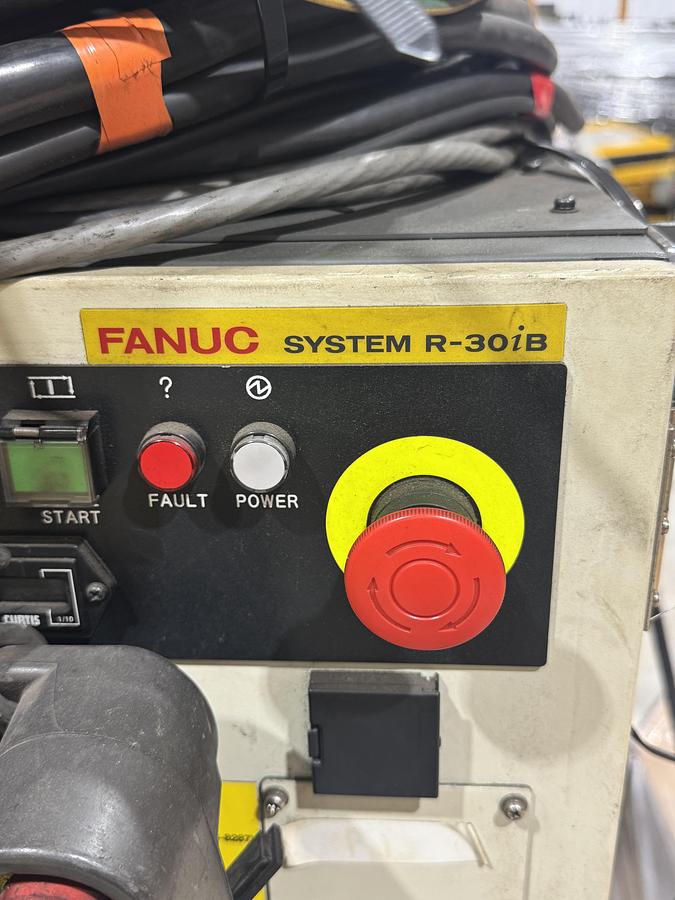

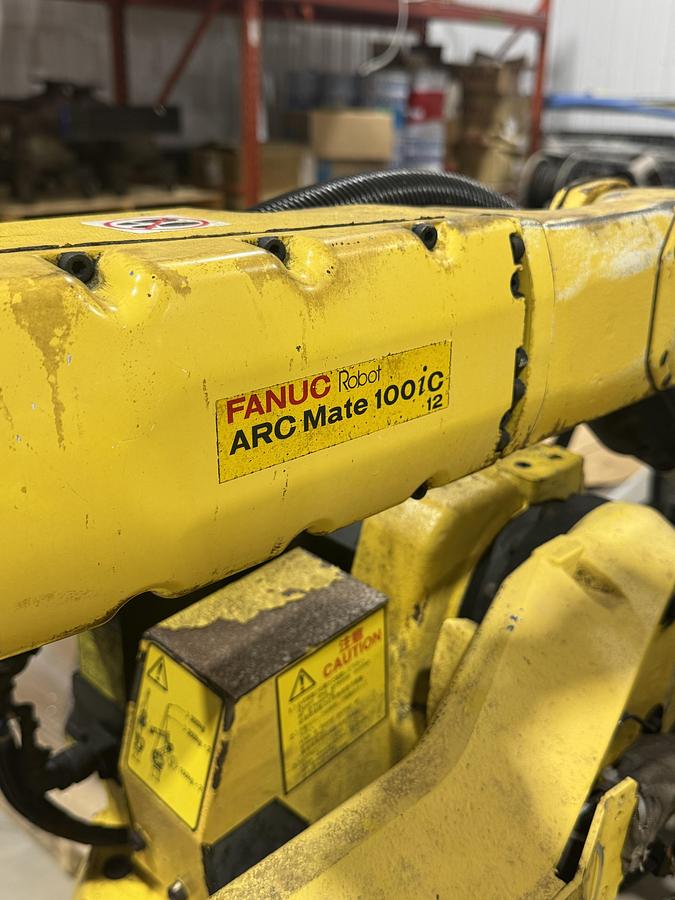

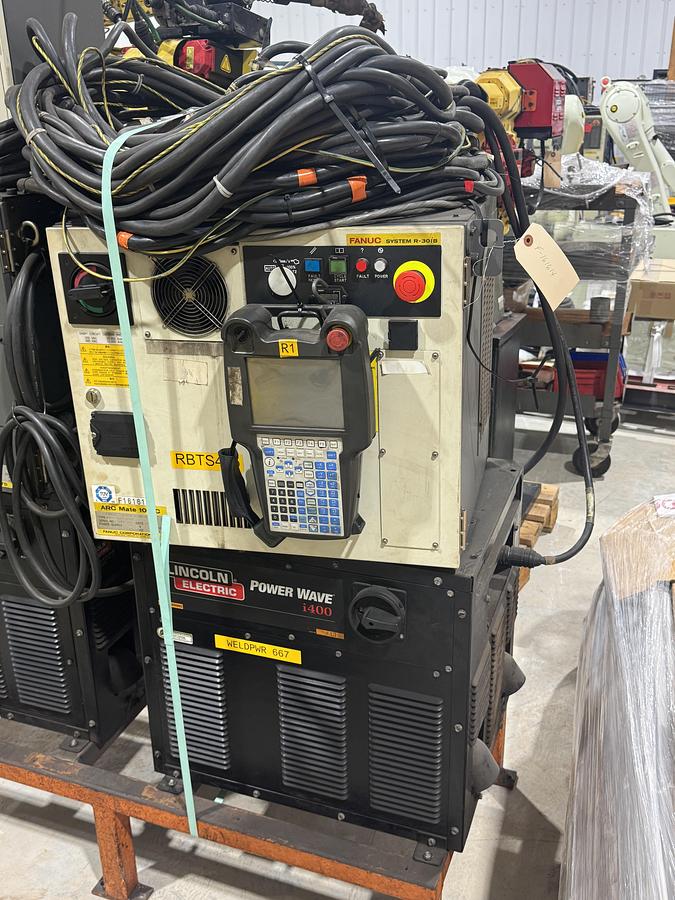

1-USED FANUC ARC MATE 100iC/12 6 AXIS MIG WELDING ROBOT WITH R-30iB CONTROL

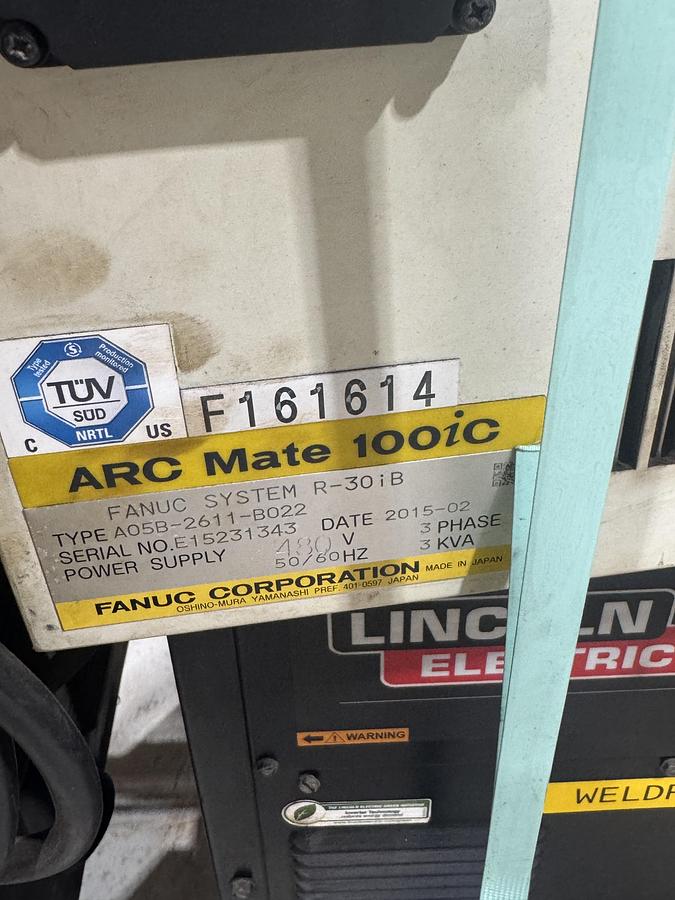

SERIAL NUMBER F161614

DATE OF MFG.

STK#105312

===============================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:

Robot Specifications:

Axes: 6

Payload: 12kg

H-Reach: 1420mm

Repeatability: ±0.08mm

Robot Mass: 130kg

Structure: Articulated

Mounting: Floor, Inverted, Angle


Robot Motion Speed:

J1 230 °/s (4.01 rad/s)

J2 225 °/s (3.93 rad/s)

J3 230 °/s (4.01 rad/s)

J4 430 °/s (7.5 rad/s)

J5 430 °/s (7.5 rad/s)

J6 630 °/s (11 rad/s)


Robot Motion Range:

J1 ±360°

J2 ±250°

J3 ±445°

J4 ±380°

J5 ±380°

J6 ±720°


Applications:

Arc Welding Robots

MIG Welding Robots

TIG Welding Robots

Welding Automation Robots


Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.


CALL AN R.A.B. INDUSTRIES, INC REPRESENATIVE (586)752-0090 FOR ALL YOUR ROBOTICS AND AUTOMATION NEEDS. RAB BUYS FANUC ROBOTS, KAWASAKI ROBOTS, ABB ROBOTS, MOTOMAN ROBOTS, KUKA ROBOTS, DENSO ROBOTS, UNIVERSAL ROBOTS AND ROBOT PARTS, ROBOT MRO, CONTROLLERS, CABLES, RVS, TEACH PENDANTS. WE ARE ROBOTIC AUTOMATION BULLS.


See Our Arc Mate Stock as well as other Robots that lend themselves to Mig Welding Applications.

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.

Specifications

ManufacturerFANUC
ModelARCMATE 100iC/12
ConditionUsed
Serial NumberF161614
Stock Number105312
Axes6
Payload12kg
H-Reach1420mm
Repeatability±0.08mm
Robot Mass130kg
StructureArticulated
MountingFloor, Inverted, Angle
Welding Applications [https//www.rabindustries.com/listings?q=FANUC+Arc+Mate].
