FANUC M16iB WITH RJ3iB VERY LITTLE USE AFTER REFURBISHMENT

Contact us for price

Almont, MI

orCall 586-752-0090

Description

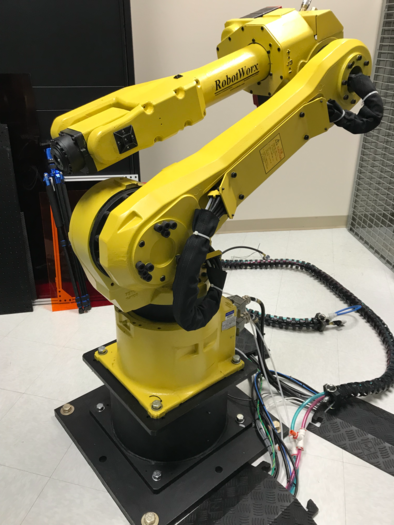

1- USED FANUC M16 ROBOT WITH RJ3iB CONTROLLER
STK#103712
———————————————————
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

Robot Specifications
Axes: 6
Payload: 20.00kg
H-Reach: 1667.00mm
Repeatability: ±0.0800mm
Robot Mass: 270.00kg
Structure: Articulated
Mounting: Floor, Inverted, Angle

Robot Motion Speed
J1 165 °/s (2.88 rad/s)
J2 165 °/s (2.88 rad/s)
J3 175 °/s (3.05 rad/s)
J4 350 °/s (6.11 rad/s)
J5 340 °/s (5.93 rad/s)
J6 520 °/s (9.08 rad/s)

Robot Motion Range
J1 ±170°
J2 +160° - 90°
J3 +290° - 170°
J4 ±200°
J5 ±140°
J6 ±450°

Robot Applications:
Material Handling Robots
Assembly Robots
Dispensing Robots
Electron Beam Welding Robots
Flux Cored Welding Robots
Laser Cutting Robots
Material Removal Robots
Sanding Robots

EQUIPPED WITH:
RJ3IB CONTROLLER
CABLES
TEACH PENDANT

FANUC M 16iB has a small footprint that supports placement in confined areas. The M-16iB also has fail-safe brakes on axes to improve the safety, functionality, and overall control. There are dedicated pneumatic and electrical connections on the J3 axis. Furthermore, its dust and water resistant design maximizes durability where as the work envelope and position flexibility maximize versatility. The FANUC M-16iB has absolute serial encoders that dismiss the need for calibration at power-up and its unique hollow RV speed reducers help to simplify cable routing. For integration, there is no modification for the mounting of upright, inverted, angle and wall. This robot is ready to bring your production speed and a fast, higher quality product.

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND
BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS
AND CONDITIONS.

WWW.RABIND.COM
586-752-0090

Specifications

ManufacturerFANUC
ModelM16iB
ConditionUsed
Stock Number103712
