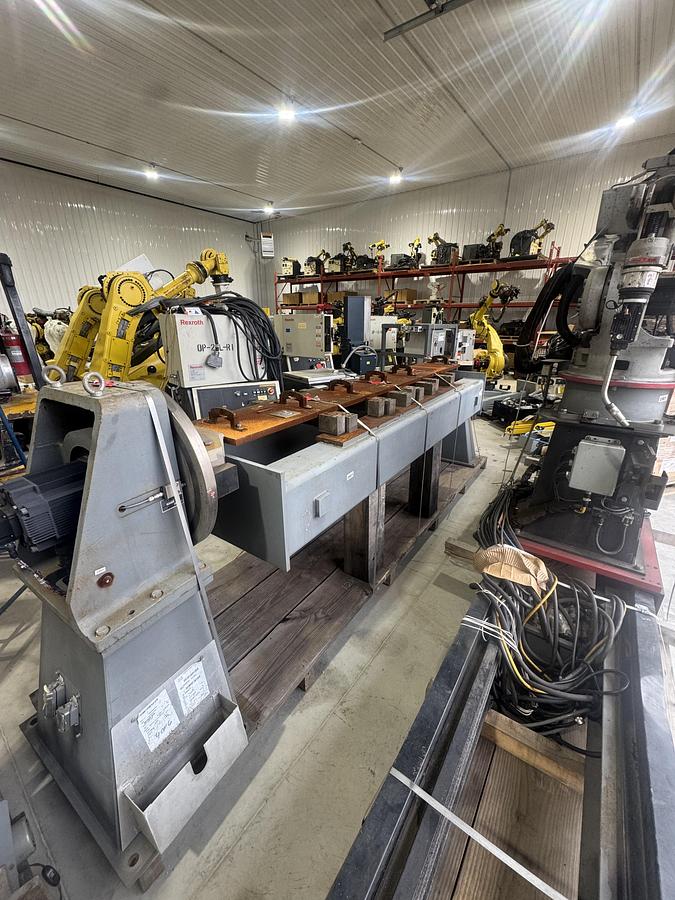

MOTOMAN EA1900N MIG WELDING CELL WITH TRUNNION AND 7TH AXIS RTU FOR SALE

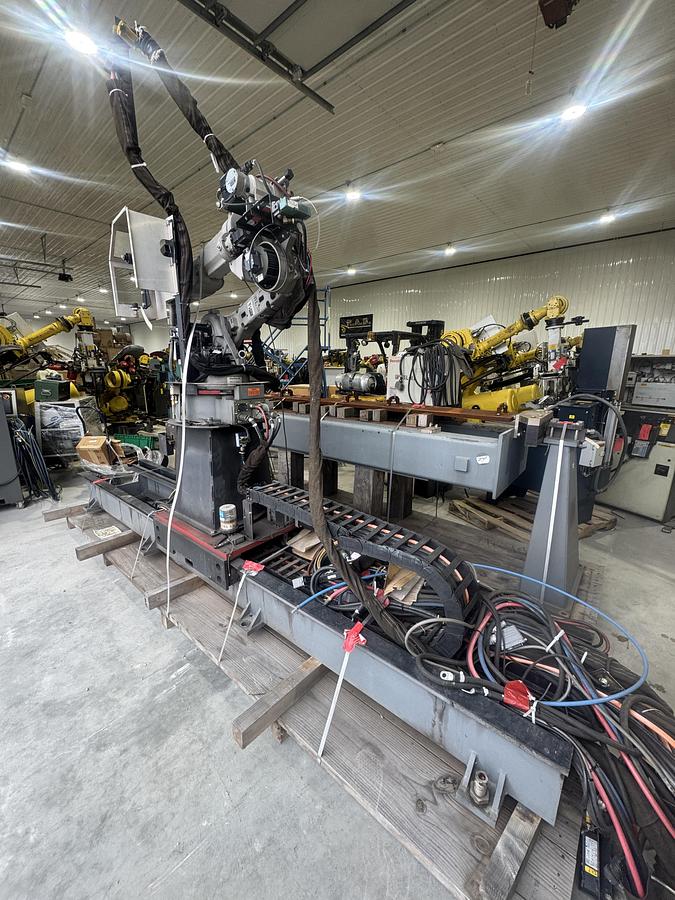

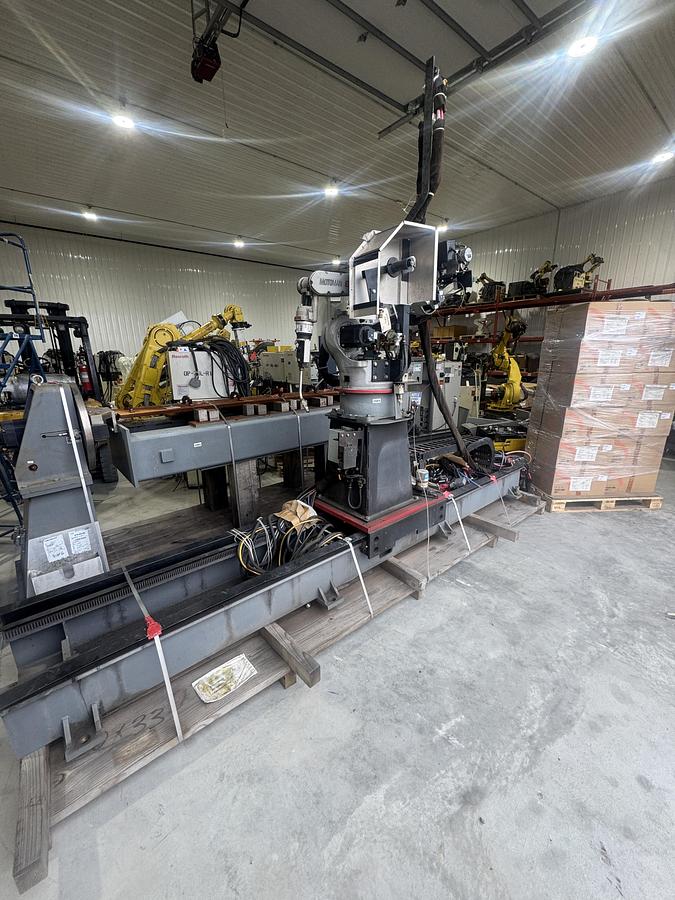

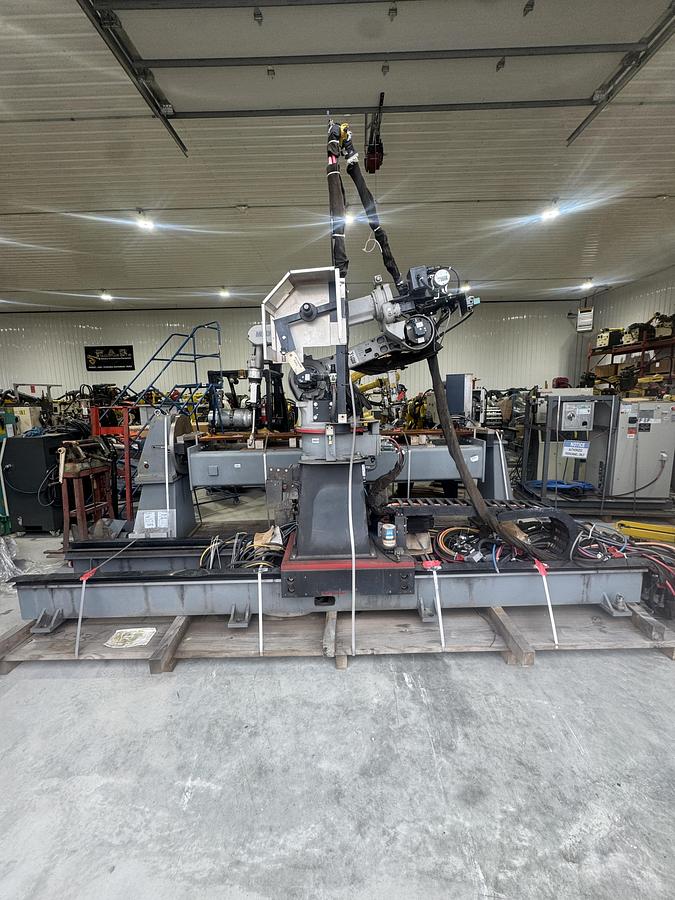

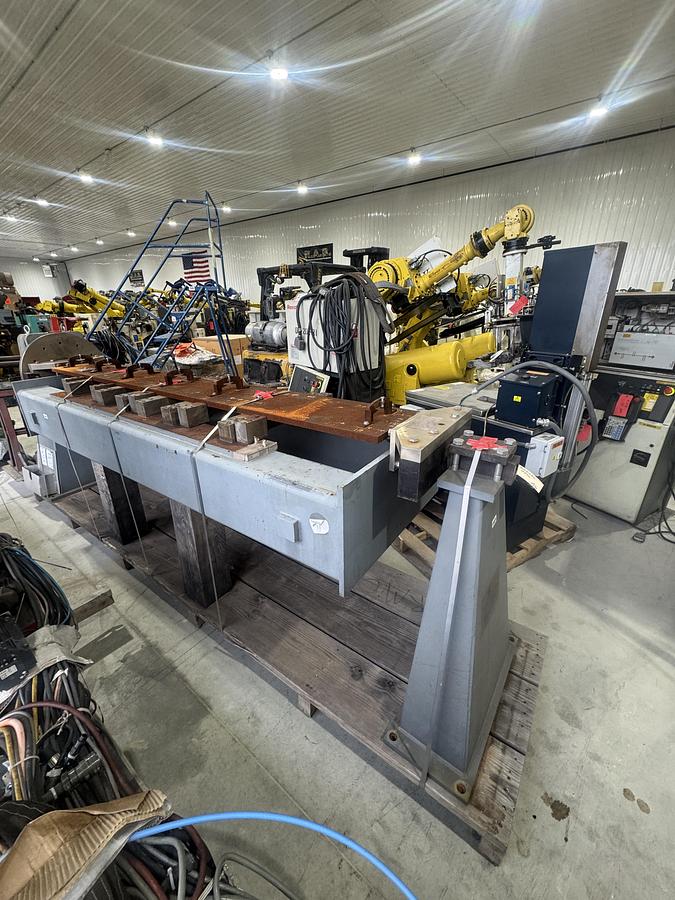

1-USED MOTOMAN EA1900N MIG WELDING CELL WITH GUDEL RTU & MOTOMAN 108" TRUNNION

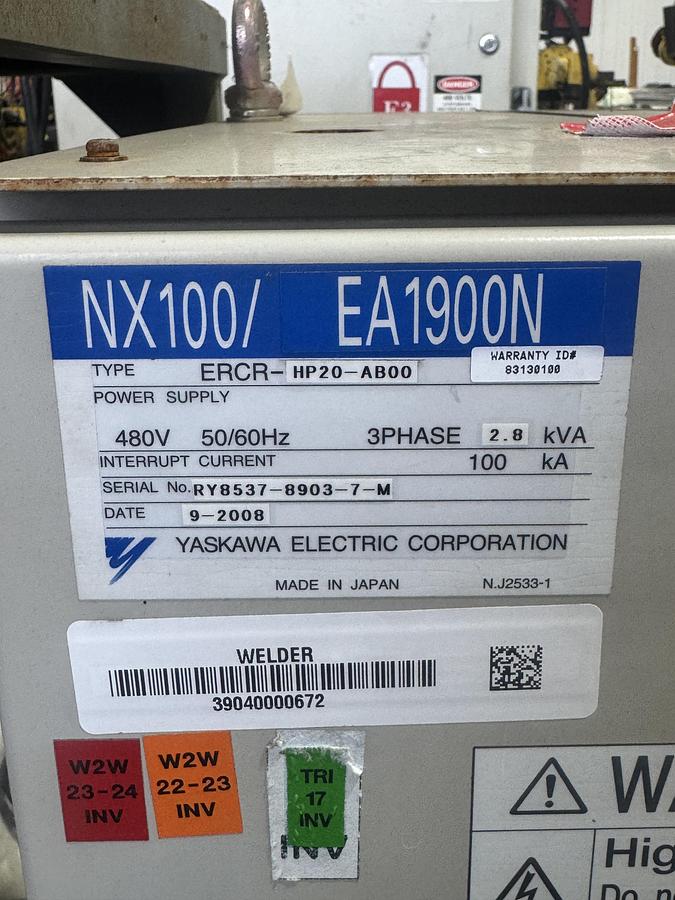

SERIAL NUMBER RY8537-8903-7-M

DATE OF MFG. 9/2008

STK#105383

========================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:

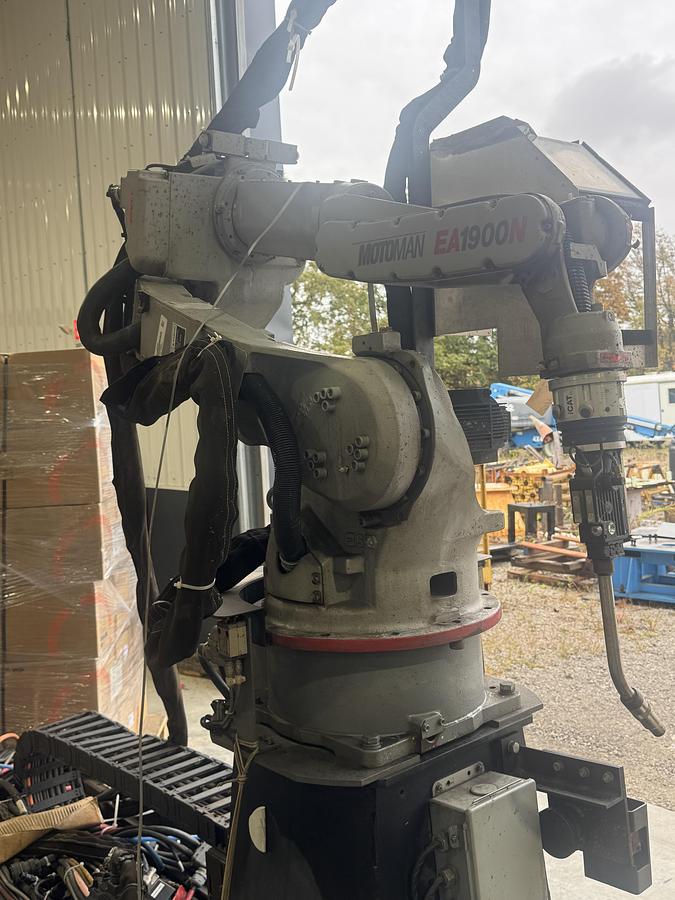

The Motoman EA1900N is a high-performance welding robot that features an internal cable design that was patented to eliminate cable flip. The standard EA1900N NX100 is floor mounted. The EA1900N from Motoman offers high quality welding with a sturdy arc and optimum torch positioning. There is also a reduction in programming time, which allows manufacturers to integrate the robot into their production even quicker. And with its slim design, the EA1900N can be set up without taking up a lot of space. The EA1900N NX100 robot uses the NX100 controller which is capable of controlling multiple robots. The use of this controller reduces the cost of integration and eliminates the possibility of robot collisions.

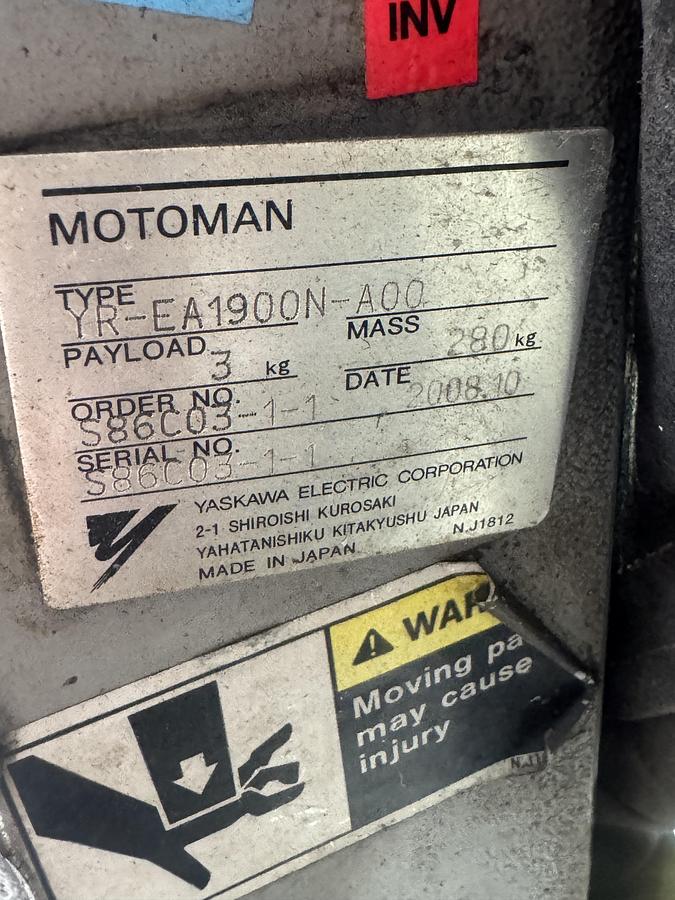

Robot Specifications:

Axes:............. 6

Payload:........ 3 kg

H-Reach:....... 1904 mm

Repeatability:±0.08 mm

Robot Mass: 280 kg

Structure: ..... Articulated

Mounting: .....Floor

Robot Motion Speed

S-Axis.....170 °/s (2.97 rad/s)

L-Axis.....170 °/s (2.97 rad/s)

U-Axis.....175 °/s (3.05 rad/s)

R-Axis.....340 °/s (5.93 rad/s)

B-Axis.....340 °/s (5.93 rad/s)

T-Axis.....520 °/s (9.08 rad/s)

Robot Motion Range

S-Axis.....±180°

L-Axis.....+155° - 110°

U-Axis.....+255° - 165°

R-Axis.....±150°

B-Axis.....+180° - 45°

T-Axis.....±200°

EQUIPPPED WITH:

MOTOMAN MECHANICAL UNIT

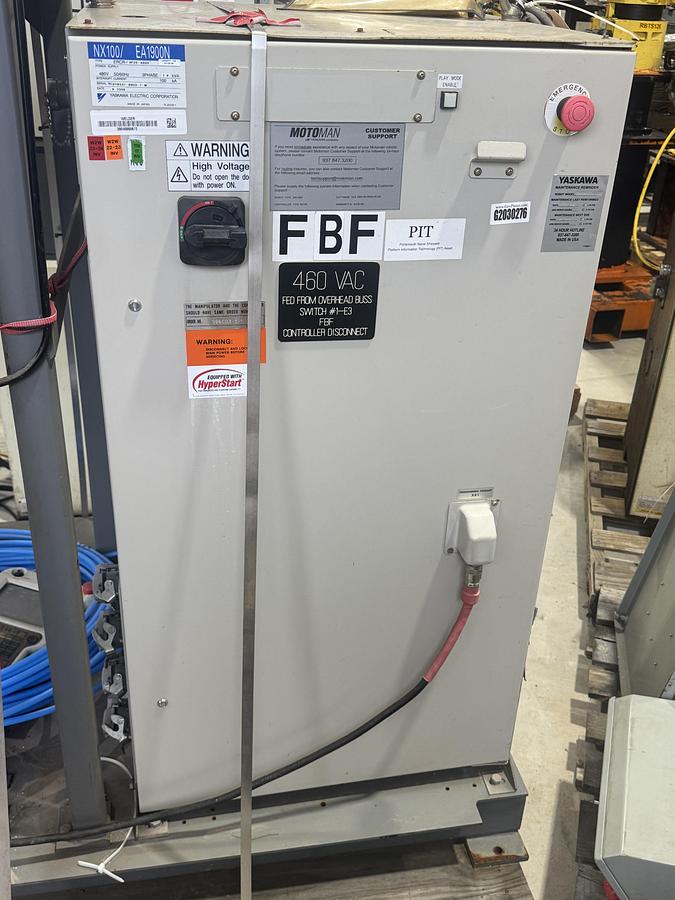

MOTOMAN NX100 CONTROLLER

MOTOMAN FLEXIBLE CABLE SET FOR GUDEL RTU

MOTOMAN ROBOT CONNECTION CABLES

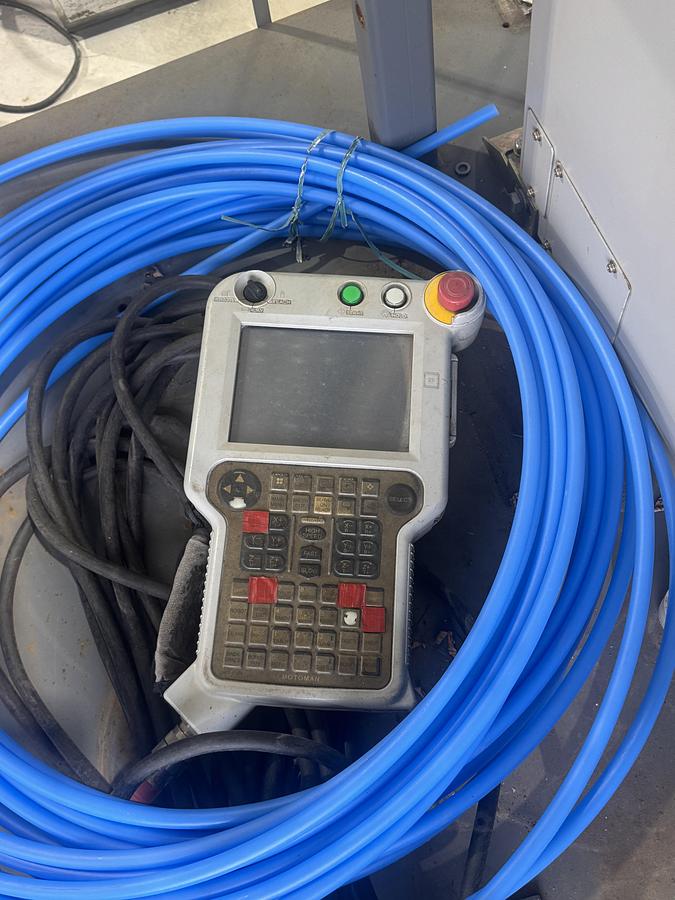

MOTOMAN TEACH PENDANT

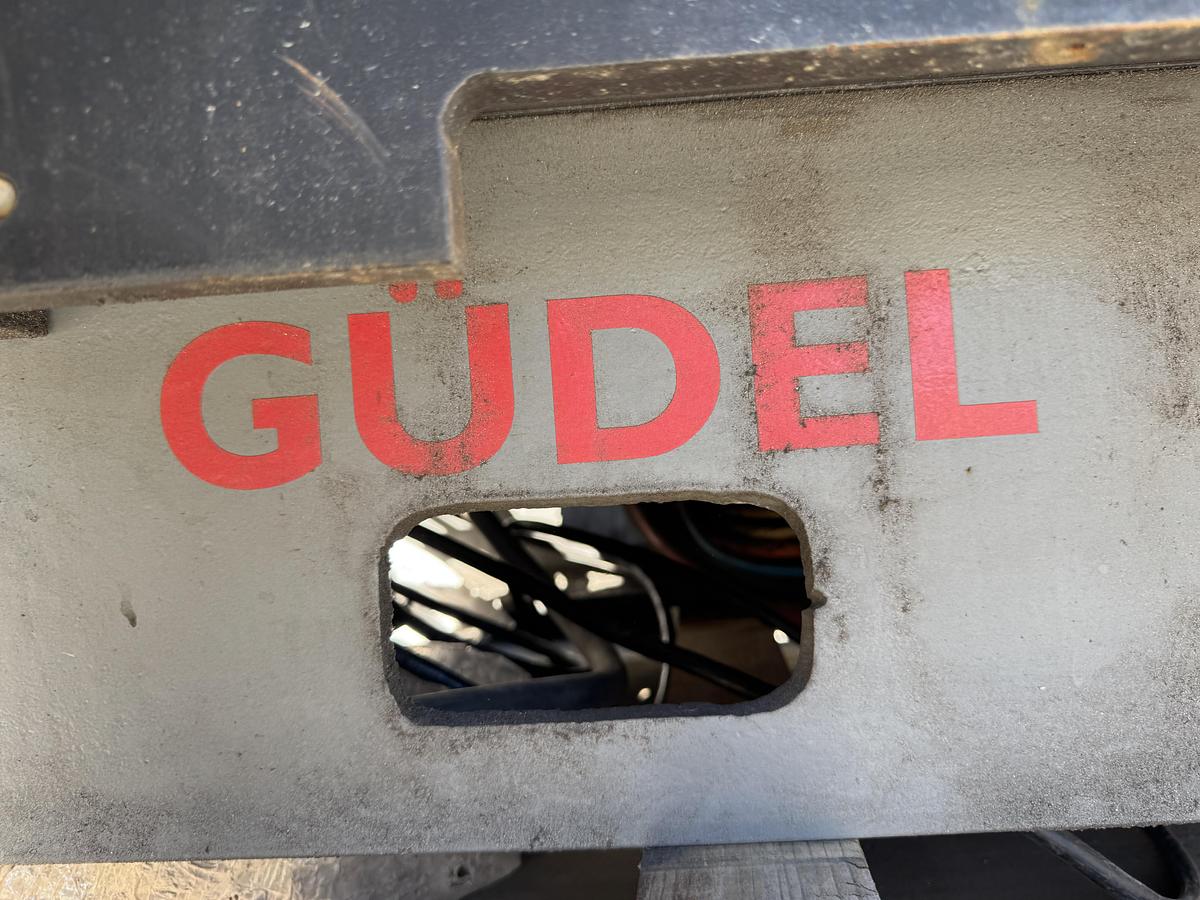

GUDEL ROBOT RAIL RTU WITH 11' OF TRAVEL AND 13' OVERALL LENGTH

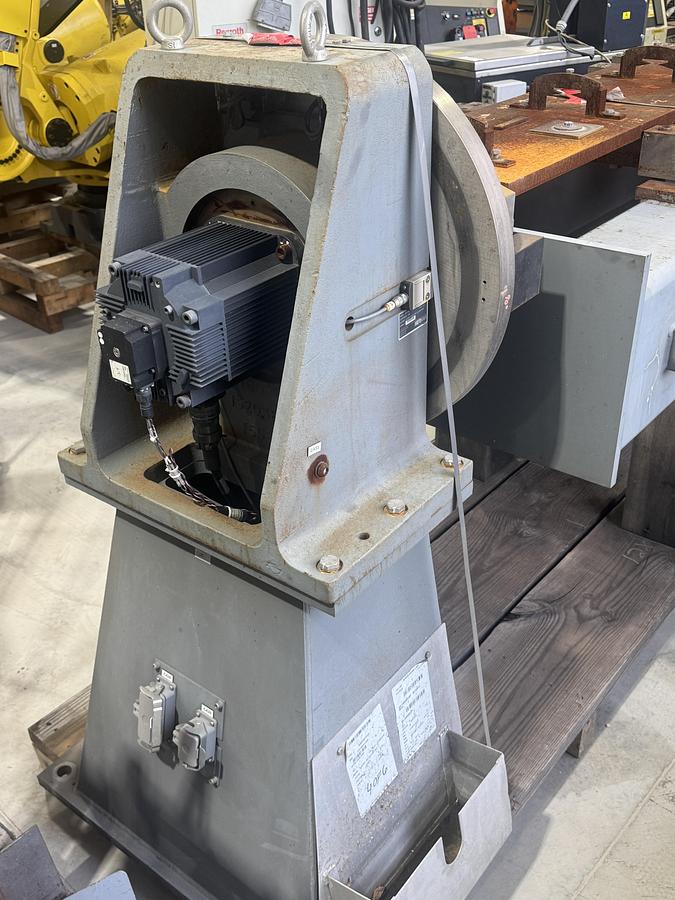

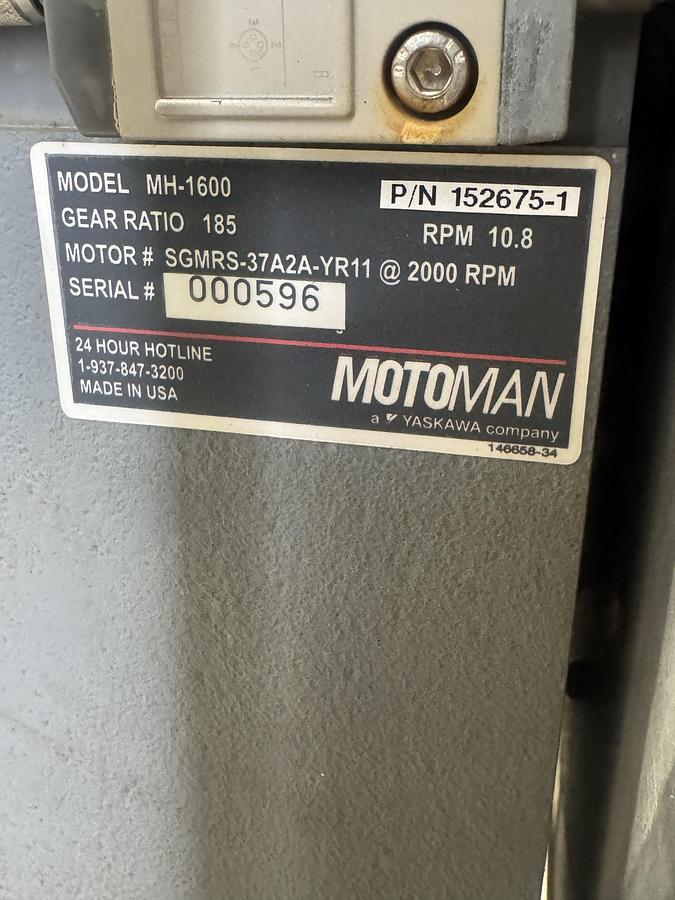

MOTOMAN MH-1600 TRUNION FIXTURE WITH 115" CENTERS DISTANCE x 40" SWING CAPACITY

GEAR RATIO 185, RPM MAX. 10.8, UNIT SERIAL NUMBER 152675-1

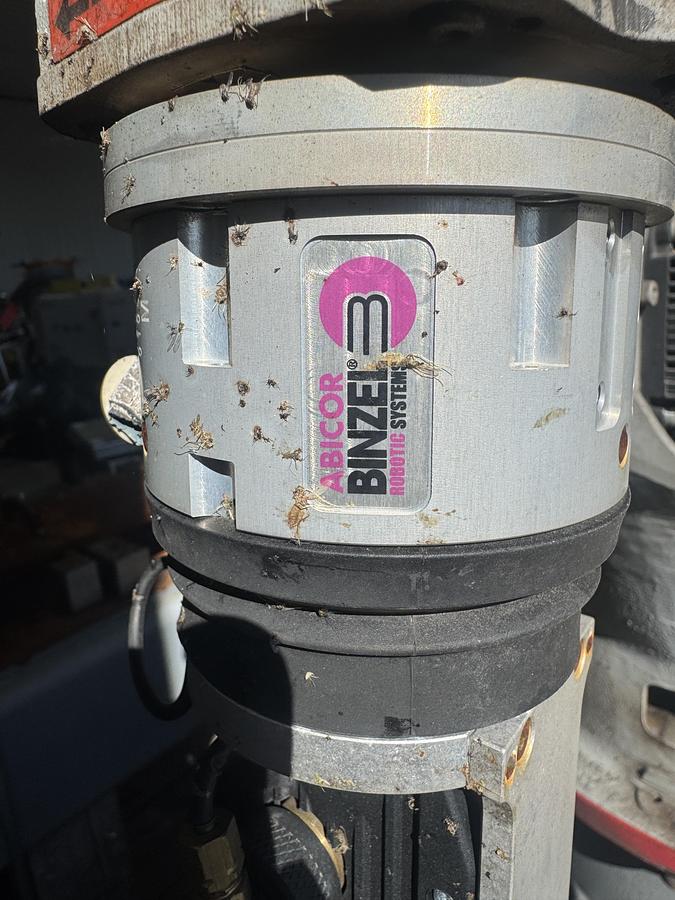

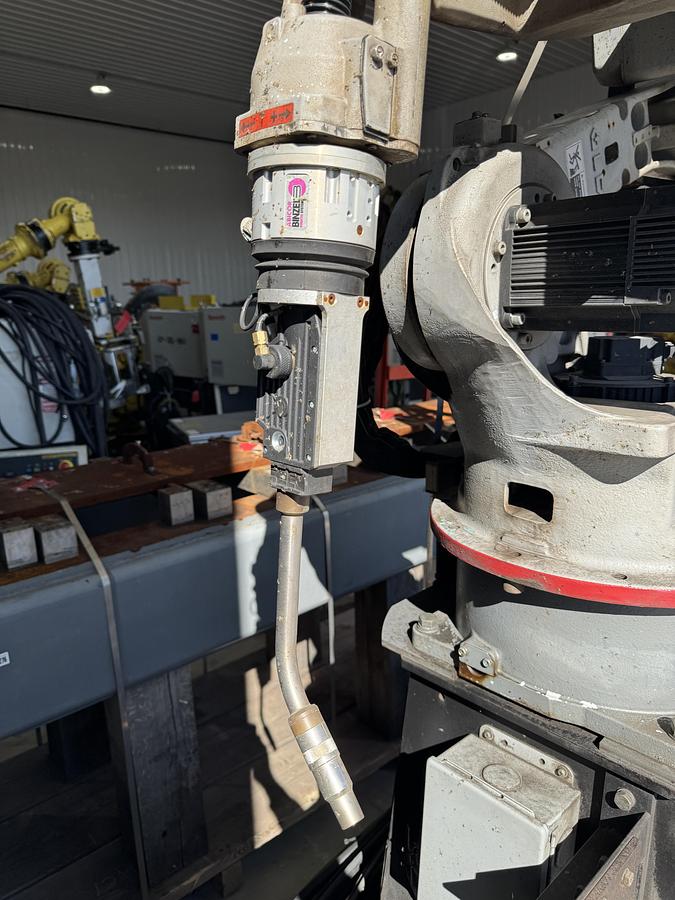

BINZEL WELDING TORCH
