FANUC Arcmate 120iC Robot, R-30iB Control, Used, 2011

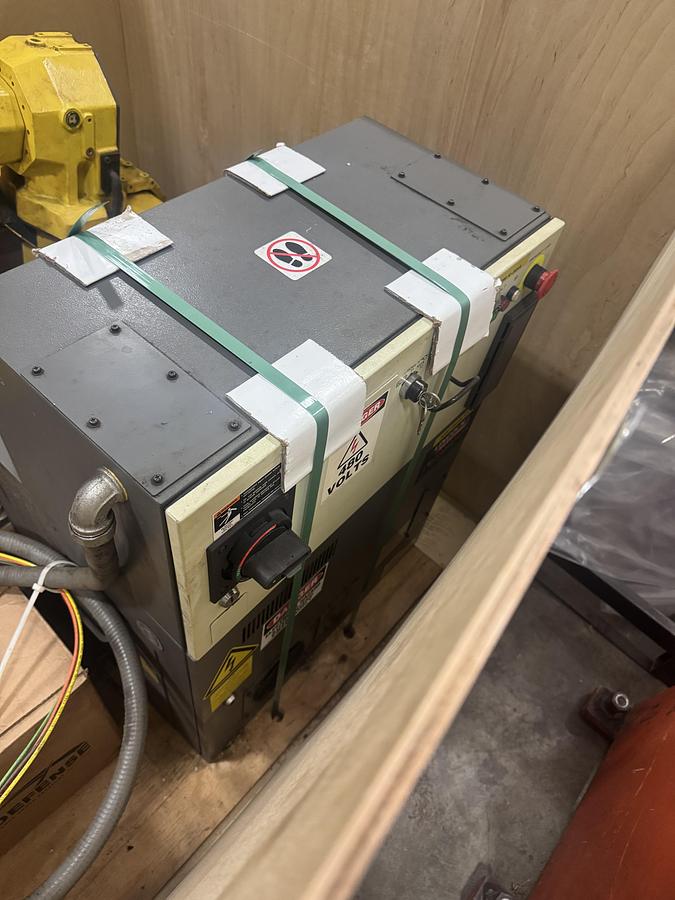

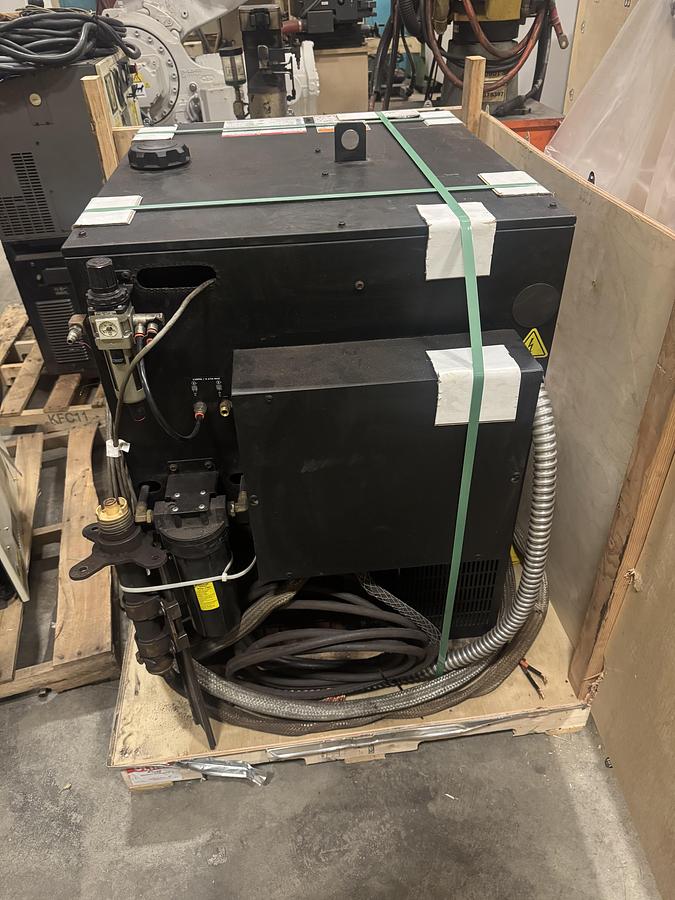

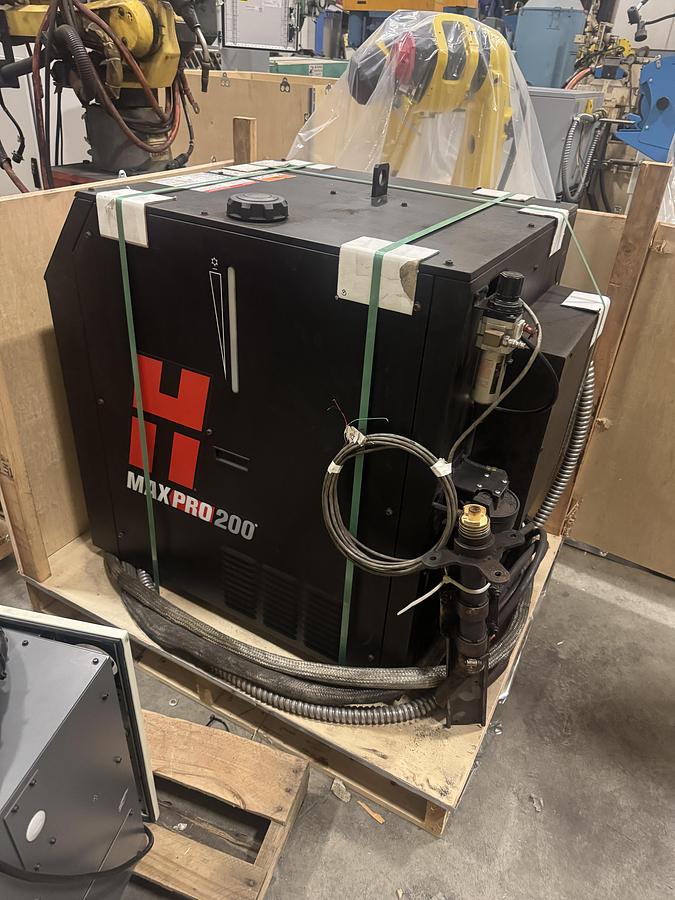

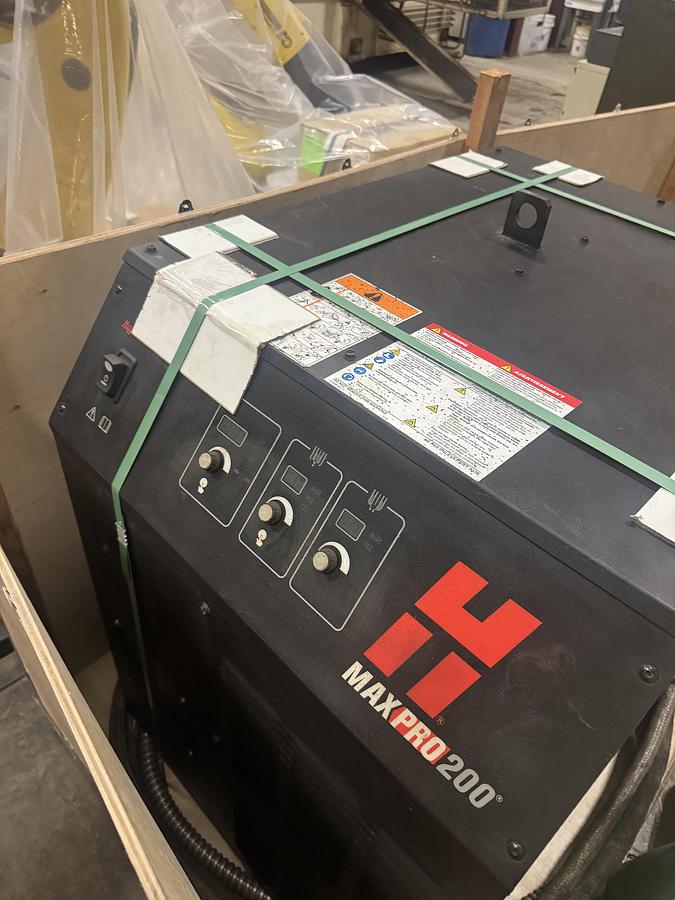

This used FANUC Arcmate 120iC (2011) is a robot available from R.A.B. Industries. It is equipped with the R-30iB controller. 1- USED FANUC ARCMATE 120iC ROBOT WITH R30iA CONTROLLER, HYPERTHERM MAX PRO 200 PLASMA CUTTER, TEACH PENDANT, AND CABLES. SERIAL NUMBER: F113979 DATE OF MFG: 06/2011 STK# 105390 SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER: The ARC Mate 120iC FANUC robot can be controlled by a wide range of controllers such as the R-30iA, the R-30iB, the R-30iB Mate Cabinet, the R-30iB A-Cabinet, the R-30iB B-Cabinet, or the R-30iB iPendant touch. It also has a built-in collision detection system keeps it from running into external objects, endangering themselves or other equipment. Robot Specifications: Axes: 6 Payload: 20kg H-Reach: 1811mm Repeatability: ±0.08mm Robot Mass: 250kg Structure: Articulated Mounting: Floor, Inverted, Angle Robot Motion Speed: J1 195 °/s (3.4 rad/s) J2 175 °/s (3.05 rad/s) J3 180 °/s (3.14 rad/s) J4 360 °/s (6.28 rad/s) J5 360 °/s (6.28 rad/s) J6 550 °/s (9.6 rad/s) Robot Motion Range: J1 ±370° J2 ±260° J3 ±458° J4 ±400° J5 ±360° J6 ±900° Applications: Mig Welding Robots Laser Cutting Robots Laser Welding Robots Orbital Welding Robots Plasma Cutting Robots Plasma Welding Robots Submerged Arc Welding Robots MAG Welding Robots Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about. Hypertherm Max Pro 200 Specifications: Input voltages200/208 VAC, 3-PH, 50 Hz, 108/104 A 220 VAC, 3-PH, 50 – 60 Hz, 98 A 240 VAC, 3-PH, 60 Hz, 90 A 380 VAC, 3-PH, 50 Hz, 57 A 400 VAC, CE, 3-PH, 50 – 60 Hz, 54 A 415 VAC, CE, 3-PH, 50 Hz, 52 A 440 VAC, 3-PH, 50 – 60 Hz, 49 A 480 VAC, 3-PH, 60 Hz, 45 A 600 VAC, 3-PH, 60 Hz, 36 A Output voltage 50 – 165 VDC Maximum output current 200 A Duty cycle rating 100% @ 33 kW, at 40° C (104° F) Operating temperature-10° C to 40° C (+14° F to +104° F) Power factor0.98 @ 33 kW output Maximum OCV: 360 VDC Dimensions 102 cm (40.14") H, 69 cm (27.12") W, 105 cm (41.23") L Weight335 kg (740 lbs) Gas supply Plasma gas:Air, O2, N2 Shield gas: Air, N2 Supply gas pressure: 6.2 +/- 0.7 bar (90 +/- 10 psig) Operating Data: - Virtually dross-free cutting capacity - mild steel 20 mm (3/4") - Production pierce capacity - mild steel 32 mm (1 1/4") - Severance* - mild steel 75 mm (3") - Bevel - 200 amp consumables support 45° bevel capability SEE PHOTOS FOR CHART ON MATERIALS AND SPEEDS Link to Hypertherm Max Pro 200: [MAXPRO200 plasma cutter | Hypertherm](https://www.hypertherm.com/hypertherm/longlife/maxpro200/) [See Our Arc Mate Stock as well as other Robots that lend themselves to Mig Welding Applications](https://www.rabindustries.com/listings?q=FANUC+Arc+Mate).
