FANUC ARCMATE 100iC MIG WELDING CELL WITH A/B SIDED TABLE AND SERVO DRIVEN ROTARY TABLE ON EACH SIDE

FANUC ARCMATE 100iC MIG WELDING CELL WITH A/B SIDED TABLE AND SERVO DRIVEN ROTARY TABLE ON EACH SIDE

Contact us for price

Available quantity: 1

Imlay City, MI

orCall 586-752-0090

Description

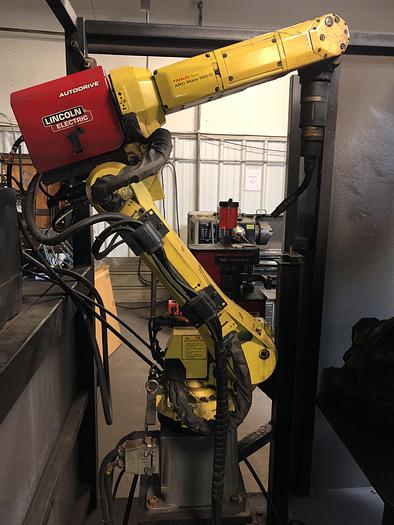

1-USED FANUC ARCMATE ROBOTIC MIG WELDING CELL WITH FANUC R30iA CONTROLLER.

WELD CELL IS CONFIGURED AS A/B SIDED INDEX TABLE.

SERVO DRIVEN WORK HEAD ON EACH SIDE OF THE A/B INDEX TABLE.

DATE OF MFG. 11/2009

STK#104208

=============================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:


The 100iC robot creates a large work area and maintains high speeds throughout, conquering up to 10 kg of payload, all the while using a slim wrist enabling entry into small openings in the work space. In addition, this robot arm moves 15% faster than the other robots in its class and can process large parts and use complex tooling without compromising productivity. The FANUC ARC Mate 100iC is compatible with all major brands of welding equipment and can be interfaced with most types of servo-driven or indexing positioners.


THIS CELL IS SELF CONTAINED ON A COMMON FABRICATED BASE.

EASILY MOVED OR RELOCATED ANYWHERE IN YOUR FACILITY.


Robot Specifications:

Axes: 6

Payload: 10.00kg

H-Reach: 1420.00mm

Repeatability: ±0.0800mm

Robot Mass: 130.00kg

Structure: Articulated

Mounting: Floor, Inverted, Angle


Robot Motion Speed:

J1 210 °/s (3.67 rad/s)

J2 190 °/s (3.32 rad/s)

J3 210 °/s (3.67 rad/s)

J4 400 °/s (6.98 rad/s)

J5 400 °/s (6.98 rad/s)

J6 600 °/s (10.47 rad/s)

Robot Motion Range

J1 ±360°

J2 ±250°

J3 ±447°

J4 ±380°

J5 +380° - 280°

J6 +720° - 540°


Robot Applications:

Arc Welding Robots

Laser Welding Robots

MAG Welding Robots

MIG Welding Robots

Orbital Welding Robots

Oxyacetylene Welding Robots

Plasma Cutting Robots

Plasma Welding Robots

Submerged Arc Welding Robots

TIG Welding Robots


EQUIPPED WITH:

FANUC ARCMATE 100iC WELDING ROBOT

FANUC R30iA CONTROLLER

LINCOLN POWER WAVE 455M WELDING POWER SUPPLY

LINCOLN WIRE FEEDER

LINCOLN SERVO DRIVEN HEADSTOCK'S

LINCOLN TORCH TIP CLEANER

A/B SIDED INDEX TABLE FOR WORK AND LOAD/UNLOAD

ALL CABLES

FANUC TEACH PENDANT


THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.

Specifications

ManufacturerFanuc
ModelFANUC ARCMATE 100iC
Year2009
ConditionUsed
Stock Number104208
