YASKAWA MOTOMAN GP25-12 NEVER USED 6 AXIS ROBOT WITH YRC1000 CONTROL

1-YASKAWA MOTOMAN GP25-12 NEW NEVER USED WITH YRC1000 CONTROL

DATE OF MFG. 2022

STK#105415

=====================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:

FROM THE OEM:

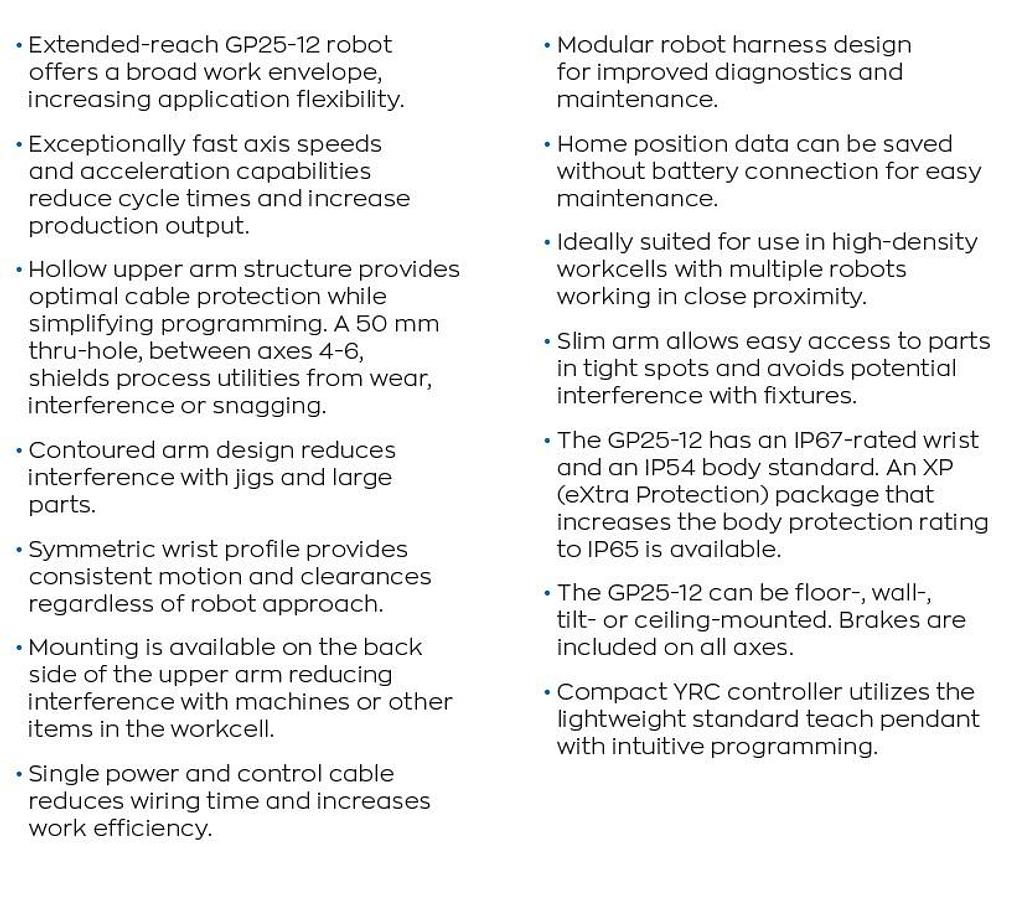

Achieve the high transfer capability of the GP-Series robots for large parts with this extended-reach, space-efficient design. Ideal for use in high-density workcells with multiple robots working in close proximity.

The GP-series robots offer improved acceleration/deceleration control for all robot positions resulting in overall improved productivity. The small footprint, slim arm design allows for minimum installation space and minimizes interference with peripheral devices. Installation is quick and efficient. A single cable is all that is needed to connect the manipulator to the controller, resulting in easy setup and reduced expenses for maintenance and spare parts inventory.

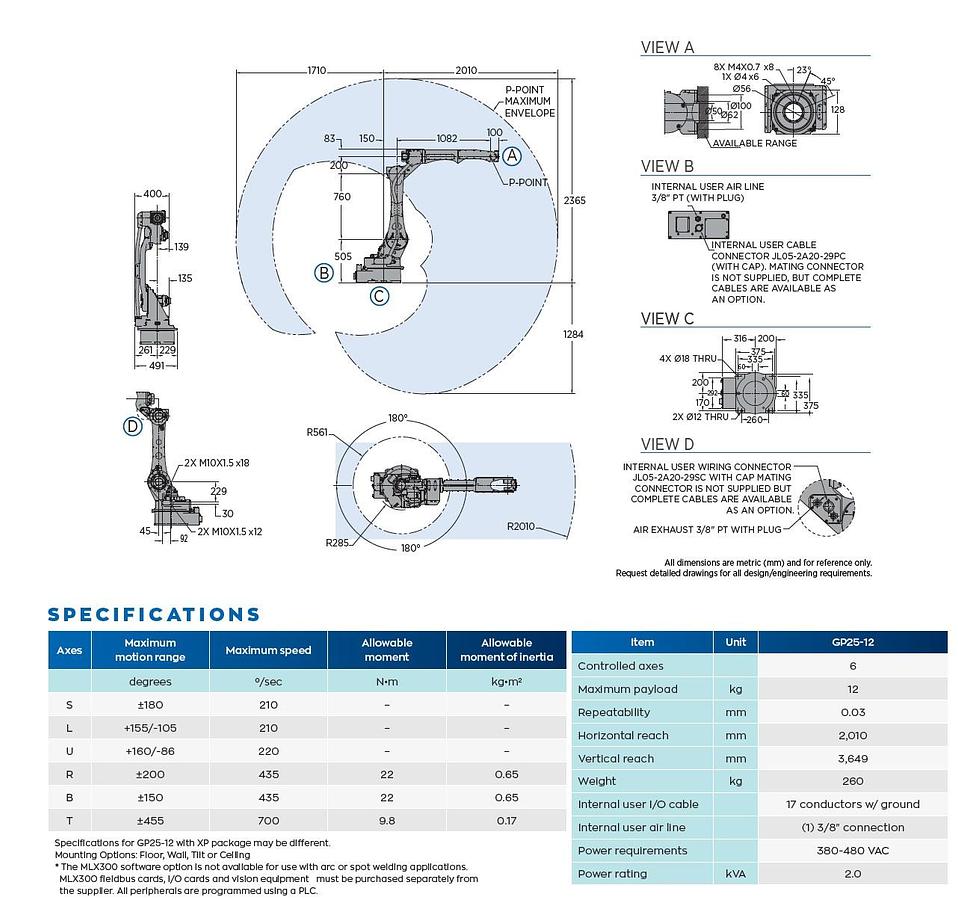

  SPECIFICATIONS:

CONTROLLED AXES 6

MAXIMUM PAYLOAD 12 KG

REPEATABILITY 0.03 MM

HORIZONTAL REACH 2,010 MM

VERTICAL REACH 3,649 MM

MASS 260 KG

INTERNAL USER I/O 17 CONDUCTORS WITH GROUND

INTERNAL AIR LINE (1) 3/8" CONNECTION

STRUCTURE ARTICULATED

POWER REQUIREMENTS 380-480 VAC

POWER RATING 2 KVA

MOUNTING FLOOR, ANGLE, CEILING

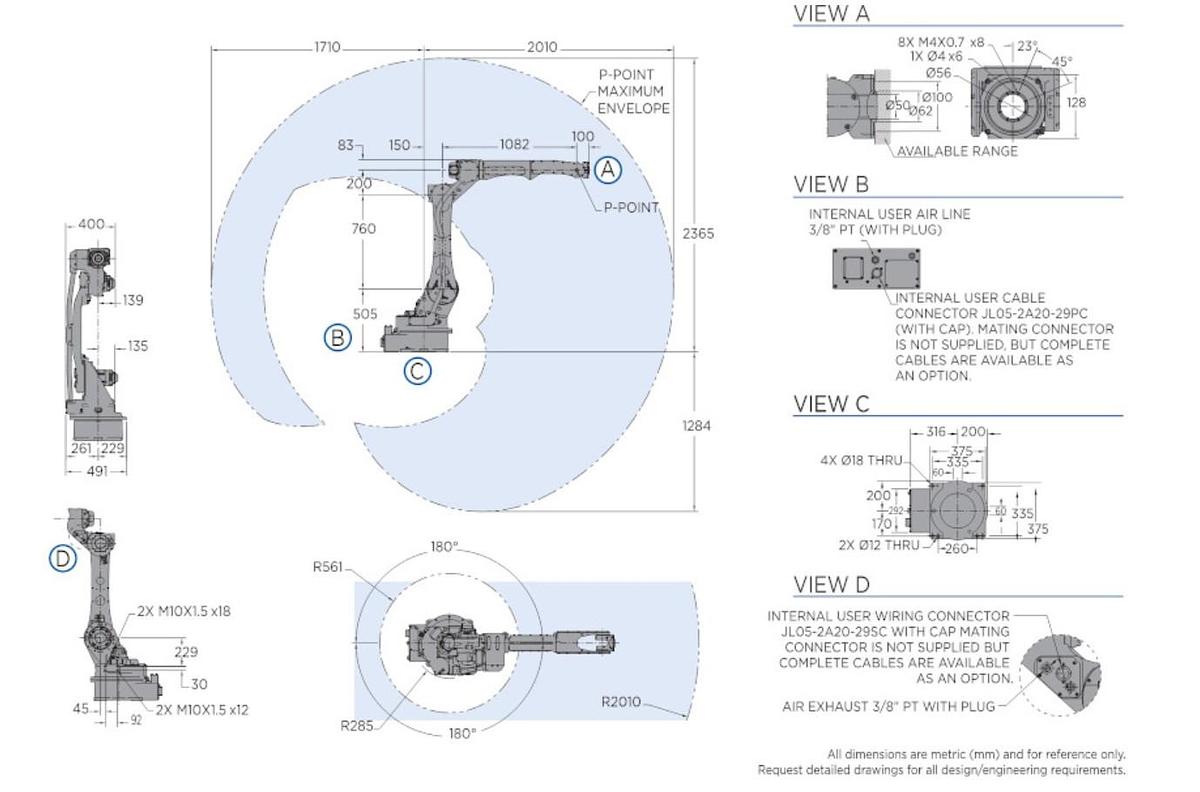

RANGE OF MOTION:

S ±180° L +155/-105°

U +160/-86°

R ±200°

B ±150°

T ±455°

MAXIMUM SPEED:

S 210°/sec

L 210°/sec

U 220°/sec

R 435°/sec

B 435°/sec

T 700°/sec

APPLICATIONS:

ASSEMBLY

MACHINE TENDING

DISPENSING

MATERIAL HANDLING
