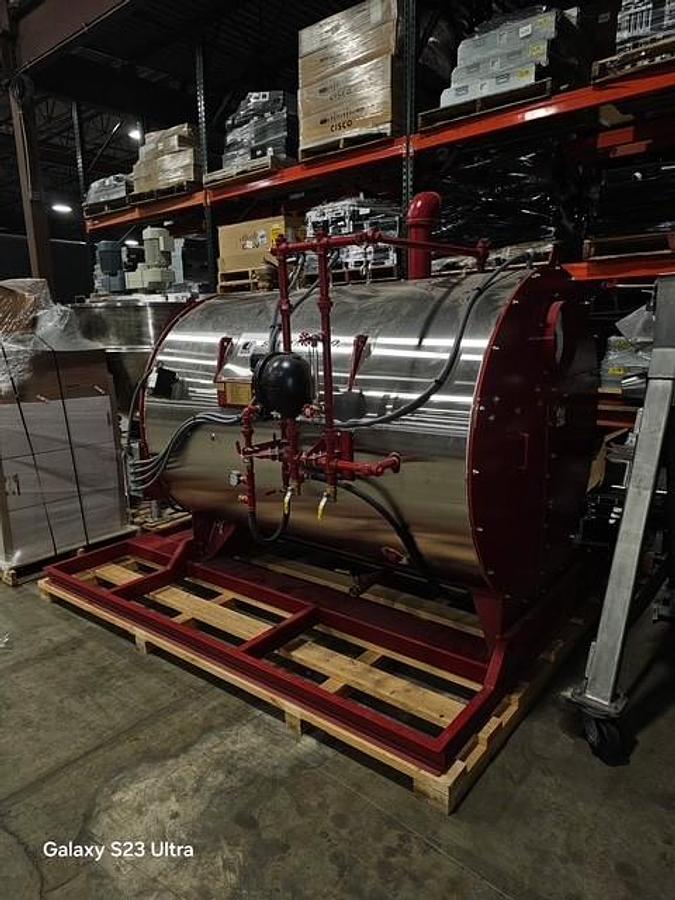

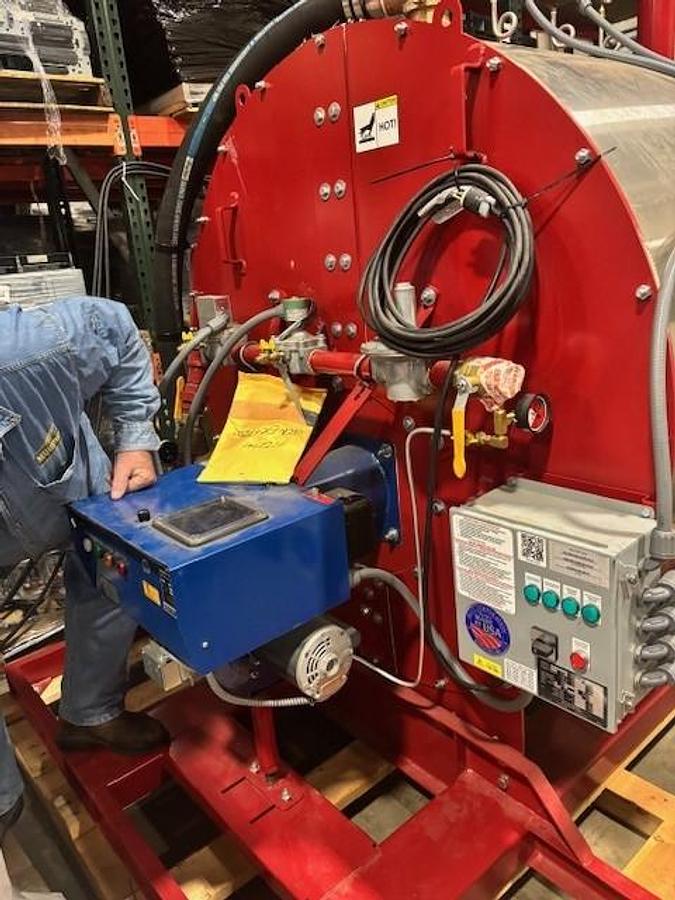

SIOUX SF50G STEAM FLO GENERATOR, NEVER USED, STEAM OUT PUT 1,725 LBS PER HOUR

1-NEVER USED SIOUX SF50G STEAM FLO GENERATOR

SERIAL NUMBER 2208035

DATE OF MFG. 10/2022

STK#105432

=============================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:

Steam-Flo Features Include:

• Maximum steam pressure

- 15 PSI

• Maximum steam temperature - 250°F

• Redundant safety controls: auto reset pressure switch, manual reset pressure switch, ASME

pressure relief valve, pressure gauge, water feeder with level switch, manual reset level switch,

check valve, and inlet water screens

• Full steam production within 5-10 minutes of start-up

• Continuous supply of steam

• NEMA 4 electrical enclosure

• Safety Standards: UL-508A/CSA C22.2#14; ASME Section IV, CRN* (CRN not currently available for

all-electric models SF3.8-E & SF11-E)

* Inlet water pressure requirement – Minimum 40 PSI, Maximum 150 PSI

* Inlet water supply should be minimum 1.5X usage

* Maximum inlet water temperature 120°F (49°C)

Electrical & Mechanical Information

Voltage     Phase     Hertz      Operating Current Amps

115       1       60         10

PERFORMANCE:

Boiler HP 50

Heat Input BTU/Hr 2,000,000

Steam Output Lbs/Hr 1,725

Max Steam Pressure PSIG 15

Max Steam Temperature °F 250

CONNECTIONS:

Water Inlet 3/4” Garden Hose

Steam Outlet 4” NPT

Fuel Inlet 1 1/2” NPT

Flue Size 12”

Vessel Details:

Total Boiler Volume 519 Gallons

Operating Boiler Volume 330 Gallons

Heat Transfer Surface 278 sq ft

Fuel Supply

Fuel Type  LP / NG 22

Fuel Usage GPH / 2,000 CFH

Weight & Dimensions

Weight 5,086 LBS

Length 112" (2845 mm)

Width 87" (2210 mm)

Height 87" (2210 mm)

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.
