1999 ACER AGS-1020AHD

$8,000 (USD)

Almont, MI

orCall 586-752-0090

Description

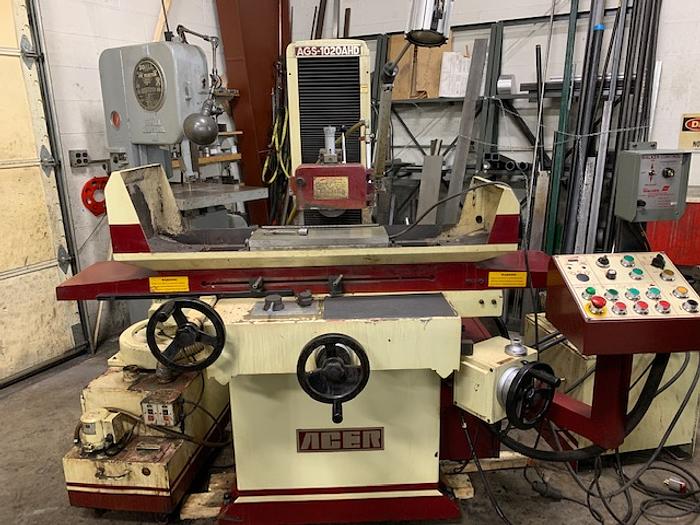

1-USED ACER AGS 1020AHD HIGH PRECISION HYDRAULIC SURFACE GRINDER
DATE OF MFG. 1999
STK# 103730
===========================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

SPECIFICATIONS:
Working Surface of Table (W x L): 9" x 20"
Max. Grinding (W x L): 10" x 20"
Max Table Travel: 20-1/2"
Max. Crossfeed Travel: 11"
Distance Between Table Surface & Spindle Center: 19-3/4"
Variable Speed by Hydraulic Cylinder: 16 - 80 FPM
Automatic Crossfeed Carriage Movement: 0 - 1"
Downfeed Handwheel Dial: Per Graduation 0.0005" - Per
Revolution 0.1"
Crossfeed Handwheel Dial: Per Graduation 0.001" - Per
Revolution 0.2"
Auto Downfeed Micro Adjustment Dial: Per Graduation
0.0001" - Per Revolution 0.01"
Longitudinal Travel (from - to): 6 - 20"
Crossfeed Travel (from - to): 0 - 10"
Spindle Motor: 2 hp x 2 p
Hydraulic Pump Motor: 2 hp x 4 p
Auto Crossfeed Motor: 1/5 hp x 6 p
Grinding Wheel (O.D. x T x I.D.): 8" x 1-1/4" x 1/2" (3/4)
Rotation Speed of Spindle (Horizontal): 3500 RPM / 60 HZ
Flow Rate of Coolant Pump: 40 L/Min
Max Load Capacity in Addition to Magnetic Chuck: 700 lbs.
FEATURES:
Reinforced high column & heavyweight Meehanite casting.
Direct drive spindle equipped with 4 ABEC-7 angular contact
ball bearings
Spindle motor: 2 HP
10" x 20" Grinding capacity
3 Axis Automatic movement
Auto surface & plunge downfeed

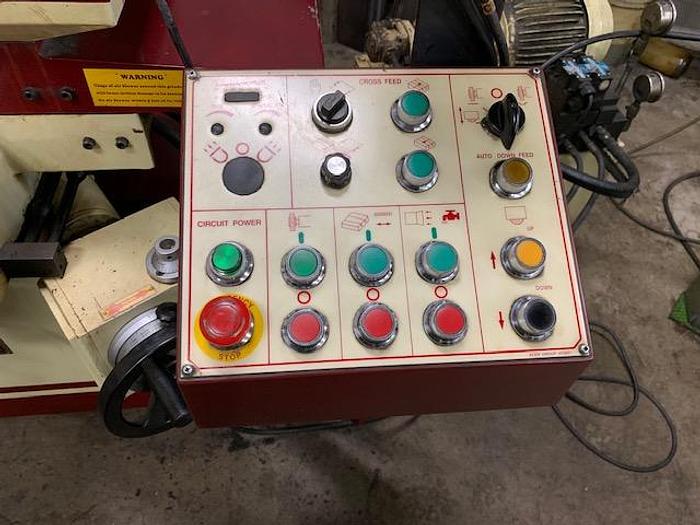

24 volt circuit control.
Double-V crossfeed ways; one V, one flat table ways.

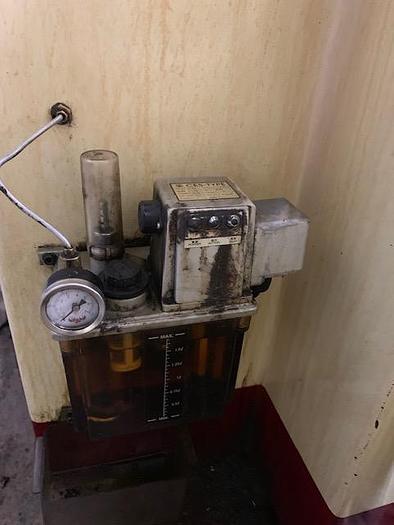

Auto-lube system.
Dual hydraulic pump system: one for the auto incremental
downfeed and one for the table longitudinal travel
Large volume hydraulic tank.
Double nut design for crossfeed leadscrew
19 3/4" \ 23 1/2" from table top to the center of spindle.
Extra wide saddle at 24 1/2" and 30 1/2" each.

EQUIPPED WITH:

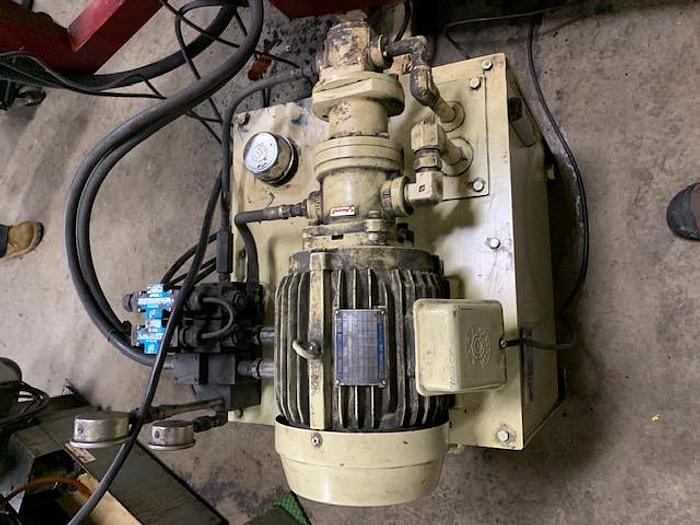

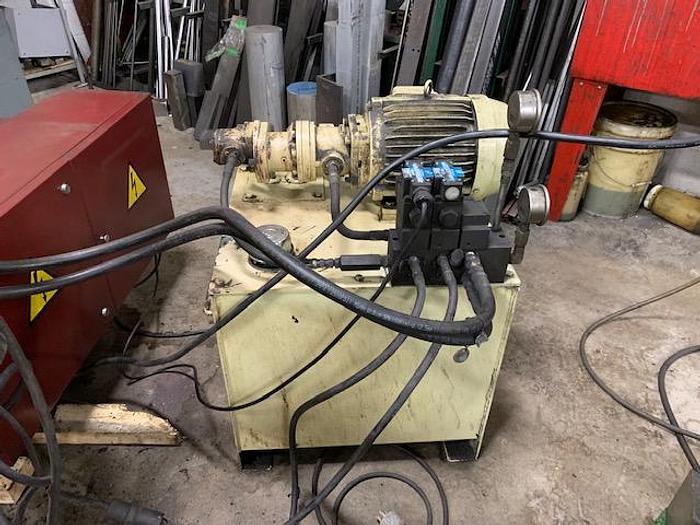

EXTERNAL HYDRAULIC UNIT

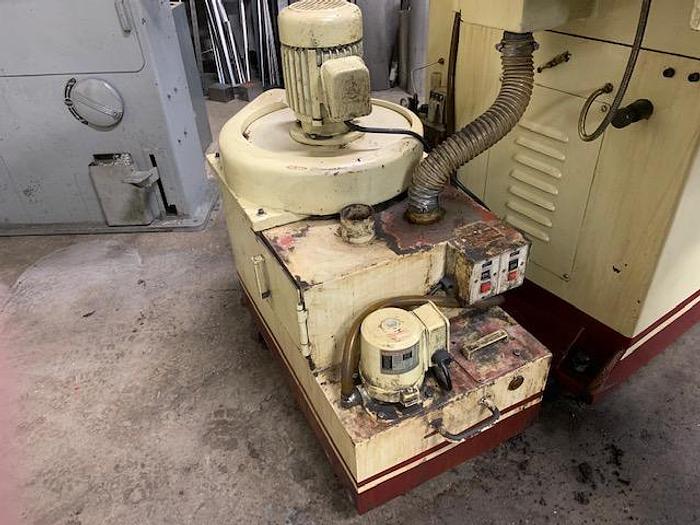

EXTERNAL COOLANT FILTRATION SYSTEM
VARIABLE MAG. CHUCK CONTROL

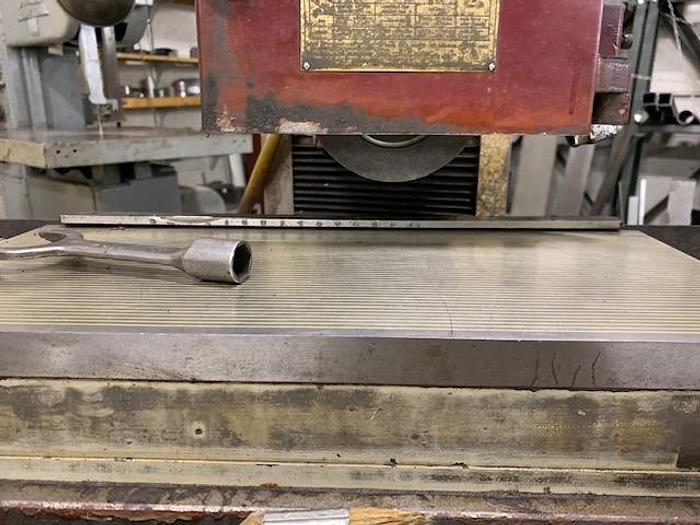

FINE LINE MAG. CHUCK

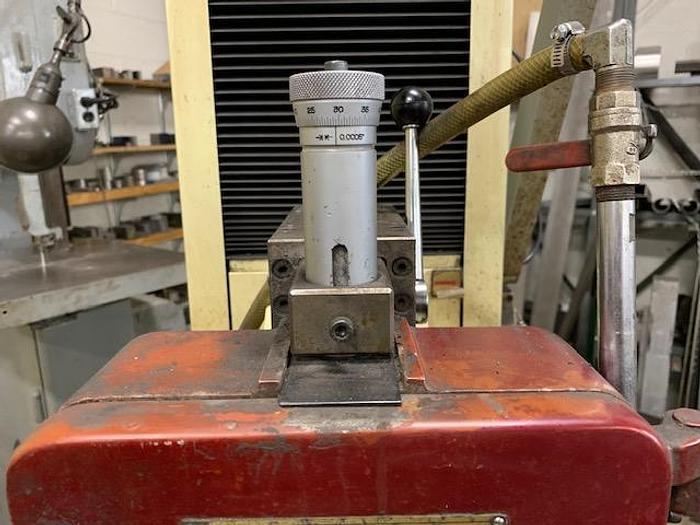

OVER HEAD WHEEL DRESSER

OWNER WANTS SOLD SURPLUS TO ONGOING OPERATIONS INSPECT UNDER POWER

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND
BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS
AND CONDITIONS.

WWW.RABIND.COM
586-752-0090

Specifications

ManufacturerACER
ModelAGS-1020AHD
Year1999
ConditionUsed
Stock Number103730
