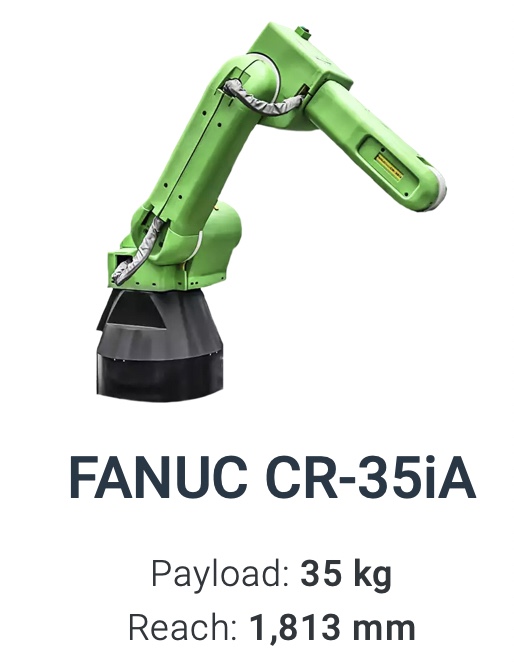

A FANUC CR-35iA is the highly advanced collaborative robot. With a payload of 35kg, this collaborative robot has the heaviest payload compared to their competition. The CR35iA has soft covers that makes it comfortable to touch and protects against any pinch points. Its integrated safety sensor will make it stop instantly if it senses touch, and has been approved by the TUV ISO 10218-1-2011, Category 3, PL=d. Because of its increased payload capacity the CR-35iA can be deployed across a wide range of applications.


Robot Specifications:

Axes: 6

Payload: 35kg

H-Reach: 1813mm

Repeatability: ±0.08mm

Robot Mass: 990kg

Structure: Articulated

Mounting: Floor


Robot Motion Speed:

J1 250 °/s (4.36 rad/s)

J2 250 °/s (4.36 rad/s)

J3 250 °/s (4.36 rad/s)

J4 250 °/s (4.36 rad/s)

J5 250 °/s (4.36 rad/s)

J6 250 °/s (4.36 rad/s)


Robot Motion Range:

J1 ±340°

J2 ±165°

J3 ±312°

J4 ±400°

J5 ±220°

J6 ±900°


Applications:

Assembly Robots

Collaborative Robots

Machine Loading Robots

Machine Tending Robots

Material Handling Robots

Order Picking Robots

Packaging Robots

Palletizing Robots

Part Transfer Robots

Pick and Place Robots


Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
