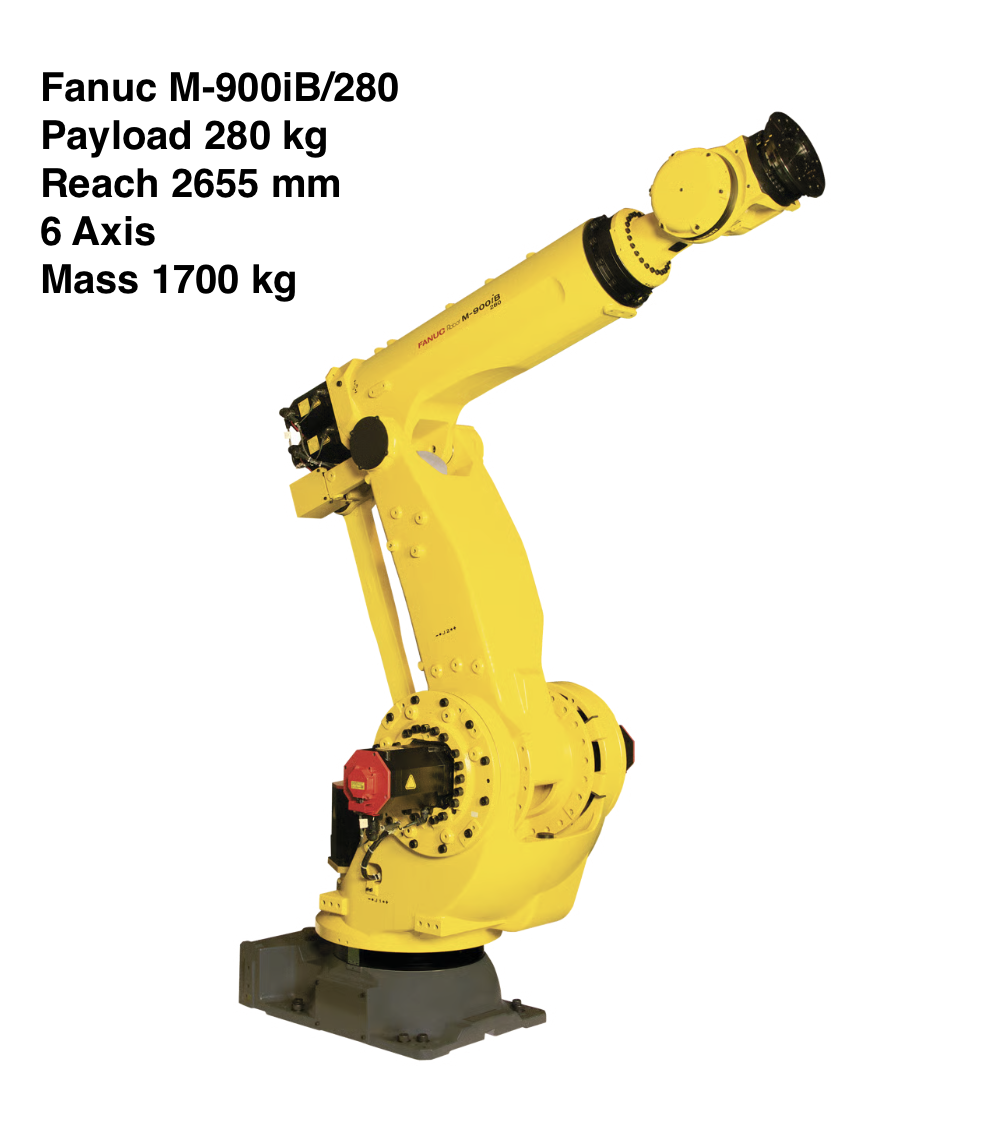

Based on the extremely capable M-900iB/360, the M-900iB/280 features a completely redesigned J3 arm to provide maximum stiffness. The M-900iB/280 has been tested to ISO 9283 rigidity standards and exhibits a very high level of static compliance. This makes it ideally suited to operations where pressure is applied to the tool and accuracy essential. The M-900iB/280 is paired with the Fanuc R-30iB or R-30iB Plus Control platform.

Specifications:

PAYLOAD 280 kg

REACH 2655 mm

AXES 6

REPEATABILITY 0.3 mm

MASS 1700 kg

STRUCTURE Articulated

MOUNTING Floor

Motion Speed:

J1 110 °/s (1.92 rad/s)

J2 105 °/s (1.83 rad/s)

J3 100 °/s (1.75 rad/s)

J4 110 °/s (1.92 rad/s)

J5 110 °/s (1.92 rad/s)

J6 180 °/s (3.14 rad/s)

Motion Range:

J1 ±370°

J2 ±151°

J3 ±224°

J4 ±720°

J5 ±250°

J6 ±720°

Applications:

Robotic Material Handling Systems,

Industrial Drilling Robots for Automated Machining,

Material Removal and Finishing Robots,

Routing Robots

Spot Welding Robots
