2013 FANUC FANUC P250iB/15 WITH FANUC R30iB CONTROLLER 2,800 MM X 15KG PAINT ROBOT

Sold

2013 FANUC FANUC P250iB/15 WITH FANUC R30iB CONTROLLER 2,800 MM X 15KG PAINT ROBOT

Available quantity: 1

Imlay City, MI

Description

1-USED FANUC P-250iB/15 PAINT ROBOT WITH R30iB CONTROLLER 2800 MM X 15KG

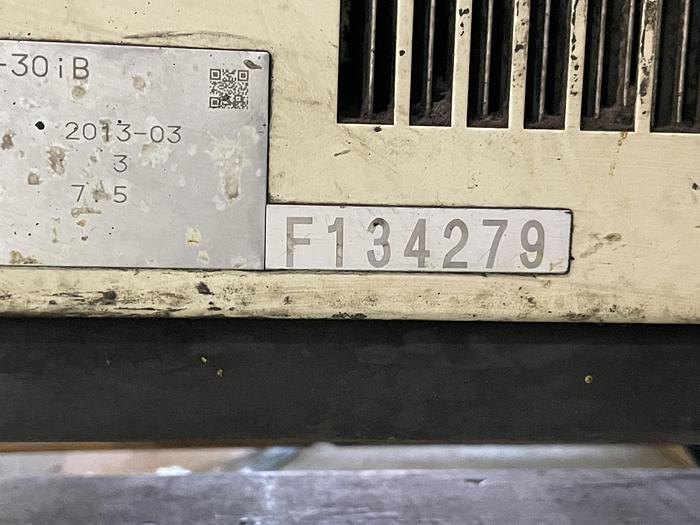

SERIAL NUMBER F134279

DATE OF MFG. 03/2013

STK#104501

================================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:


This is one of the industry's best robots for your large and mid-size painting needs, the FANUC P-250iB/15 has a large handling capacity and generous 2,800 mm work envelope. It can tackle almost any application necessary as it has a large variety of features and an easily integrated equipment design. The P-250iB/15 has patented hollow wrists and through the arm hose routing to help maintain a clean application environment and achieve top quality product. Furthermore, this P-250iB/15 provides the flexibility to keep precise target distances and gun orientations over the largest of parts to further maximize consistency and overall quality. Paired with the R-30iB controller, this painting robot is sure to get your job done quickly and accurately.


Robot Specifications:

Axes:

6

Payload:

15kg

H-Reach:

2800mm

Repeatability:

±0.2mm

Robot Mass:

530kg

Structure:

Articulated

Mounting:

Floor, Inverted, Angle


Robot Motion Speed:

J1

160 °/s (2.79 rad/s)

J2

160 °/s (2.79 rad/s)

J3

160 °/s (2.79 rad/s)

J4

375 °/s (6.54 rad/s)

J5

430 °/s (7.5 rad/s)

J6

545 °/s (9.51 rad/s)

Robot Motion Range:

J1

±320°

J2

±280°

J3

±330°

J4

±1080°

J5

±1080°

J6

±1080°


Equipped with:

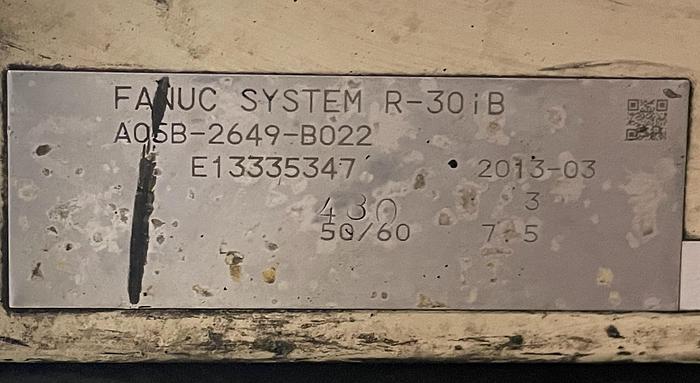

FANUC R30IB ROBOT CONTROLLER

FANUC ROBOT CONECTION CABLES

FANUC ROBOT TEACH PENDANT


FOB TRUCK, IMLAY CITY, MI 48444

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.

Specifications

ManufacturerFANUC
ModelFANUC P250iB/15
Year2013
ConditionUsed
Serial NumberF134279
Stock Number104501
