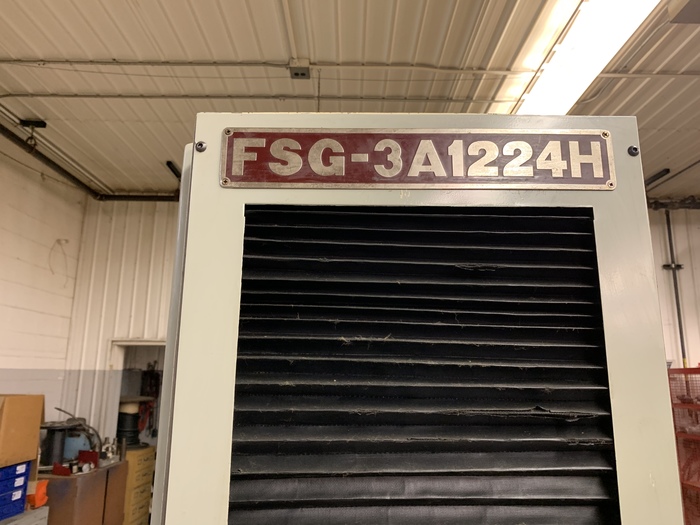

CHEVALIER 12" X 24" HYDRAULIC SURFACE GRINDER MODEL FSG-3A1224H

$12,500 (USD)

Almont, MI

orCall 586-752-0090

Description

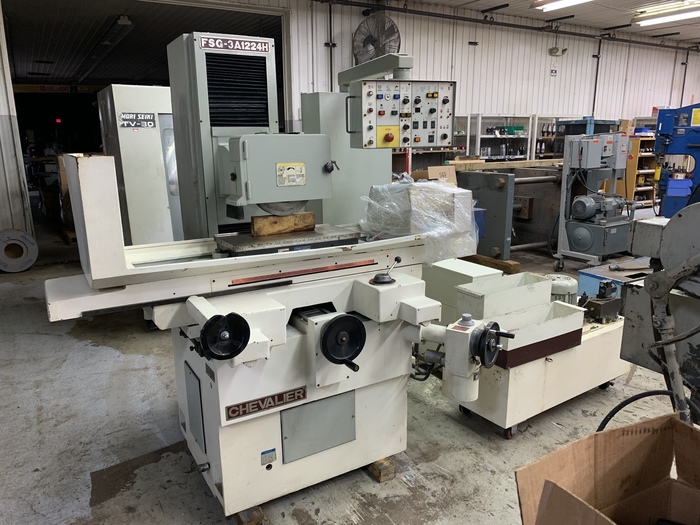

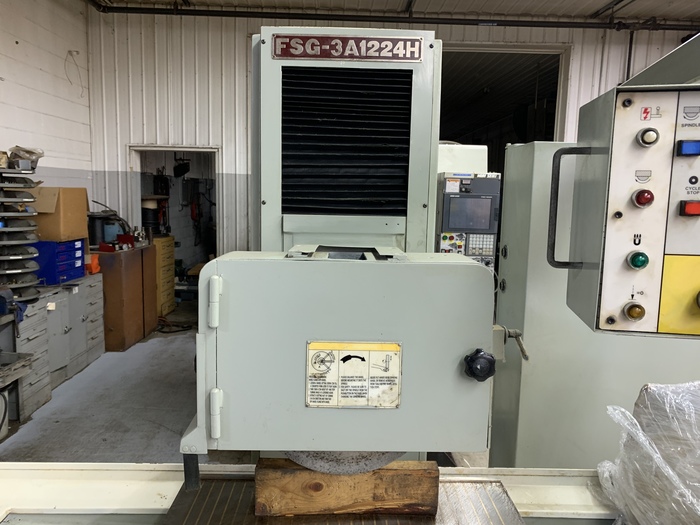

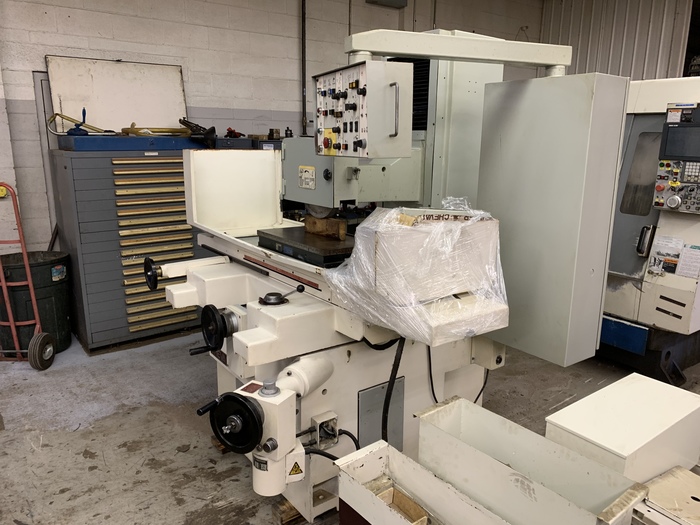

1-USED CHEVALIER 12" X 24" HYDRAULIC SURFACE GRINDER MODEL FSG-3A1224H

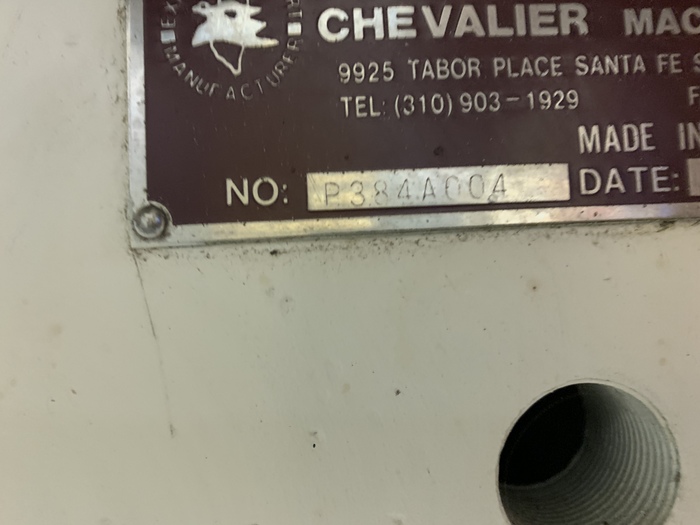

SERIAL NUMBER P384A004
DATE OF MFG. NOT KNOWN
STK#103804
========================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

distance spindle-table: 600 mm
table: 610 x 305 mm
grinding area: 610 x 305 x 600 mm
magnetic chuck: 300 x 600 mm
table movement hydraulic: 650 mm
table movement manual: 700 mm
table speed: 5 - 25 m/min
cross feed rapid travel approx.: 1.100 mm/min
aut. cross feed incremental: 1 - 12 mm
max. aut. cross feed: 360 mm
max. man. cross feed: 370 mm
crossfeed per handwheel revolution: 4 mm
crossfeed per handwheel graduation: 0,02 mm
aut. feed: 0,002 - 0,04 mm
feed per handwheel revolution: 2 mm
feed per handwheel graduation: 0,01 mm
rapid feed approx: 330 mm/min
fine feed per handwheel revolution: 0,2 mm
fine feed per handwheel graduation: 0,002 mm
spindle speed: 1.450 U/min
spindle drive: 3,7 kW
hydraulic drive: 1,5 kW
crossfeed drive: 0,004 kW
elevating drive: 0,19 kW
grinding wheel dimensions: 355 x 50 x 127 mm
motor: 7,4 kW
length: 2.670 mm
width: 1.810 mm
height: 2.050 mm
weight: 2.100 kg

EQUIPPED WITH:

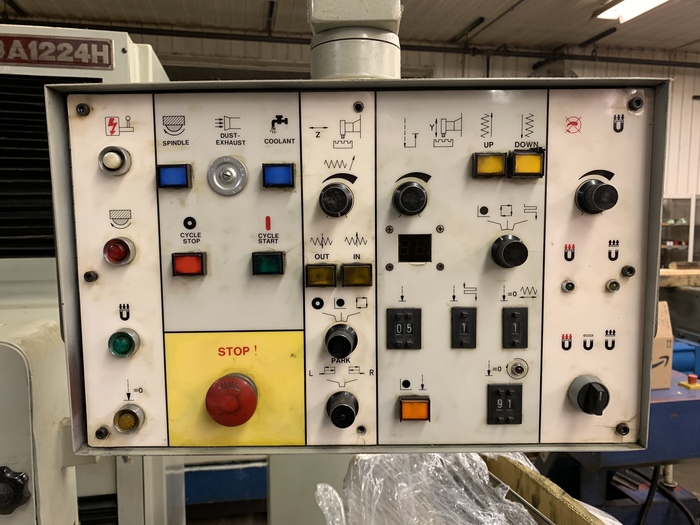

PROGRAMMABLE CYCLES

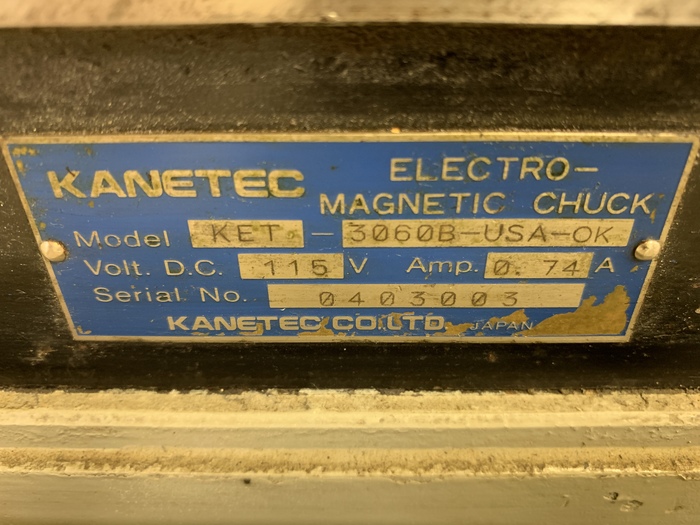

KANETEC ELECTRO-MAGNETIC VARIABLE POWER 12" X 24" CHUCK

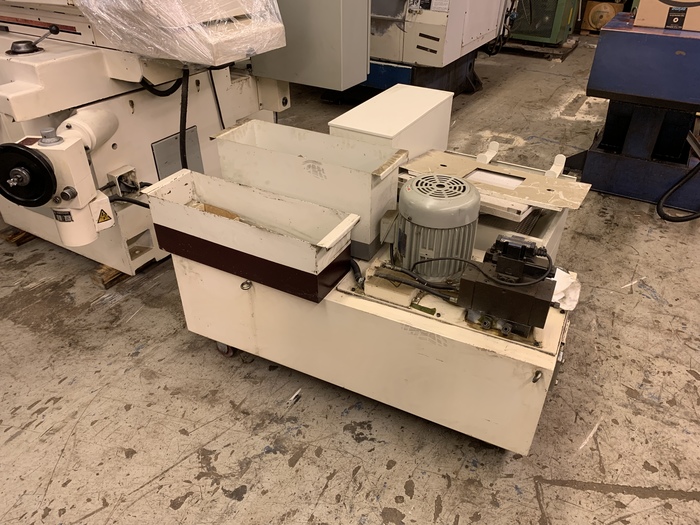

COOLANT FILTRATION SYSTEM

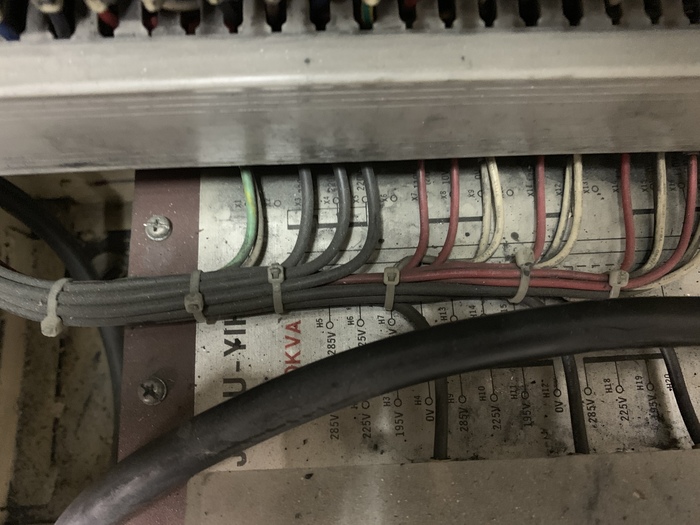

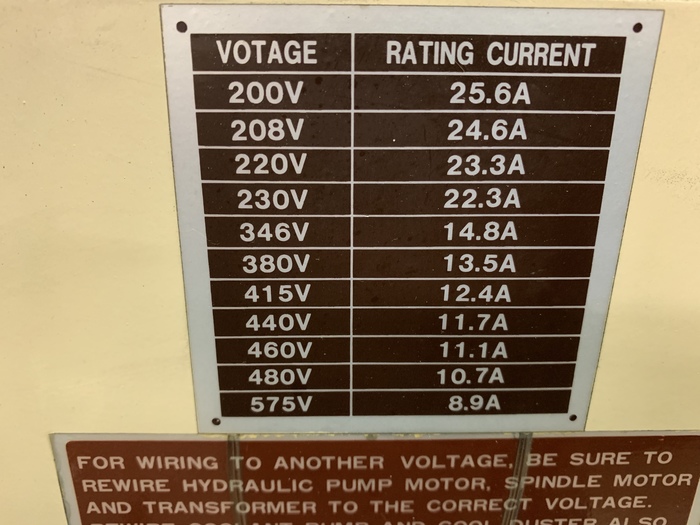

MUTI-TAP TRANSFORMER

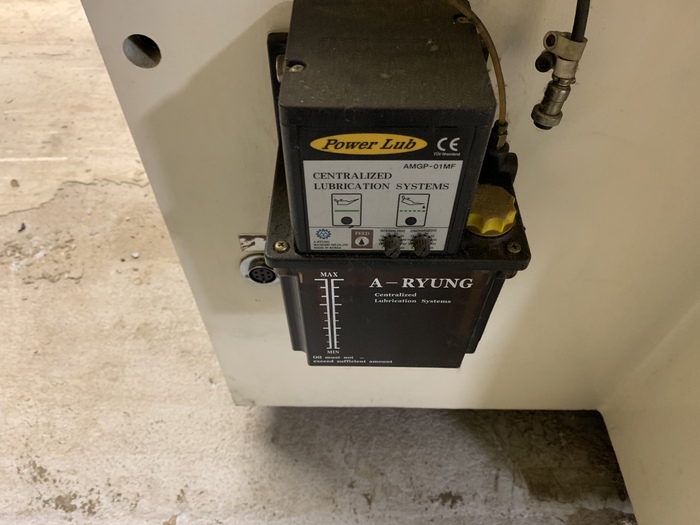

A-RYUNG AUTOMATIC LUBRICATION SYSTEM

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND
BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS
AND CONDITIONS.

Specifications

ManufacturerCHEVALIER
ModelFSG-3A1224H
ConditionUsed
Serial NumberP384A004
Stock Number103804
