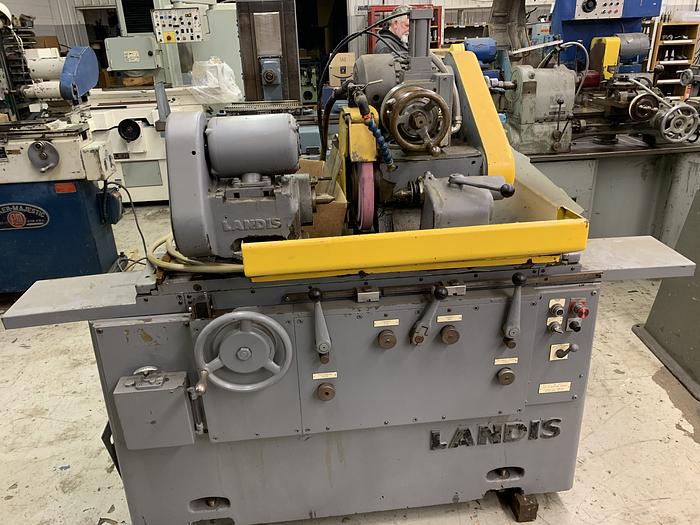

LANDIS TYPE 1R UNIVERSAL 10" X 20" OD GRINDER

$6,000 (USD)

Almont, MI

orCall 586-752-0090

Description

1-USED LANDIS 1R UNIVERSAL CYLIDRICAL OD GRINDER 10" X 20"
SERIAL NUMBER 826-27
DATE OF MFG. 1967
STK#103810
============================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

NOMINAL SWING OVER TABLE 10"
MAXIMUM SWING OVER TABLE 10-7/8"
NOMINAL DISTANCE BETWEEN CENTERS 20"
HYDRAULIC TABLE TRAVERSE 2" TO 240" IPM
TRAVERSE PER TURN OF HAND WHEEL 0.200"
TRAVERSE HAND WHEEL GRADUATIONS 0.001"
SWIVEL TABLE GRADUATED 20 DEGREES, 4" PER FOOT
WHEEL HEAD:
WHEEL HEAD SWIVELS LEFT & RIGHT OF CENTER 90 DEG.
WHEEL SIZE 16" DIAMETER
MAXIMUM WIDTH, FULL WHEEL 3"
MAXIMUM HYDRAULIC INFEED - ON DIAMETER 0.090"
RAPID INFEED STROKE 1"
MINIMUM FEED GRADUATIONS - ON DIAMETER 0.000050"
WORK DIAMETER REDUCTION PER REVOLUTION OF HAND WHEEL 0.100"
WORK DIAMETER REDUCTION PER REVOLUTION OF FINE FEED KNOB 0.001"
WHEELHEAD MOTOR 3 HP
WORKHEAD:
WORKHEAD SWIVELS TOWARD WHEELHEAD 90 DEGREES
WORKHEAD SWIVELS AWAY FROM WHEELHEAD 30 DEGREES
WORKHEAD SPINDLE SPEEDS (6) 60 TO 600 RPM
WORKHEAD SPINDLE NOSE A2-5"
WORKHEAD MOTOR 1/4 HP
APPROXIMATE WEIGHT 4,150 LBS
APPROXIMATE DIMENSIONS 8'L X 4'W X 6'6"HT
EQUIPPED WITH:
TABLE TARRY LEFT & RIGHT
16" GRINDING WHEEL
UNIVERSAL WHEELHEAD AND UNIVERSAL WORKHEAD
HYDRAULIC TABLE TRAVERSE
AUTO INFEED @ TABLE REVERSALS
AUTO PLUNGE FEED
POWER RAPID WHEELHEAD ADVANCE & RETRACTION
SPARKOUT TIMER
COLLET ATTACHMENT, MOUNTED ON WORKHEAD
HARD FILM MICROSHERE GRINDING WHEEL SPINDLE BEARINGS
CARRIAGE AND WHEELHEAD WAYS ARE AUTOMATICALLY LUBRICATED

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND
BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS
AND CONDITIONS.

WWW.RABIND.COM
586-752-0090

Specifications

ManufacturerLANDIS
Model1R
Year1967
ConditionUsed
Serial Number826-27
Stock Number103810
