CARLTON 4' X 13" COLUMN RADIAL DRILL WITH 3A PRE-SELECT HEAD

Contact us for price

Almont, MI

orCall 586-752-0090

Description

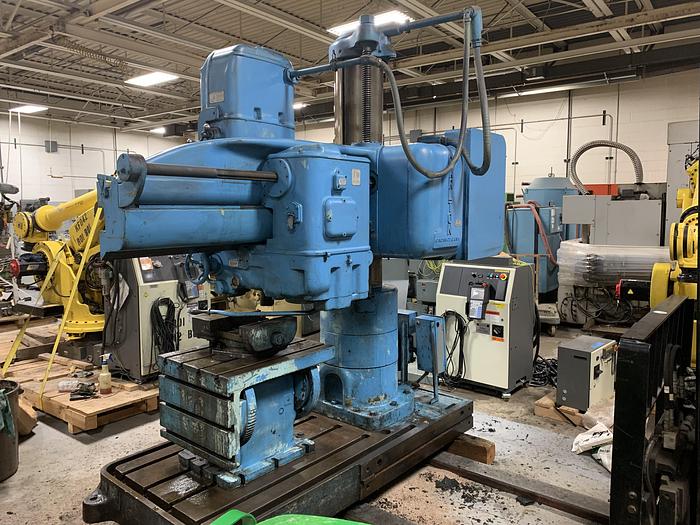

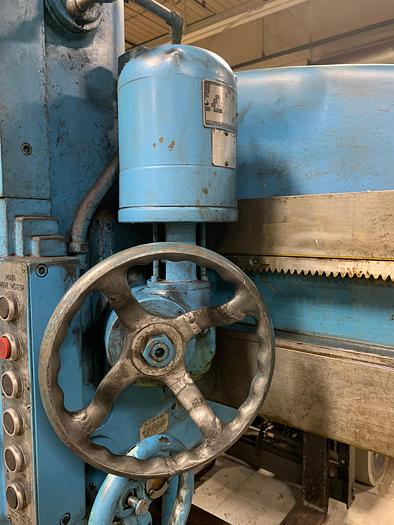

1-USED CARLTON 4' X 13" RADIAL DRILL WITH 3A PRE-SELECT HEAD
SERIAL NUMBER 3A-4542
APPROX. DATE OF MFG. 1960
STK#103812
========================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

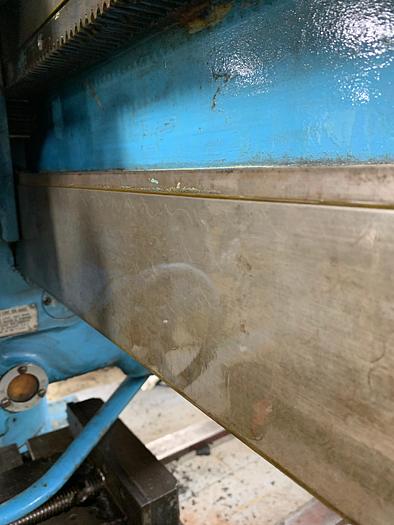

ARM LENGTH 4'
COLUMN DIAMETER 13"
FACE OF COLUMN TO CENTER OF SPINDLE 15" MIN., 48" MAXIMUM
SPINDLE RADIUS MAX. 4'11"
SPINDLE RADIUS MIN. 26"
SPINDLE TO BASE MAX. 5'
SPINDLE TO BASE MIN. 10 1/2"
WORKING SURFACE OF BASE 4'5" LONG X 3'6" WIDE T-SLOTTED
HEIGHT OF BASE 8"
VERTICAL TRAVEL OF SPINDLE IN HEAD 18"
BEARING BEARING OF HEAD ON ARM 21 7/8"
BEARING OF ARM ON COLUMN 26 3/4"
HEIGHT OVER HEAD, MAX. 10'1"
SPINDLE DIAMETER 3 3/16"
MORSE TAPER IN SPINDLE #5

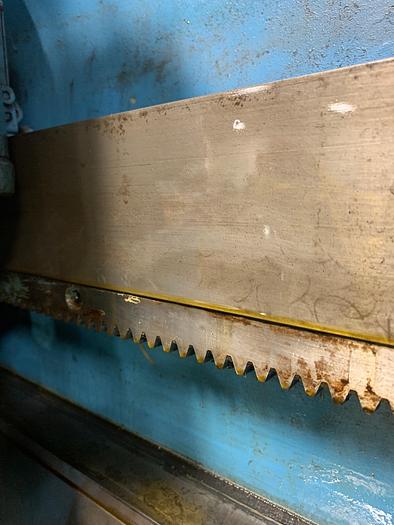

TRAVERSE OF ARM ON COLUMN 2' 7 1/2"
TRAVERSE OF HEAD ON ARM 2'9"
DRILLS TO CENTER OF CIRCLE 8'
SWING OF ARM 6'4"
UNIVERSAL TABLE;
WORKING SURFACE OF TOP 24" X 30"
WORKING SURFACE OF SIDE 18" X 24"
HEIGHT 24"

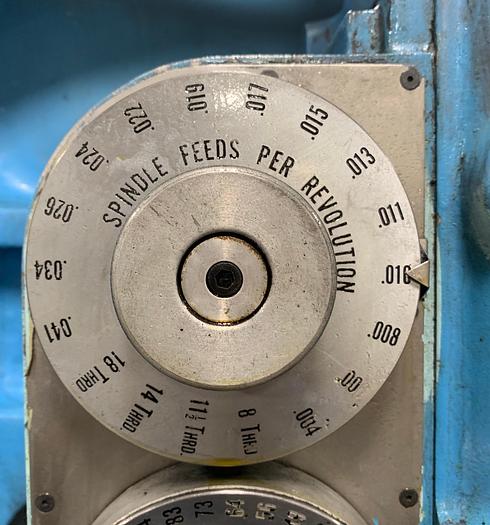

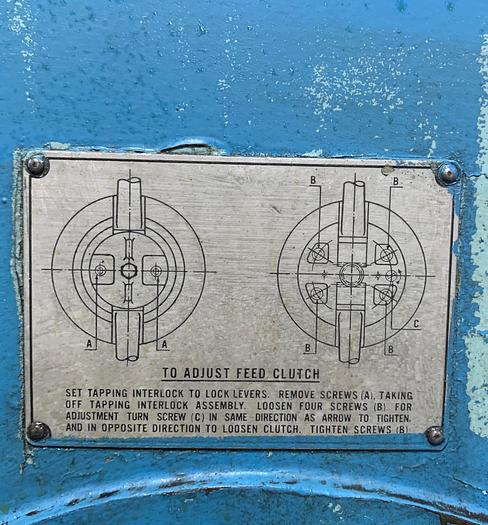

FEEDS AND TAP LEADS 18 CHANGES .004 TO .125 IPR
TAP LEADS OF 8-11 1/2 -14-18 THREADS

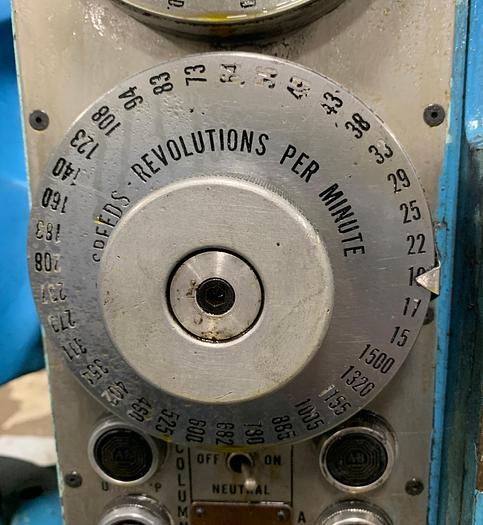

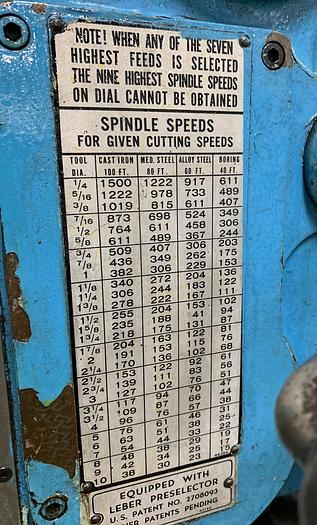

SPINDLE SPEEDS 15-1500 RPM

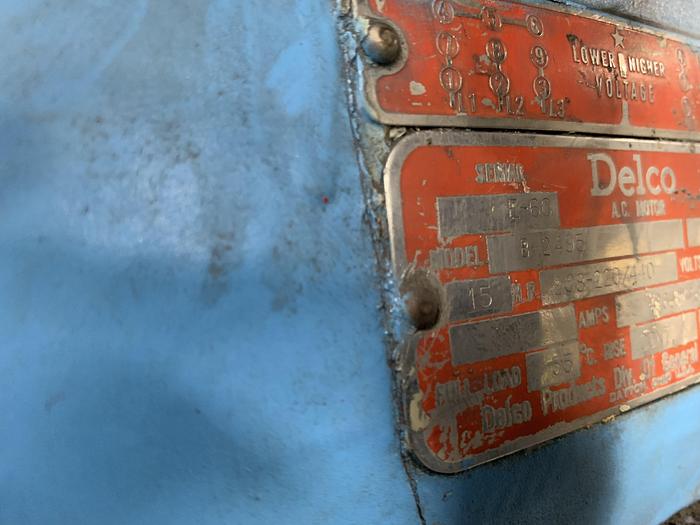

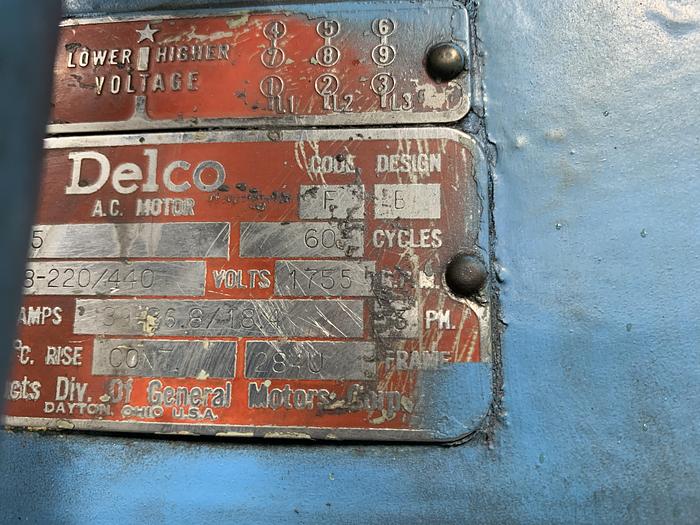

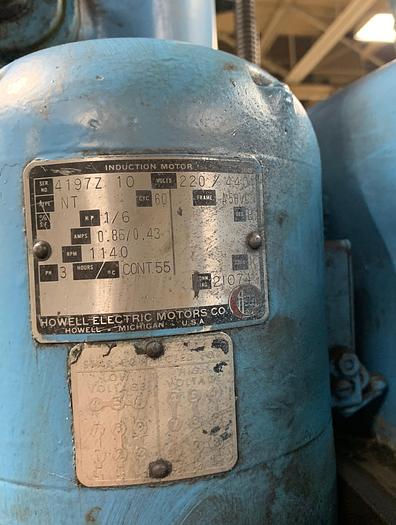

MAIN SPINDLE MOTOR 15 HP
SHIPPING WEIGHT OF MACHINE WITH UNIVERSAL BOX TABLE 16,250 LBS

EQUIPPED WITH:

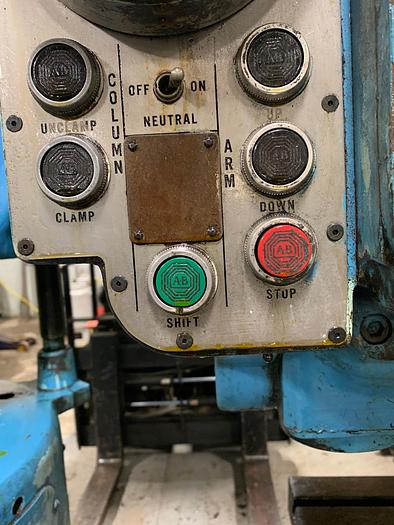

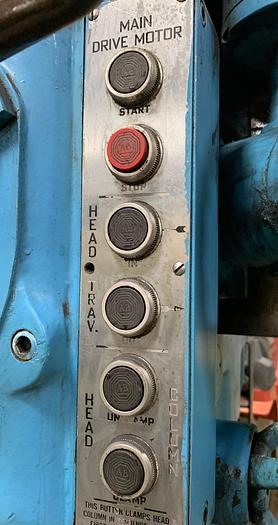

JIC CONTROLS

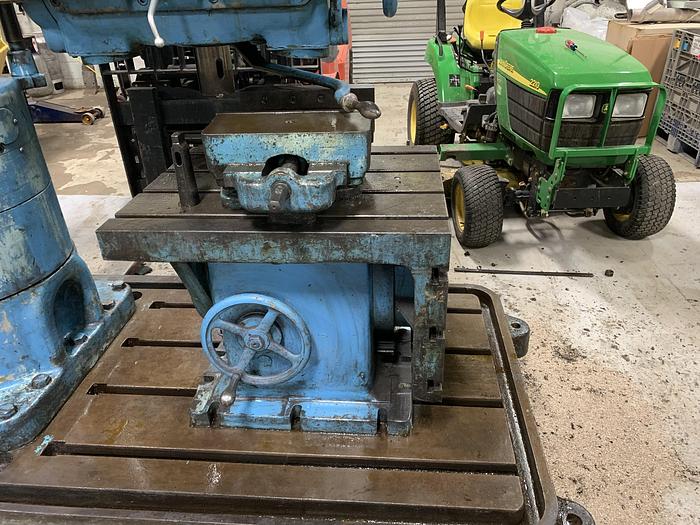

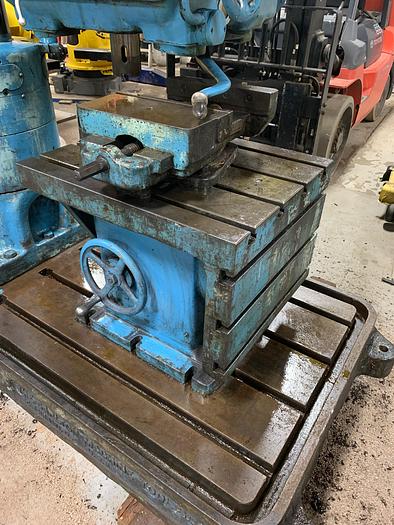

UNIVERSAL BOX TABLE
3A PRE-SELECT HEAD
COOLANT IN BASE
LARGE VISE

FOB TRUCK, ALMONT, MI 48003

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND
BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS
AND CONDITIONS.

WWW.RABIND.COM
586-752-0090

Specifications

ManufacturerCARLTON
Model3A PRE-SELECT
Year1960
ConditionUsed
Serial Number3A-4542
Stock Number103812
