FANUC M410iB/450 PALLETIZING ROBOT

FANUC M410iB/450 PALLETIZING ROBOT

Contact us for price

Available quantity: 1

Imlay City, MI

orCall 586-752-0090

Description

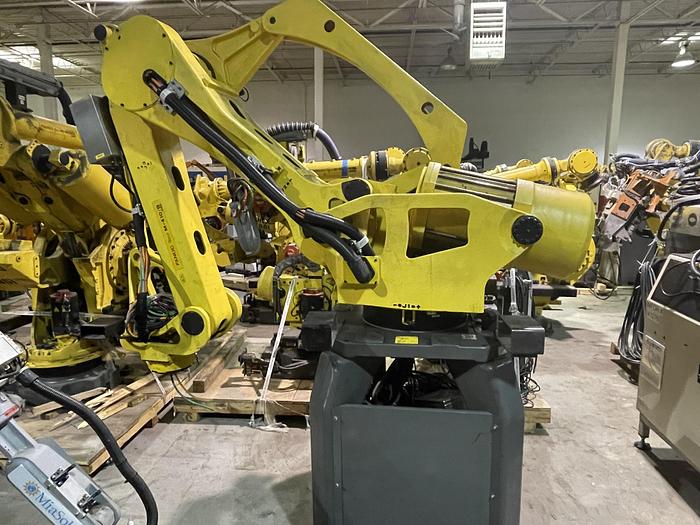

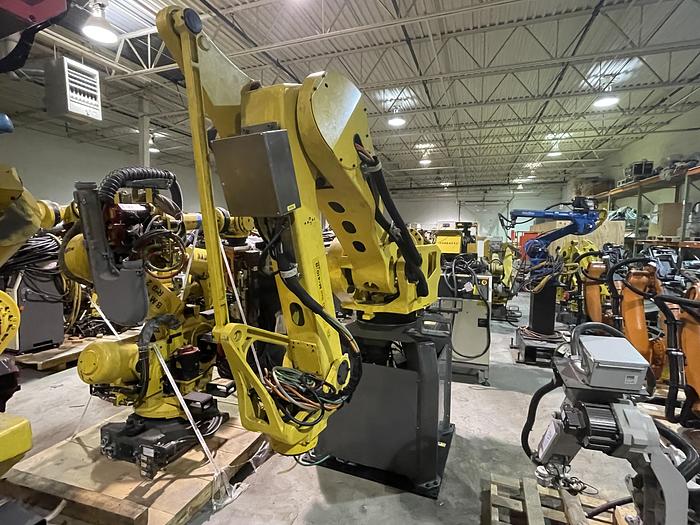

1-USED FANUC M410iB/450 4 AXIS CNC PALLETIZING ROBOT

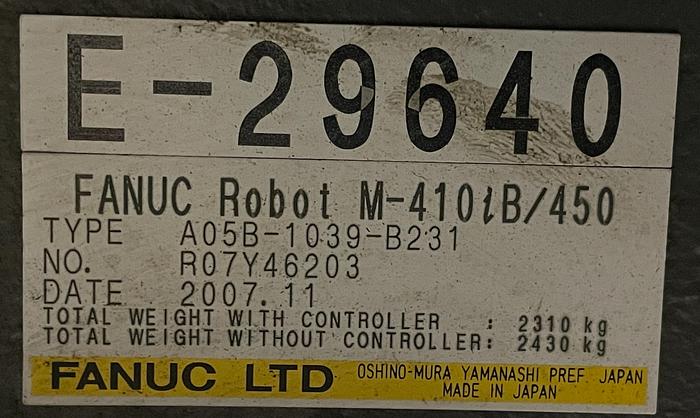

SERIAL NUMBER E-29640

DATE OF MFG. 11/2007

STK 104550

===================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:


THIS ROBOT IS ONE THREE PALLETIZING ROBOTS, ALONG WITH TWO M420iA ROBOTS THAT WAS PALLETIZING

SOFT DRINKS. WE HAVE ALL OF THE COMPONENTS FOR THE COMPLETE PALLETIZING CELL. IF INTERESTED PLEASE

INQUIRE ABOUT THE PRICE FOR THE ENTIRE CELL AS A LOT. DUE CARE WAS USED IN THE REMOVAL OF THE CELL.


This FANUC M410iB/450 features a higher payload capacity (450 kg) than the other M-410iB models. This provides enough strength to hoist larger objects with a gripper, higher and faster than other models. In addition, the FANUC M-410iB/450 has a large working envelope that allows this heavy duty robot to service multiple production lines. To advance this robot even more, there are add-on options such as iRVision, integrated auxiliary axes package, and supports software packages such as PalletPRO, Pallet Tool, and Collision Guard.


Robot Specifications

Axes: 4

Payload: 450kg

H-Reach: 3130mm

Repeatability: ±0.5mm

Robot Mass: 2430kg

Structure: Vertical Jointed-Arm

Mounting: Floor


Robot Motion Speed

J1 70 °/s (1.22 rad/s)

J2 70 °/s (1.22 rad/s)

J3 70 °/s (1.22 rad/s)

J4 180 °/s (3.14 rad/s)


Robot Motion Range

J1 ±360°

J2 ±145°

J3 ±135°

J4 ±540°


EQUIPPED WITH:

FANUC R30iA CONTROLLER

FANUC ROBOT CONNECTION CABLES

FANUC TEACH PENDANT

STAND MOUNT THAT ROBOT SITS ON.


FOB TRUCK, IMLAY CITY, MI 48544 THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.

Specifications

ManufacturerFANUC
ModelFANUC M410iB/450
Year2007
ConditionUsed
Serial NumberE29640
Stock Number104550
Axes4
Payload450kg
H-Reach3130mm
Repeatability±0.5mm
Robot Mass2430kg
StructureVertical Jointed-Arm
MountingFloor
