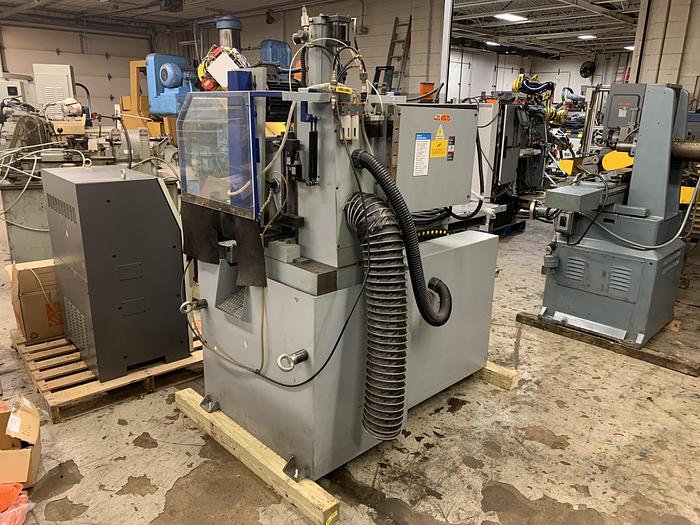

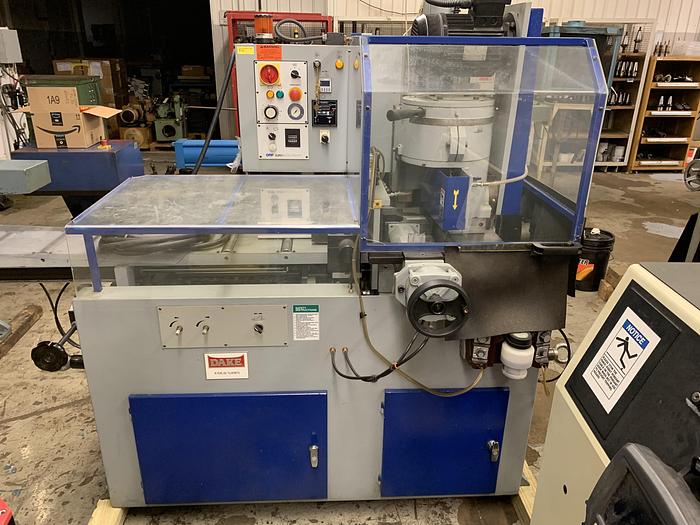

DAKE Automatic Cold Saw Model OMP EUROMATIC 370 PPL 14.5"

Contact us for price

Almont, MI

orCall 586-752-0090

Description

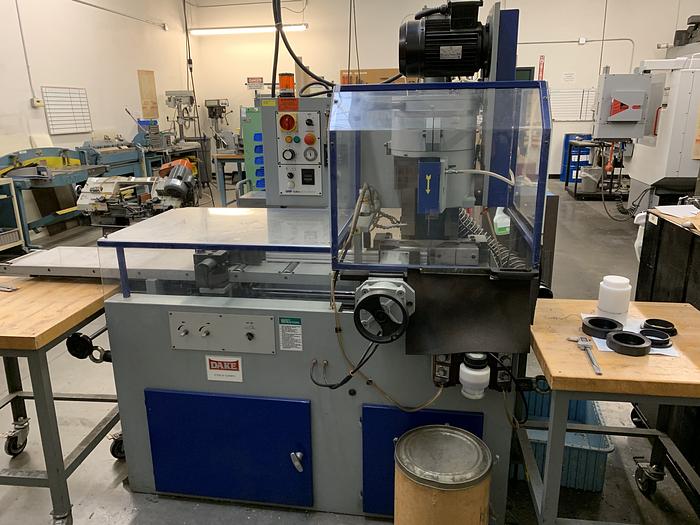

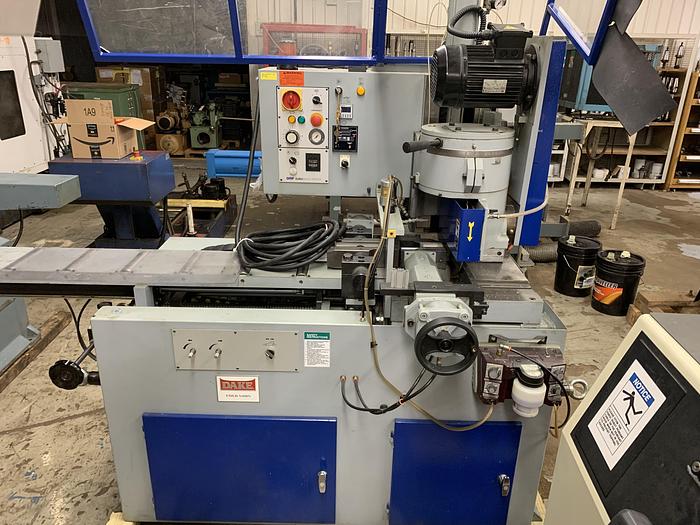

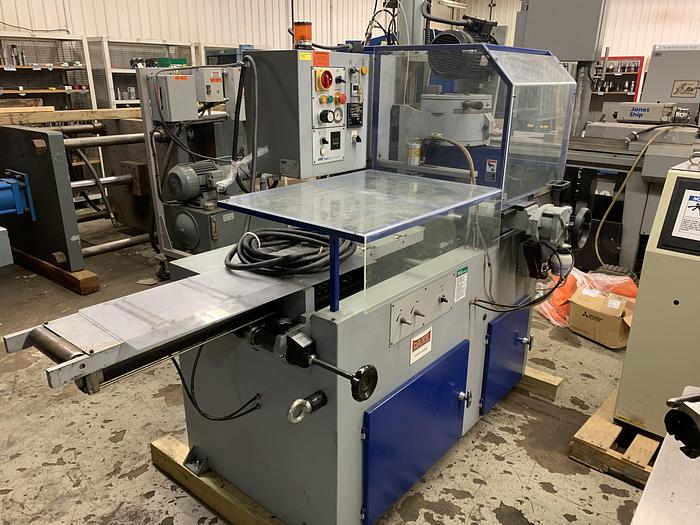

1-USED DAKE AUTOMATIC COLD SAW
MODEL OMP EUROMATIC 370 PPL 14 1/2"

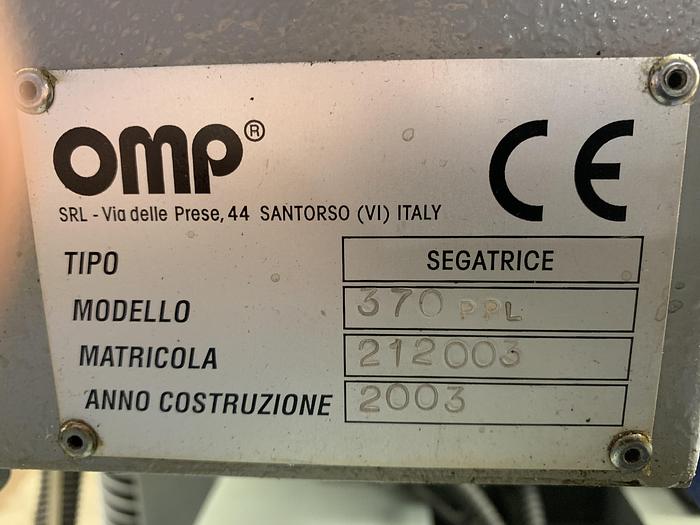

SERIAL NUMBER 212003
DATE OF MFG. 2003
STK#103826
============================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

CAPACITIES:
ROUND:
@ 90° STRUCTURALS: 5 1/8"
@ 90° SOLID: 4 1/4"
SQUARE:
@ 90° STRUCTURALS: 4 1/4"
@ 90° SOLID: 4 1/4"
MAXIMUM BLADE SIZE: 14 1/2"
MINIMUM BLADE SIZE: 12"
VISE OPENING: 8 1/4"
SPINDLE SPEEDS: 1,500 RPM / 3,000 RPM (2 SPEED)
HEAD FEED: AUTOMATIC / AIR OVER OIL DOUBLE ACTING CYLINDER
FEED CYLINDER: PNEUMATIC (20" STROKE)
MULTIPLE STROKES: 99 TIMES MAXIMUM
MITER CUTTING CAPABILITIES: 45° LEFT / 13° RIGHT

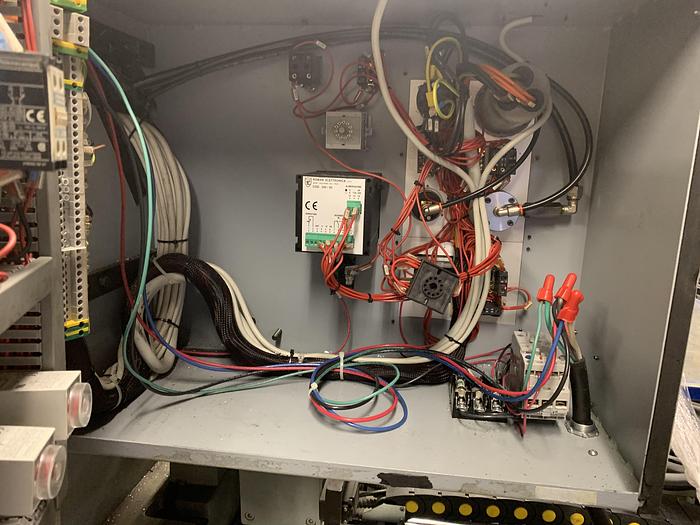

CONTROLS: 24-VOLT
WORK HEIGHT: 35"

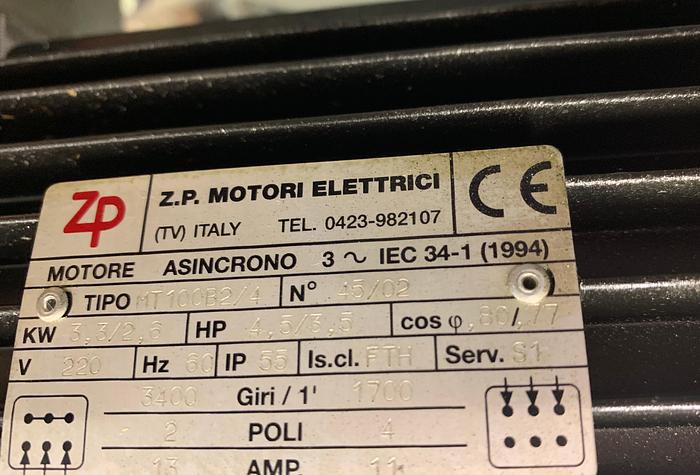

MOTOR OPTIONS: 4 1/2 HP / 220 V OR 440 V / 3 PH
STANDARD FEATURES:
NON-FERROUS, FULLY PLEXIGLAS GUARDED FULLY AUTOMATIC COLD SAW FURNISHED WITH ONE STANDARD CARBIDE BLADE

AUTOMATIC MACHINE, WITH AUTOMATIC MATERIAL FEEDING, CLAMPING AND HEAD FEED. PUSH BUTTON CONTROLS FOR CLAMPING AND START CYCLE. FOR HANDS FREE CUTTING

SEMI-AUTOMATIC OPERATION, CLAMPS PART, CUTS PART, HEAD RETURNS, AND PART IS UNCLAMPED

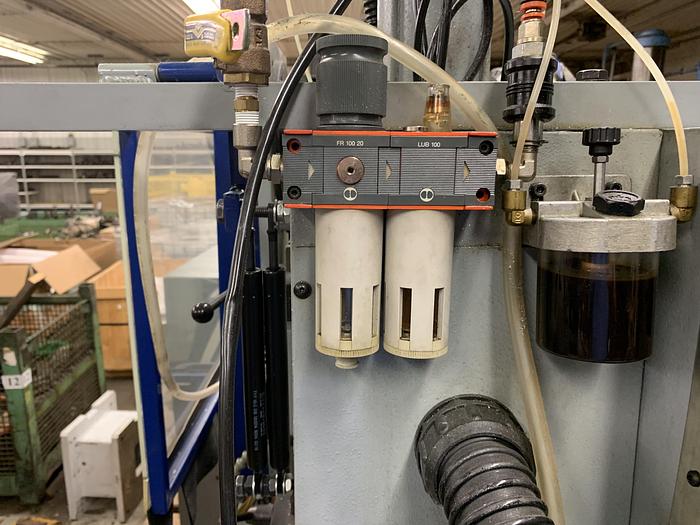

ACCUMULATOR AIR TANK KEEPS AIR PRESSURE EQUALIZED, EVEN WHEN USING A SMALL AIR COMPRESSOR

VERTICAL COLUMN HAS 2 HARDENED WAYS 1" THICK. THESE WAYS ARE LUBRICATED WITH A REMOTE MOUNTED OIL PUMP SYSTEM. THE HEAD CASTING IS MACHINED WITH INTERLOCKING OIL CIRCLES FOR EVEN LUBRICATION OVER THE WAYS, FOR EXTREMELY LONG LIFE

THE CUTTING HEAD HAS 3 GIB PLATES, EACH PLATE HOLDS 2 ADJUSTABLE CAST IRON GIB BLOCKS. THESE CAST IRON GIB BLACKS HAVE BEEN TIME TESTED AND OFFER THE BEST WEAR PROTECTION AND ADJUSTABILITY, MORE THAN PLASTIC USED ON MANY COLD SAWS TODAY

THE CUTTING HEAD USES HIGH HORSE POWER THREE-PHASE MOTOR, TO POWER A TIMING STYLE COG, NO SLIP BELT. AND QUALITY CONSTRUCTED AND DOMESTICALLY AVAILABLE ROLLER BEARINGS

UNIQUE MACHINE DESIGN ALLOWS CHANGING THE HEAD TO THE OPTIONAL FERROUS HEAD FOR YOUR STEEL CUTTING NEEDS. THIS OPTIONAL HEAD CAN BE CHANGED IN ABOUT 40 MINUTES, AFTER INITIAL INSTALLATION AND ADJUSTMENTS. THIS OPTION CAN MAKE TWO MACHINES OUT OF ONE

HEAD PARAMETERS CAN BE SET FOR MINIMUM "DEAD AIR" CUTTING

INFINITE HEAD FEED FLOW CONTROL

CAPABLE OF NEAR MIRROR FINISH CUTS WITH PROPER BLADE

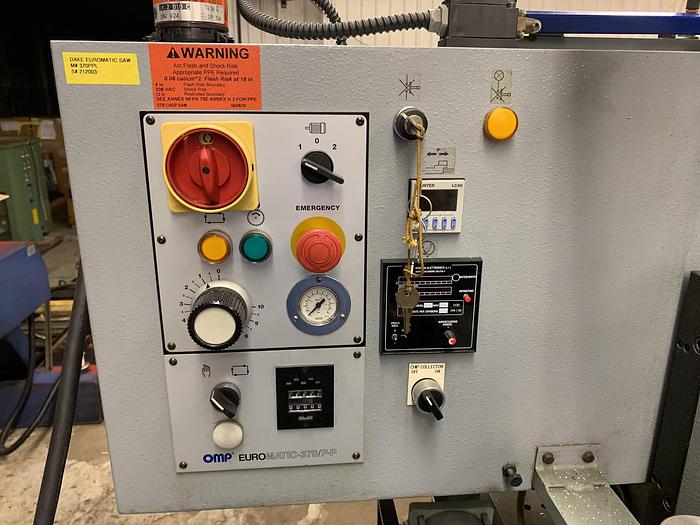

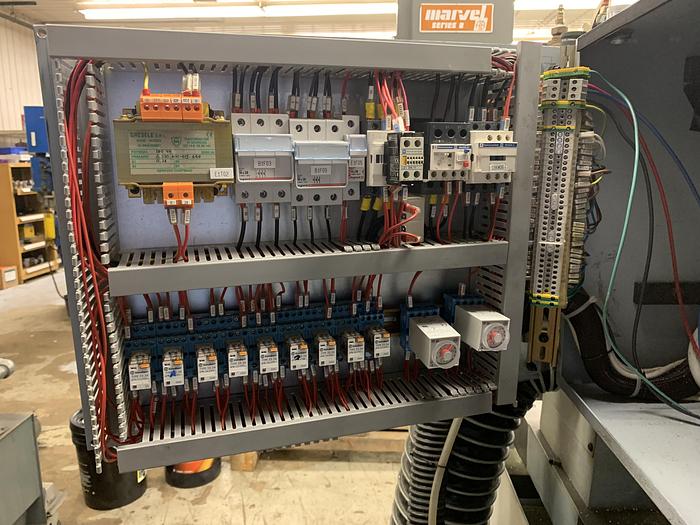

LOW VOLTAGE CONTROLS. PROGRAMMABLE PIECE COUNTER, AMP MONITOR WITH BLADE PROTECTION SHUT OFF AT PRESET AMP DRAW

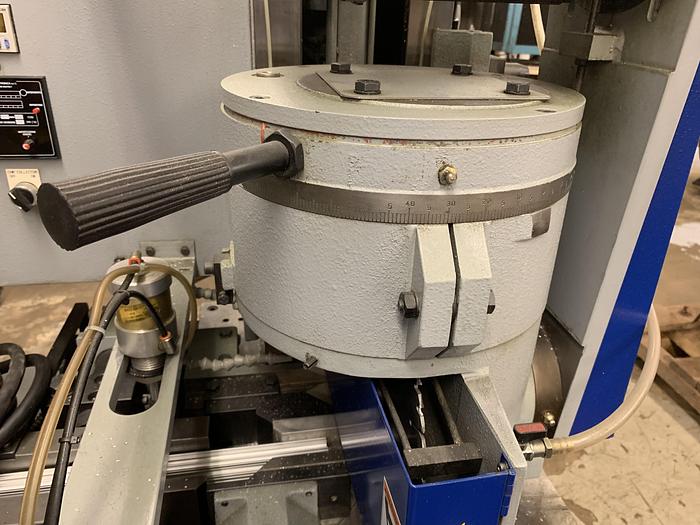

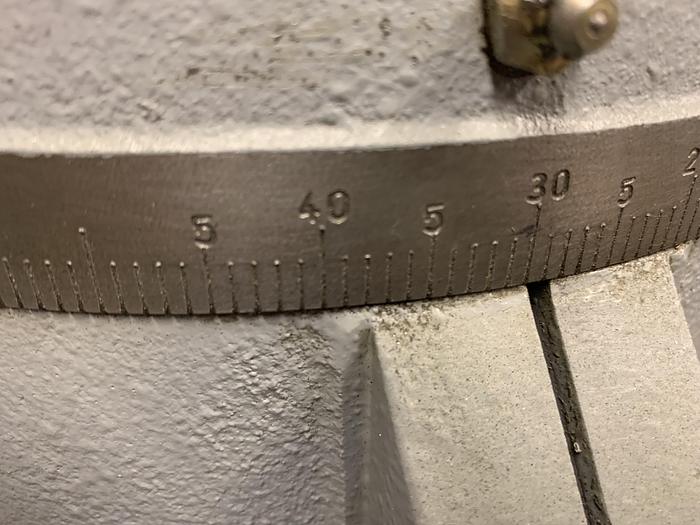

MITERING IS QUICK AND PRECISE, ONLY THE CUTTING PORTION OF THE CUTTING HEAD ROTATES FOR SETTING MITERS, KEEPING THE MATERIAL STATIONARY

HEAVY MACHINED BED WITH REPLACEABLE WEAR SURFACES AND ADJUSTABLE AIR CLAMPING VISE IN T-SLOTS. THE TABLE SURFACE WILL HOLD LONGER CUT LENGTHS WHILE SHORTER PIECES ARE REMOVED BY DROPPING DOWN THE DISCHARGE CHUTE

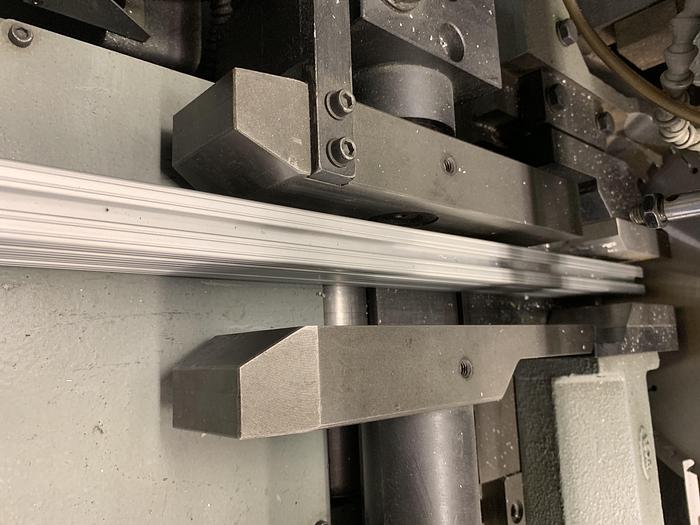

REAR VISE JAWS CAN BE REMOVED IN SECONDS, AND CUSTOM JAWS INSTALLED VIA DOVETAIL MACHINING TO THE REAR MOUNTING SURFACES. MASSIVE ADJUSTABLE FEEDER JAWS CAN ALSO BE QUICKLY REMOVED AND REPLACED WITH A CUSTOM JAW

SINGLE STROKE 20" FEED CYLINDER MOVES THE MASSIVE FEEDER VISE ON 2 HARDENED RAILS WITH WIPER RINGS AND WEAR BUSHINGS. SPEED OF FEED VISE IS ADJUSTABLE. FLOATING FEED VISE COMPENSATES FOR BENT MATERIAL, AND HAS AUTO SHUT OFF WHEN YOU RUN OUT OF STOCK

MULTIPLE STROKE FEATURE WITH EASY TO USE ANALOG STROKE COUNTER, WITH STATUS LEDS. MULTIPLE STROKING OF MATERIAL UP TO 99 TIMES IS A STANDARD FEATURE THAT ALLOWS YOU TO CUT LENGTHS UP TO 1,980" LONG. THE ABILITY TO STROKE UP TO 99 TIMES, IS 90 STROKES MORE THAN MOST OF THE HITCH FEED MACHINES ON THE MARKET TODAY

FEED TABLE IS 60" LONG AND HAS PROTECTIVE COVER PLATES. APPROXIMATE DROP LENGTH OF 6" GIVES YOU MORE USEABLE MATERIAL FROM A BAR

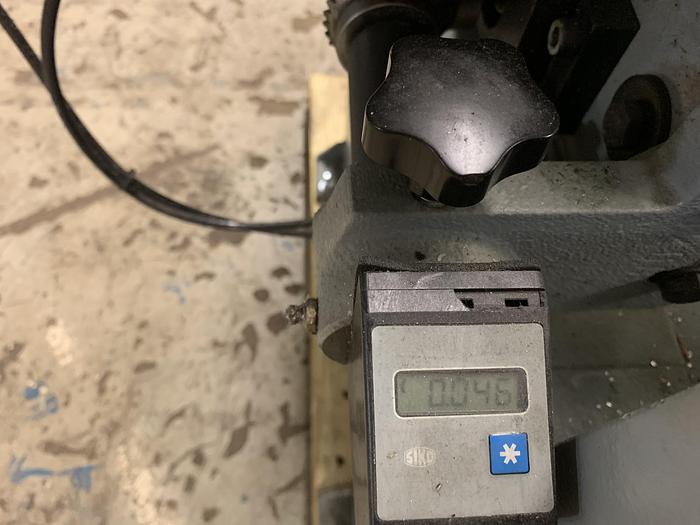

THE STANDARD DIGITAL READOUT FOR FAST PRECISE LENGTH SET UP. SIMPLY SET THE FEEDER VISE TO THE DESIRED LENGTH VIA THE DIGITAL READOUT. ALLOWS YOU TO CHANGE THE LENGTH OF CUT IN A MATTER OF SECONDS

FOR LARGER CUTTING OR CHANGING THE CUTTING GEOMETRY FOR MORE AGGRESSIVE CUTTING, THE COMPLETE REAR VISE ASSEMBLY CAN BE MOVED FORWARD OR BACKWARD IN T-SLOTS.

AIR VISE WITH ADJUSTABLE GIB AND HEAVY STEEL ANTI BURR ARM

VERTICAL HOLD DOWN DEVICE HOLDS THE MATERIAL FLAT ON THE CUTTING SURFACES AND HELPS HOLD UNRULY PARTS SECURE FOR PRECISE CUTTING

REMOVABLE CHIP DRAWER FOR FAST CLEAN UP AND READ CHIP COLLECTOR ATTACHMENT PANEL

TOOL KIT FOR QUICK BLADE CHANGES

FOB TRUCK, ALMONT, MI 48003

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND
BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS
AND CONDITIONS.

RAB INDUSTRIES, INC.

Specifications

ManufacturerDAKE
ModelOMP 370 PPL
Year2003
ConditionUsed
Serial Number212003
Stock Number103826
