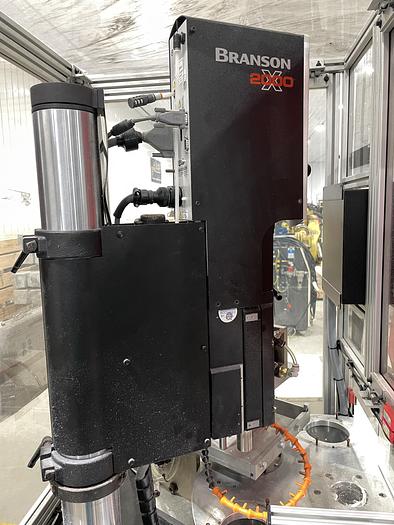

BRANSON S40 ROTARY 2000X ULTRASONIC WELDER SYSTEM CELL 20:4.0 4000 WATT WITH CAMCO 6 POSITION INDEX TABLE AND PNEUMATIC PRESS

BRANSON S40 ROTARY 2000X ULTRASONIC WELDER SYSTEM CELL 20:4.0 4000 WATT WITH CAMCO 6 POSITION INDEX TABLE AND PNEUMATIC PRESS

Contact us for price

Location:Imlay City, MI

Available quantity:1

Description

1-NEW OR HARDLY USED BRANSON S40 ROTARY 2000X ULTRASONIC WELDER SYSTEM CELL 20:4.0 4000 WATT

WITH CAMCO 6 POSITION INDEX TABLE AND PNEUMATIC PRESS

CELL SERIAL NUMBER 2035-18

BRANSON SERIAL NUMBER XAD20067020D

DATE OF MFG. 2020

STK#104760

=================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:


We Have for sale a new or hardly used Branson S40 Series 40 Ultrasonic Welding System. The units were all manufactured in 2020 and are still on the original shipping skid. Each system is assembled with a 2000X actuator, 20:4.0 power supply, Automation Direct touchscreen and PLC, Camco indexer, and safety guards with ABB safety switches. There is also room to add secondary processes such as pick and place, pad printing, or leak testing.  I am here for any questions you may have and please feel free to check out our eBay store for more great robotics and automation supplies.

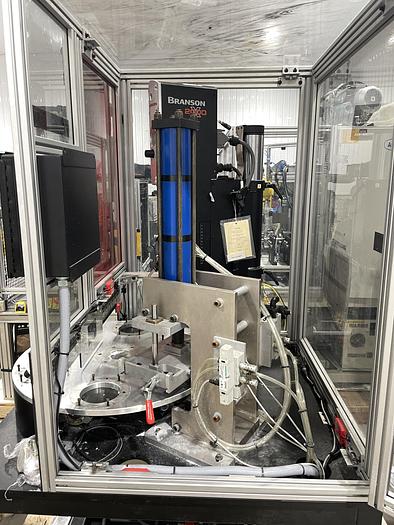

Series 40 Rotary System:

30" Aluminum dial plate with 6 stops

Camco indexer for smooth, precise movement

Operator safety and perimeter guarding

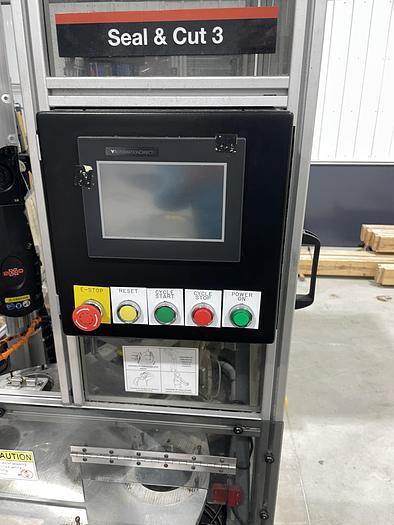

Automation Direct touchscreen and PLC for I/O handling


Power Supply:

Model: 2000xea 20:4.0 (20khz 4000w)

Voltage: 200-240VAC 25a 1ph 50/60hz

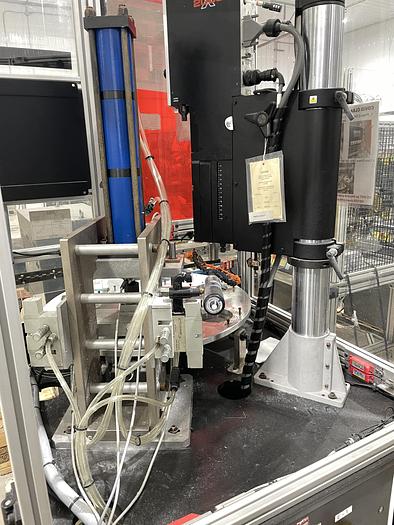

Actuator:

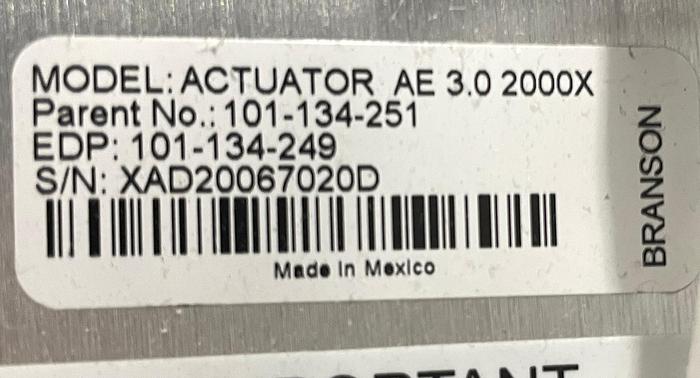

Model: 2000X AE 3.0 (4" Stroke Length)

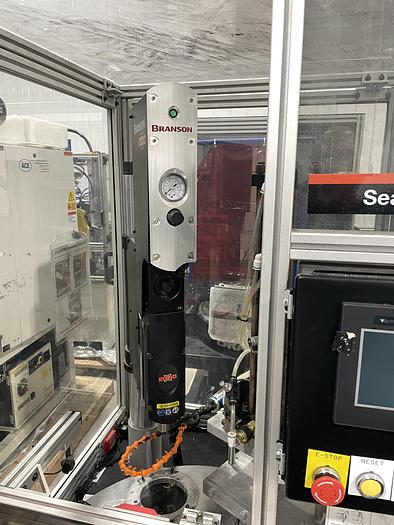

CJ20 Converter w/ Titanium 20kHz 3:1 Booster


EQUIPPED WITH:

JIC PANEL AND PLC CONTROLS HMI

CAMCO INDEX TABLE MODEL 601RDM WITH 30" ROUND ALUMINUM TOP PLATE

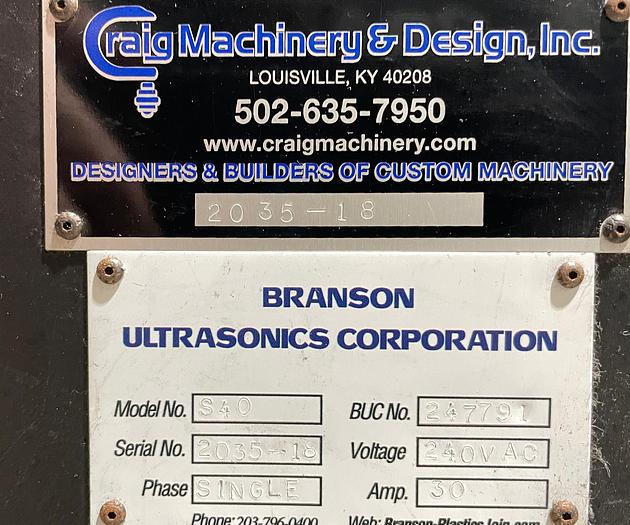

CELL WAS MANUFACTURED BY CRAIG MACHINERY & DESIGN, INC.


FOB TRUCK, 205 GRAHAM ROAD, IMLAY CITY, MI 48444 THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.

Specifications

ManufacturerBRANSON
ModelBRANSON 2000X
Year2020
ConditionUsed
Serial Number2035-25
Stock Number104760
204.0 4000 WATT
Model2000xea 20
ManufacturerBRANSON
Voltage200-240VAC 25a 1ph 50/60hz
