FANUC ARCMATE 120IB/10L 6 AXIS ROBOT WITH RJ3IB CONTROLLER

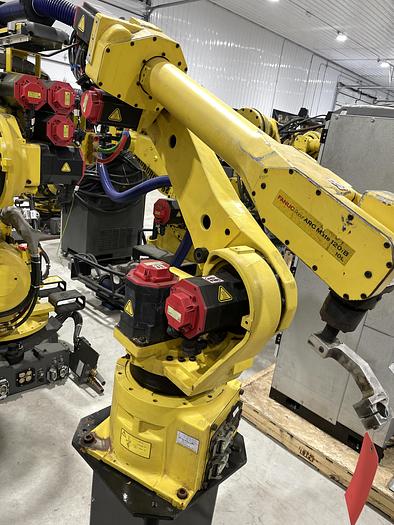

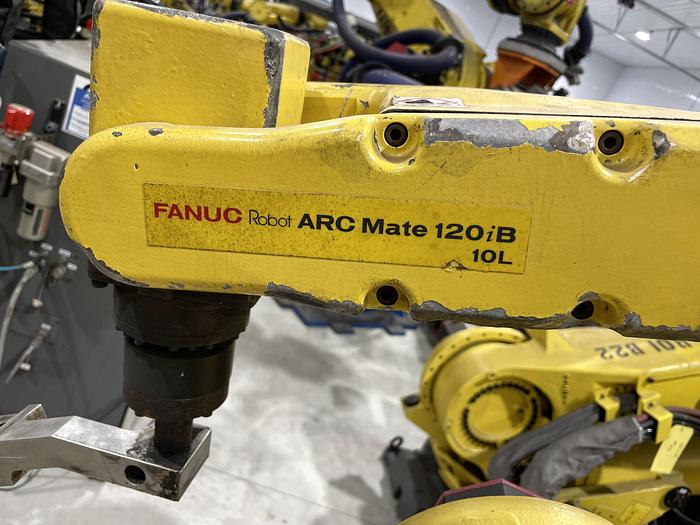

1-USED FANUC ARCMATE 120iB/10L 6 AXIS ROBOT WITH RJ3IB

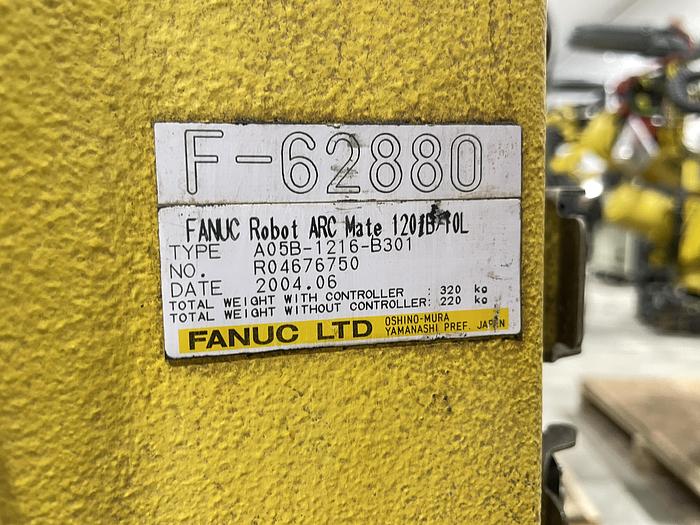

SERIAL NUMBER F62880

DATE OF MFG. 06/2004

STK#104766

=========================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:

HOURS SHOWN ON METER 1,800

With extended reach the FANUC ARC Mate 120iB/10L performs arc welding and cutting applications with ease. The 120iB/10L uses its six-axes, overhead rail-mount, horizontal reach of 1,885 millimeters and, +/- 0.1 millimeter repeatability to ensure that parts large and small receive extremely accurate welds and cuts. The FANUC ARC Mate 120iB 10L RJ3iB arc welding robot has a maximum payload capacity of 10 kilograms. The 120iB is the best in its class for reach versus stroke ratio and fastest motion speeds. The exceptionally fast wrist axes reduce air cut times, and the ARC Mate has an extremely large work envelopes and complex tooling.

Robot Specifications:

Axes: 6

Payload: 10kg

H-Reach: 1885mm

Repeatability: ±0.1mm

Robot Mass: 220kg

Structure: Articulated

Mounting: Floor, Inverted, Angle

Robot Motion Speed:

J1 165 °/s (2.88 rad/s)

J2 165 °/s (2.88 rad/s)

J3 175 °/s (3.05 rad/s)

J4 350 °/s (6.11 rad/s)

J5 340 °/s (5.93 rad/s)

J6 520 °/s (9.08 rad/s)

Robot Motion Range:

J1 ±170°

J2 +160° - 90°

J3 +285° - 170°

J4 ±200°

J5 ±140°

J6 ±450°

Applications:

MIG Welding Robots

Plasma Welding Robots

TIG Welding Robots

Welding Automation Robots

Arc Welding Robots

EQUIPPED WITH:

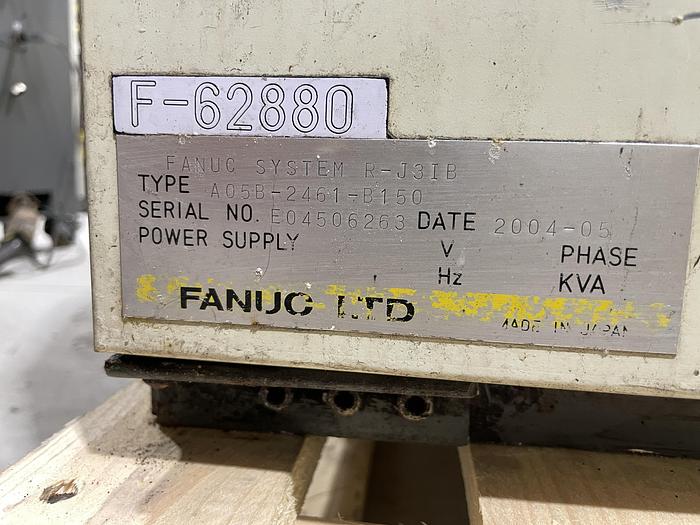

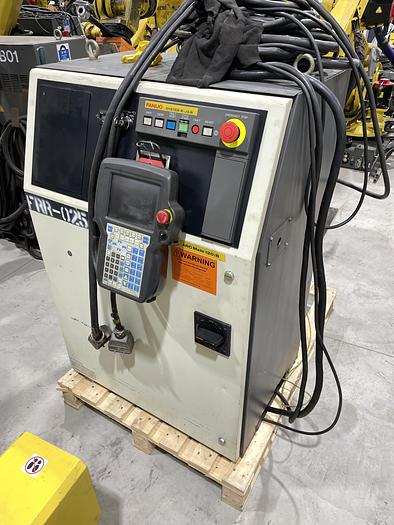

FANUC RJ3iB CONTROLLER

FANUC ROBOT CONNECTION CABLES

FANUC TEACH PENDANT

FOB TRUCK, 205 GRAHAM ROAD, IMLAY CITY, MI 48444 THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.
