NATIONAL 8' X 1/4" HYDRAULIC POWER SQUARING SHEAR

NATIONAL 8' X 1/4" HYDRAULIC POWER SQUARING SHEAR

Contact us for price

Available quantity: 1

Imlay City, MI

Description

1-USED NATIONAL 96" X 1/4" HYDRAULIC POWER SQUARING SHEAR

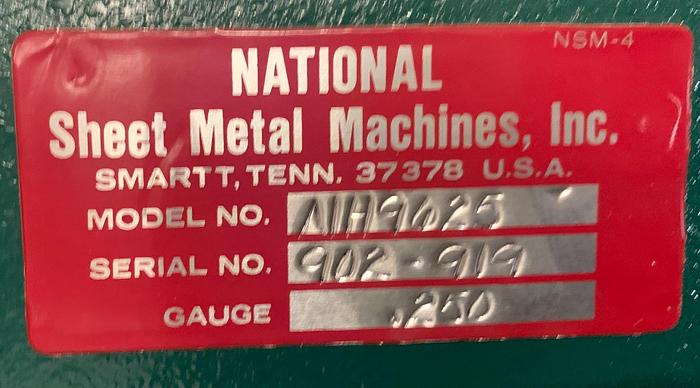

MODEL NH9625

SERIAL NUMBER 902-919

STK 104785

DATE OF MFG 2019

================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:


National offers four powerful heavy duty precision hydraulic shears with all steel cutter heads and tables. Standard with hydraulic rubber inserted hold downs, quick adjusting back gauge for direct reading with a positive lock, front arm extensions, table gauges, heavy duty foot switch and well lighted work area. You receive a full three year warranty. The hydraulic unit conforms to J.I.C. standards featuring simplicity of design. The National hydraulic system is simple to maintain with standard replacement parts such as valves, cylinders, hoses and oil. The National shear is actuated by a portable shrouded electric foot switch attached to a long flexible cable so it may be positioned comfortable to the operator.


National Shears have high carbon, high chromium blades with four cutting edges of premium quality tool steel and will withstand nicking and wear better than relieved blades. National blades are secured to the shear with tempered flathead screws through countersunk holes in blades. Complete cuts of full width pieces are 2" longer than specified cutting length. The high strength steel side constructed side frames are made of the highest tensile strength metal needed for long life and accurate shearing. Under drive construction with downward cylinders and major hydraulics under the bed gives the shear a low profile.


SPECIFICATIONS:

Model NH9625

Maximum cutting length 96" (2438mm)

Maximum thickness--mild steel 1/4" (6.4mm)

Maximum thickness--stainless steel 1/8" (3.2mm)

Strokes per minute 20 (approximate)

Oil reserve capacity 24 gallons (53 liters)

Main motor 7.5 HP

Electrics 208-240/460/3/60

Shipping weight 7,000 lbs. (3176 kgs)

Dimensions (L x W x H) 116" x 40" x 60"


New cost approx. $34,000.00 This unit like new 2019


FOB TRUCK, 205 GRAHAM ROAD, IMLAY CITY, MI 48444 THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.

Specifications

ManufacturerNATIONAL
ModelNATIONAL NH9625
Year2019
ConditionUsed
Serial Number902-919
Stock Number104785
