SMITHY BENCH GRANITE 1324 SERIES COMBINATION ENGINE LATHE/MILL/DRILL PRESS

SMITHY BENCH GRANITE 1324 SERIES COMBINATION ENGINE LATHE/MILL/DRILL PRESS

$2,900 (USD)

Available quantity: 1

Imlay City, MI

orCall 586-752-0090 Extension 1 for Sales

Description

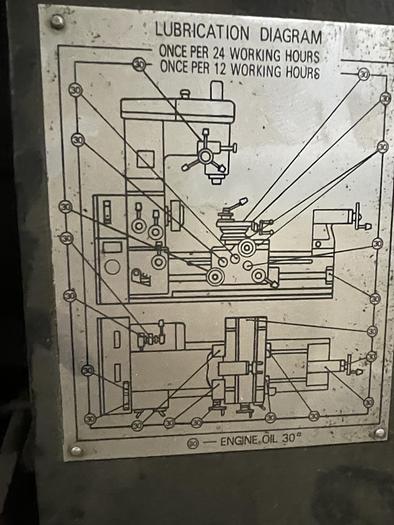

1-USED SMITHY GRANITE 1324 COMBO LATHE/MILL

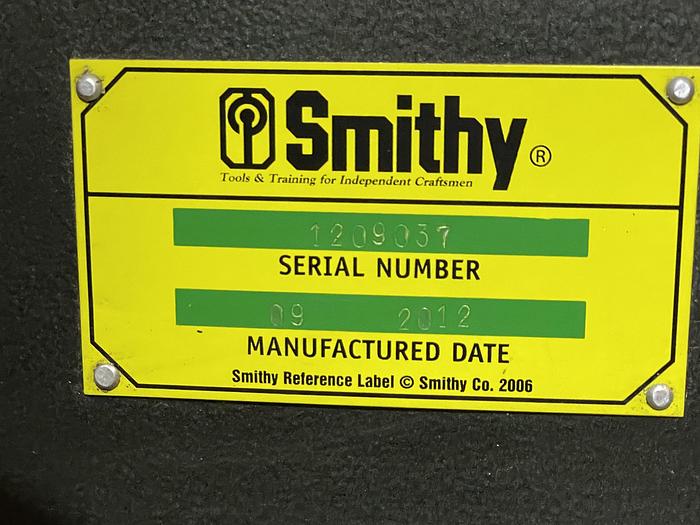

SERIAL NUMBER 1209037

DATE OF MFG 09/2012

STK#104788

=====================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:


GRANITE 1324 SPECIFICATIONS

Model 1324

Length 46"

Width 22-1/2"

Height 39"

Shipping Weight 794 lbs

Machine Weight 683 lbs

Crate Size Length 49-1/2"

Crate Size Width 22-3/4"

Crate Size Height 44"

Floor Area Requirement 72" x 43"


ELECTRICAL SPECIFICATIONS

Amperage 16 for 110v, 8 for 220v

Horsepower 2

Motor Type BLDC

Phase Single

Voltage 110 A/C or 220 A/C

Frequency 50/60 Hz


GENERAL GRANITE SPECIFICATIONS

T-Slot Size 7/16"

Lathe Spindle Accuracy TIR +/- 0.00078"

Powerfeed (X-Axis) Yes

Powerfeed (Y-Axis) Yes

Powerfeed (Z-Axis) No

Table Size 6-3/4" x 17-3/4"

Threading Dial Yes


LATHE SPECIFICATIONS

Model 1324 / 1340

Distance Between Centers 24" / 40"

Dial Calibration Leadscrew 0.001" (0.0254 mm)

Dial Calibration Longfeed Rack 0.01" (0.254 mm)

Dial Calibration Crossfeed 0.001" (0.0254 mm)

Dial Calibration Tailstock 0.001" (0.0254 mm)

Dial Calibration On Toolpost 0.001" (0.0254 mm)

Feed Rate (X-Axis) 0.003" - 0.020"

Feed Rate (Y-Axis) 0.001" - 0.006"

Headstock Taper MT4

Lathe Chuck Bore 1.6"

Lathe Chuck Diameter 6"

Lathe Chuck - Max. Iam/W/P 6"

Lathe Chuck - Min. Diam/W/P 1/8"

Lathe Chuck Mount D1-4 Camlock

Lathe Chuck Type 3-Jaw Self-Centering

Spindle Bore 1.125"

Spindle Speeds Variable 100-2650 RPM

Spindle Accuracy TIR 0.00078"

Swing Over Bed 13"

Swing Over Worktable 7-1/2"

Tailstock Offset 19/32"

Tailstock Taper MT3

Tailstock Barrel Travel 3"

Threads SAE 7-52 TPI

Toolpost Travel 3-3/16"

Toolbit Size 1/2"

X-Axis Travel W/Tailstock 20" / 35"

Y-Axis Travel 7-5/8"

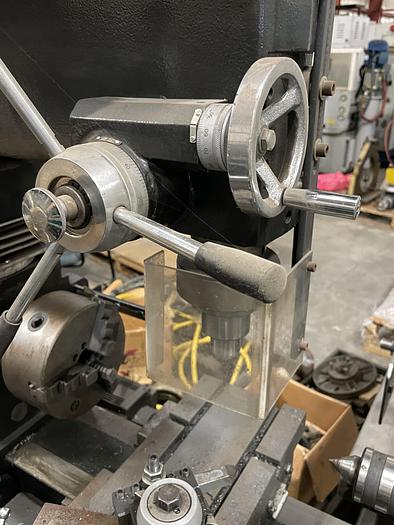

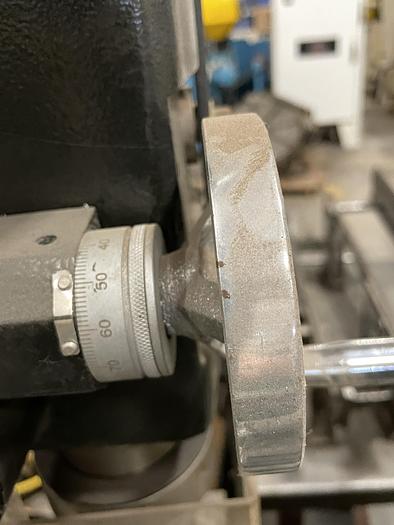

MILL/DRILL SPECIFICATIONS

Column Diameter 3-3/16"

Dial Calibration Drill-Coarse Feed 0.05" (1.27 mm)

Dial Calibration Mill-Fine Feed 0.001" (0.0254 mm)

Dial Calibration Millhead Up/Dn Crank 0.05" (1.27 mm)

Drawbars Size 7/16"

Drill Chuck Size Mill/Drill 5/8"

Drill Chuck Size Tailstock 1/2"

Drill Chuck Arbor Size R-8/JT3

Feed Rate (Mill X-Axis) 0.003" - 0.020"

Feed Rate (Mill Y-Axis) 0.001 - 0.006"

Head Rotation 360 Degrees

Head Travel Z-Axis 4-3/8"

Quill Diameter 2-3/4"

Quill Travel 4-7/8"

Spindle Center To Front Of Chuck 8-1/2"

Spindle Center To Lathe Spindle Flange 11-1/4"

Spindle Face To Back Of Spindle 13-3/4"

Spindle To Table Distance (Min.-Max.) 4" to 13-3/8"

Spindle Speeds Variable 400-2600 RPM

Spindle Taper R8

Tool Size Limit 1"

X-Axis Travel 13-3/8"

Y-Axis Travel 7-5/8"


FOB TRUCK, 205 GRAHAM ROAD, IMLAY CITY, MI 48444

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.

Specifications

ManufacturerSMITHY
ModelSMITHY GRANITE 1324 SERIES
Year2012
ConditionUsed
Serial Number1209037
Stock Number104788
