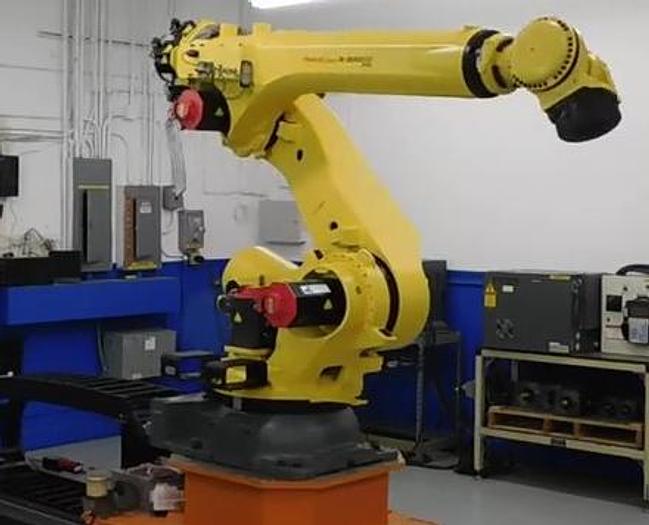

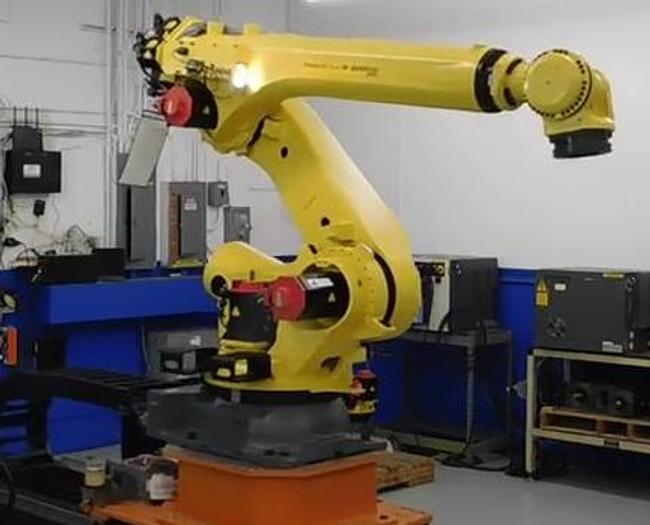

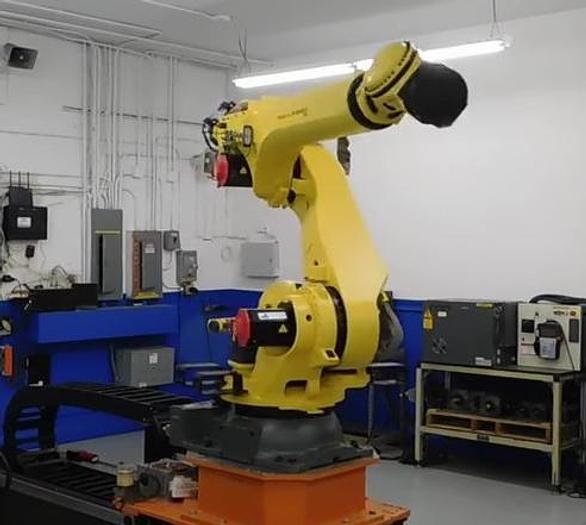

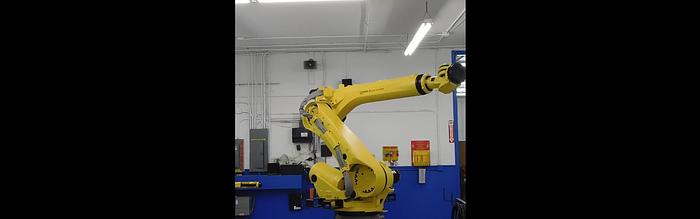

FANUC R2000iC/210L ROBOT ON GUDEL RTU WITH R30iB CONTROLLER

1-USED FANUC R2000iC/210L ROBOT ON GUDEL 6.3 METER TRAVEL RTU WITH R30iB CONTROLLER

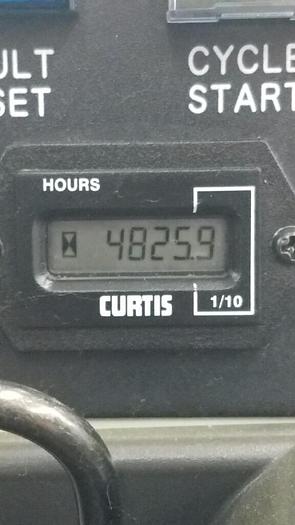

HOURS ON UNIT 4,825.9

STK#104807

==================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:

The FANUC R-2000iC/210L R-30iB is a long reach robot ideally suited for automotive applications, such as spot welding. The FANUC R2000iC/210L can handle up to 210 kg and has a reach or 3100 mm. It has a relatively small footprint so it can fit into packed factory environments.

Robot Specifications:

Axes: 6

Payload: 210kg

H-Reach: 3100mm

Repeatability: ±0.2mm

Robot Mass: 1350kg

Structure: Articulated

Mounting: Floor

Robot Motion Speed:

J1 105 °/s (1.83 rad/s)

J2 90 °/s (1.57 rad/s)

J3 85 °/s (1.48 rad/s)

J4 120 °/s (2.09 rad/s)

J5 120 °/s (2.09 rad/s)

J6 200 °/s (3.49 rad/s)

Robot Motion Range:

J1 ±370°

J2 ±136°

J3 ±301°

J4 ±720°

J5 ±250°

J6 ±720°

Applications:

Spot Welding Robots

Material Handling Robots

Welding Automation Robots

EQUIPPED WITH:

FANUC R30iB CONTROLLER

FANUC ROBOT CONNECTION CABLES INCLUDING

FLEXIBLE CABLES FOR THE GUDEL RTU

FANUC COLOR i-TEACH PENDANT

GUDEL RTU WITH 6.3 METER TRAVEL

SOLD FOB YOUR TRUCK. THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.
