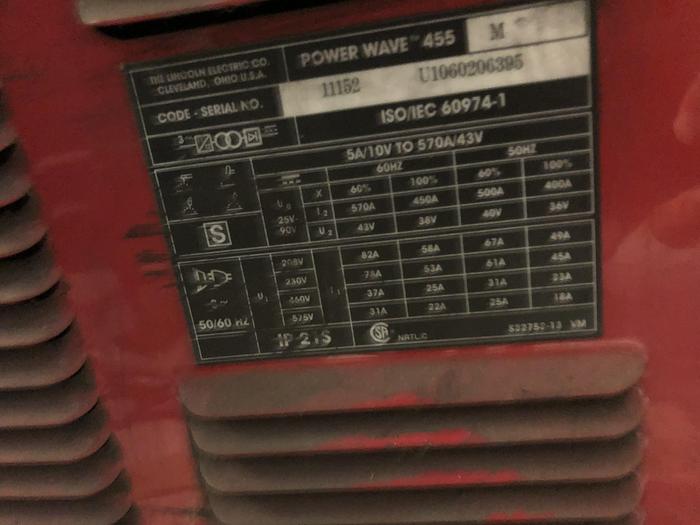

LINCOLN DUAL TRUNNION WELD CELL WITH FANUC ARCMATE 100iB ROBOT LINCOLN 455M WELDING POWER SUPPLY LOW HOURS

LINCOLN DUAL TRUNNION WELD CELL WITH FANUC ARCMATE 100iB ROBOT LINCOLN 455M WELDING POWER SUPPLY LOW HOURS

Contact us for price

Available quantity: 1

Imlay City, MI

Description

1-USED LINCOLN DUAL TRUNNION ROBOTIC MIG WELDING CELL WITH FANUC 100iB ROBOT & RJ3iB CONTROLLER

SERIAL NUMBER OF ROBOT F75573

DATE OF MFG.

STK#104815

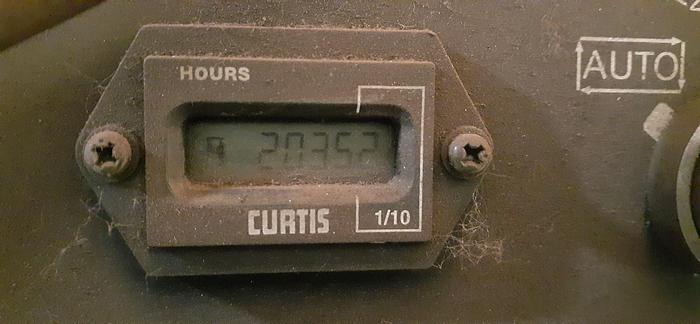

HOURS ON METER 2,035

=======================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:

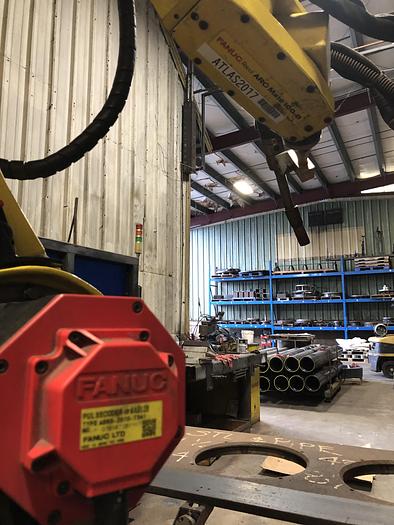

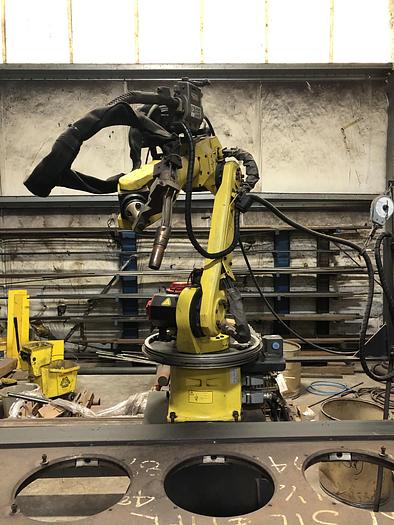

FANUC ARC Mate 100iB

The FANUC ARC Mate 100iB is a six-axis, modular construction, electric servo-driven welding robot that was designed with high speed in mind. Compact and flexible, the Arc Mate 100iB robot is capable of high speed welding and cutting, yet precise enough to handle pick and place applications. The FANUC ARC Mate 100iB has a relatively lightweight payload ability at 6kg, which makes it perfect for welding applications.


Furthermore, the wire feed motor mounts directly to the top arm with added durability through the use of sealed bearings and protected drives.Its high speed wrist axes reduce haircut times and improve the overall throughput. The ARC Mate 100iB RJ3iB FANUC robots also have extremely narrow wrists, making the inside of parts or other machines easily accessible. It offers a very large work envelope that is useful for large parts or tooling. There are also gas/air lines and a Lincoln Electric wire feed motor cable routed inside the robot arm, helping to improve overall reliability and eliminate external cabling requirements.

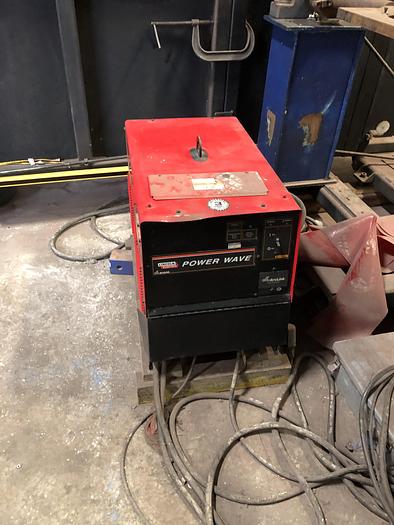

The benefits don't stop here! The Turbo Move advanced servo control features enable quick and smooth point-to-point motion to increase arc on-time and throughput. The Lincoln Electric's Power Wave TM or STTTM power source keeps things simple with its plug and play ability.


This robot will be paired with a RJ3iB controller and ARC Mate 100iB RJ3iB arc welding robots are compatible with all major brands of welding equipment for maximum flexibility.


Robot Specifications:

Axes: 6

Payload: 6kg

H-Reach: 1373mm

Repeatability: ±0.08mm

Robot Mass: 135kg

Structure: Articulated

Mounting: Floor, Inverted, Wall, Angle


Robot Motion Speed:

J1 150 °/s (2.62 rad/s)

J2 160 °/s (2.79 rad/s)

J3 170 °/s (2.97 rad/s)

J4 400 °/s (6.98 rad/s)

J5 400 °/s (6.98 rad/s)

J6 520 °/s (9.08 rad/s)


Robot Motion Range:

J1 ±170°

J2 +160° - 90°

J3 +145° - 170°

J4 ±190°

J5 ±140°

J6 ±360°


Applications:

Arc Welding Robots

Welding Automation Robots

MIG Welding Robots

Orbital Welding Robots

Oxyacetylene Welding Robots

Plasma Cutting Robots

Plasma Welding Robots

Submerged Arc Welding Robots

TIG Welding Robots


EQUIPPED WITH:

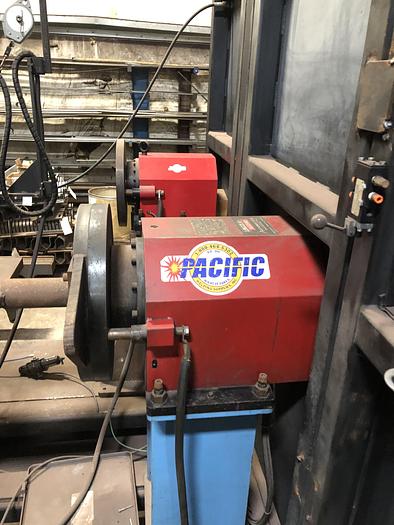

TWO LINCOLN SERVO TRUNNIONS

ENCLOSURE

LINCOLN WIRE FEEDER

LINCOLN TORCH TIP CLEANER

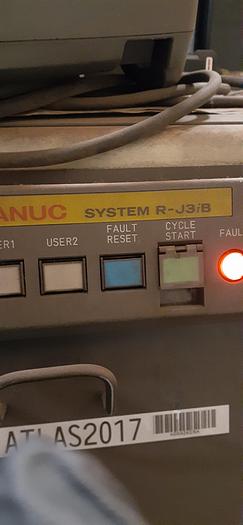

FANUC RJ3iB CONTROLLER

FANUC ROBOT CONNECTION CABLES

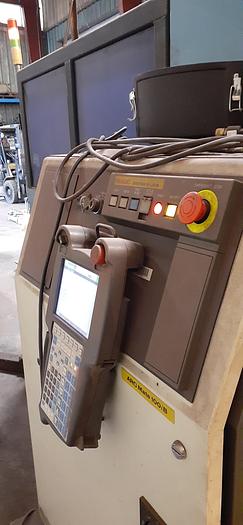

FANUC TEACH PENDANT


FOB TRUCK, 205 GRAHAM ROAD, IMLAY CITY, MI 48444

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.

Specifications

ManufacturerFANUC
ModelFANUC ARCMATE 100iB
ConditionUsed
Serial NumberF75573
Stock Number104815
Axes6
Payload6kg
H-Reach1373mm
Repeatability±0.08mm
Robot Mass135kg
StructureArticulated
MountingFloor, Inverted, Wall, Angle
ManufacturerFANUC
MODELFANUC ARCMATE 100iB
