FANUC ARCMATE 100IB MIG WELDING CELL WITH RJ3iB CONTROLLER

Contact us for price

Almont, MI

orCall 586-752-0090

Description

1-USED SUPER CLEAN FANUC ARCMATE 100IB MIG WELDING CELL WITH RJ3IB CONTROLLER

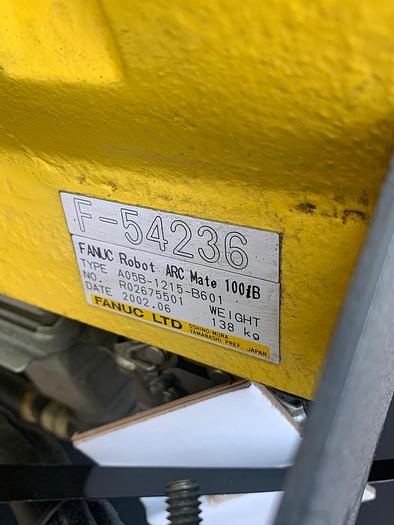

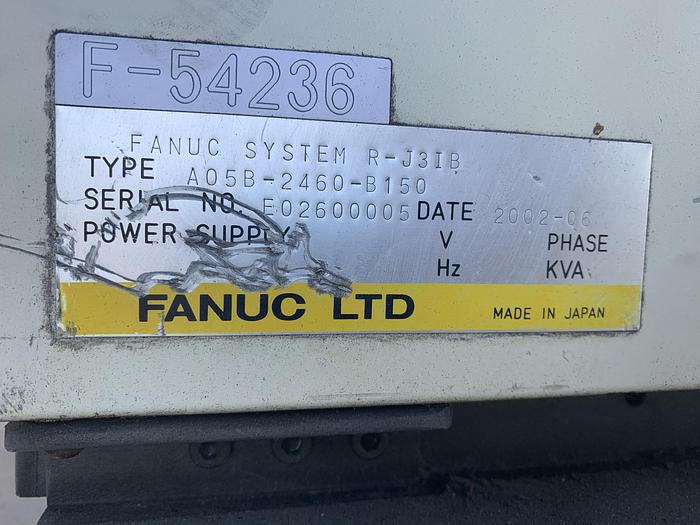

ROBOT SERIAL NUMBER F54236
DATE OF MFG. 06/2002
STK#103881
===============================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

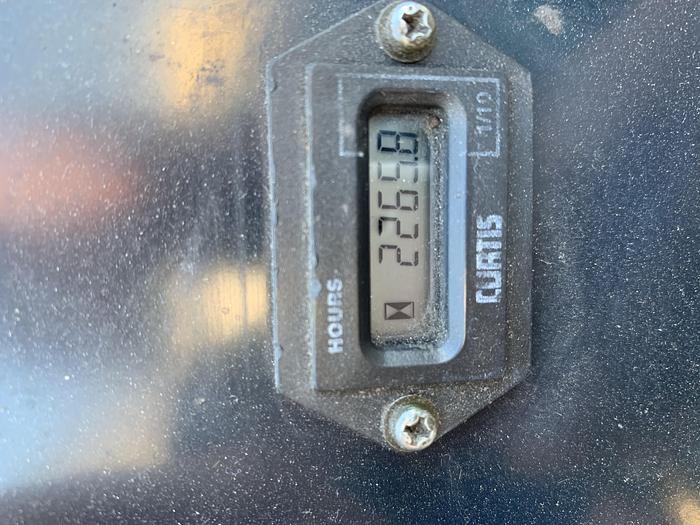

HOURS SHOWN ON METER 2,265.8

THIS UNIT IS VERY CLEAN WITH LOW USE.

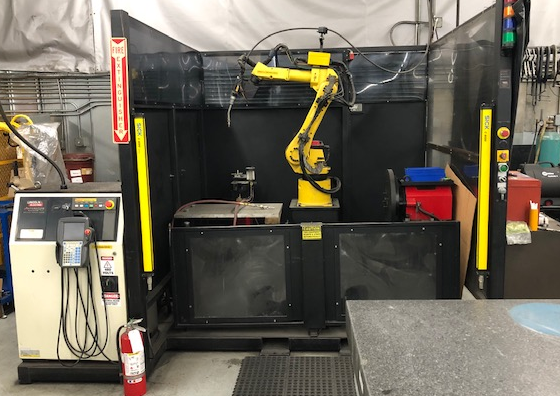

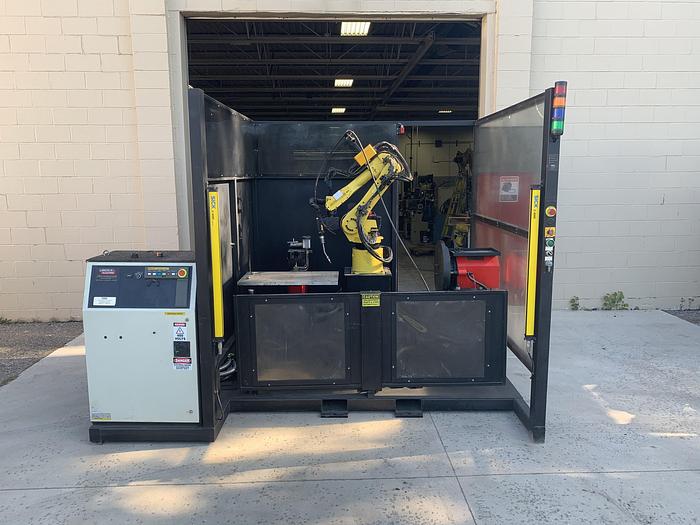

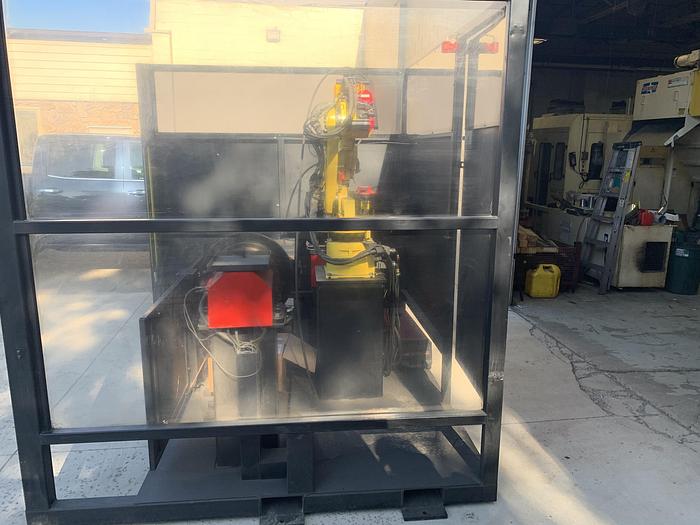

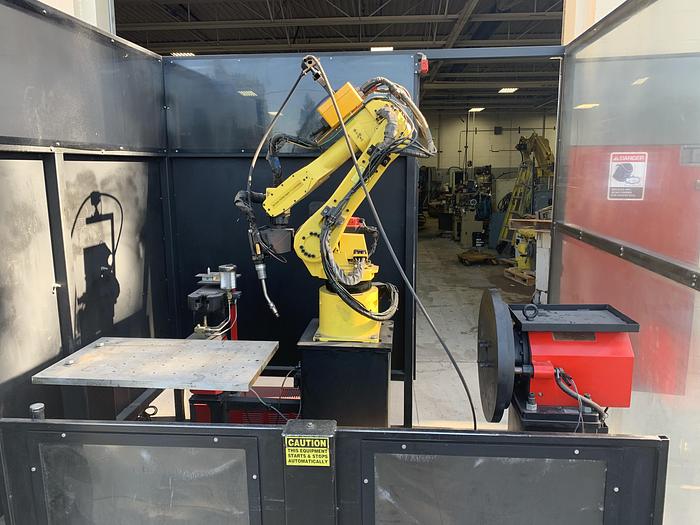

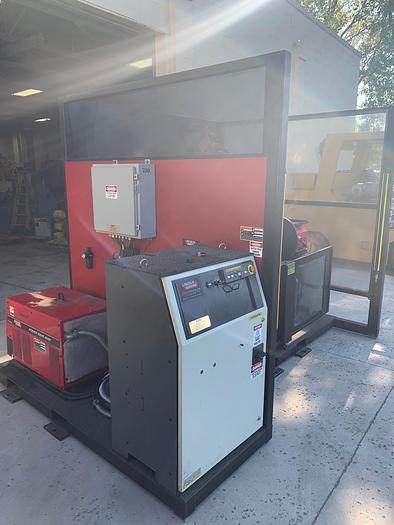

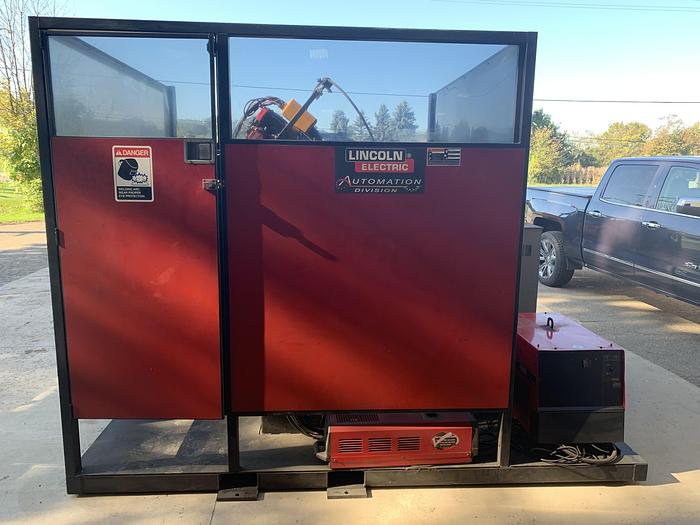

UNIT IS SELF CONTAINED MOUNTED ON A COMMOND BASE
WITH ALL RELATED COMPONENTS THAT MAKE UP THE CELL

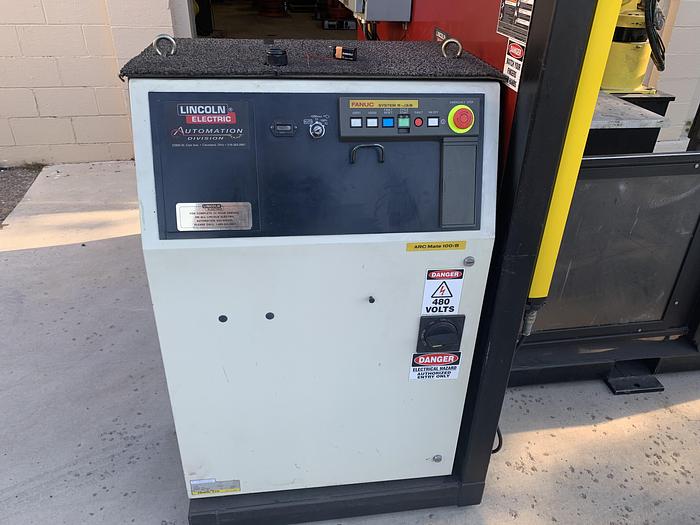

THE CONTROLLER CABINET IS MOUNTED OUTSIDE THE WELD CELL.
SEE PICTURES.

Robot Specifications:
Axes: 6
Payload: 6.00kg
H-Reach: 1373.00mm
Repeatability: ±0.0800mm
Robot Mass: 135.00kg
Structure: Articulated
Mounting: Floor, Inverted, Wall, Angle

Robot Motion Speed
J1 150 °/s (2.62 rad/s)
J2 160 °/s (2.79 rad/s)
J3 170 °/s (2.97 rad/s)
J4 400 °/s (6.98 rad/s)
J5 400 °/s (6.98 rad/s)
J6 520 °/s (9.08 rad/s)

Robot Motion Range
J1 ±170°
J2 +160° - 90°
J3 +145° - 170°
J4 ±190°
J5 ±140°
J6 ±360°

EQUIPPED WITH:

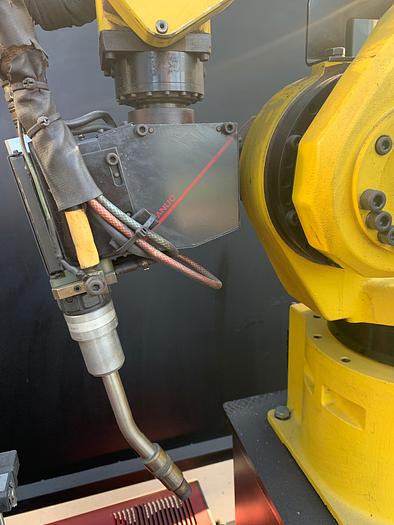

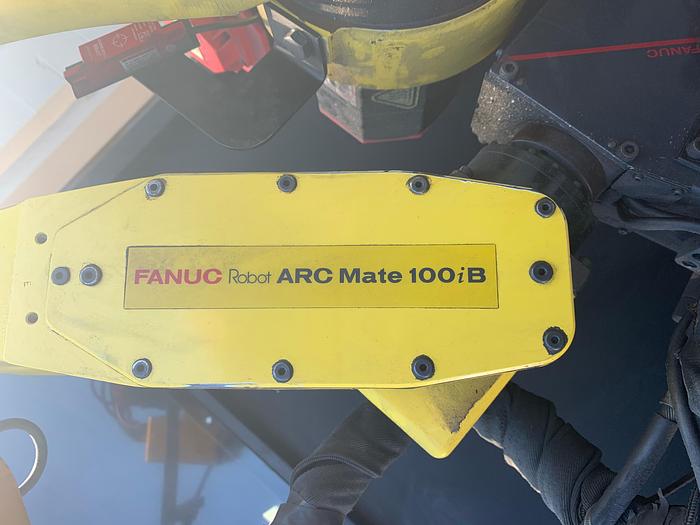

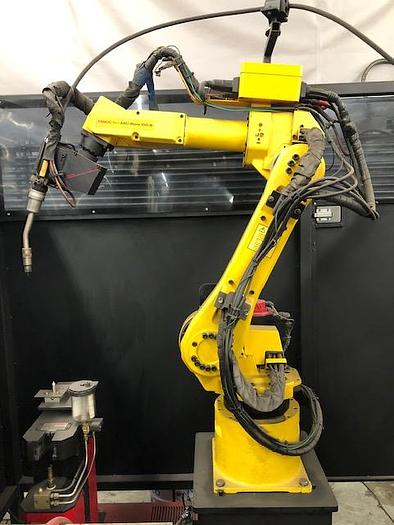

FANUC ARCMATE 100IB WELDING ROBOT ARM

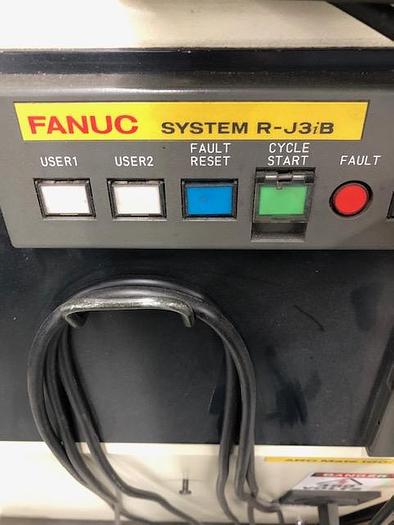

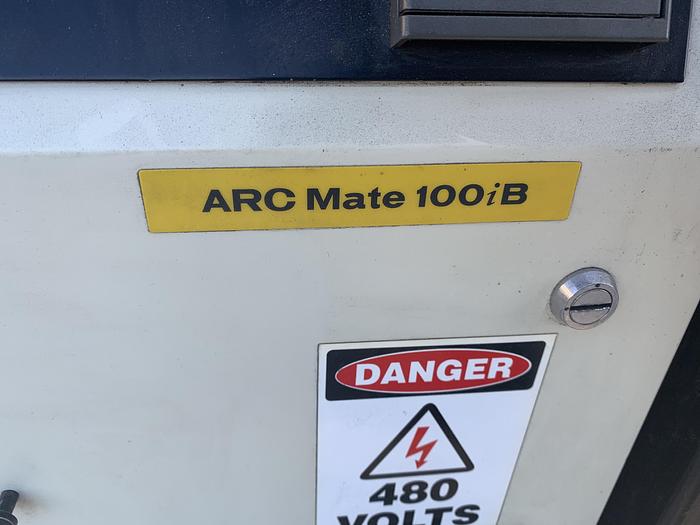

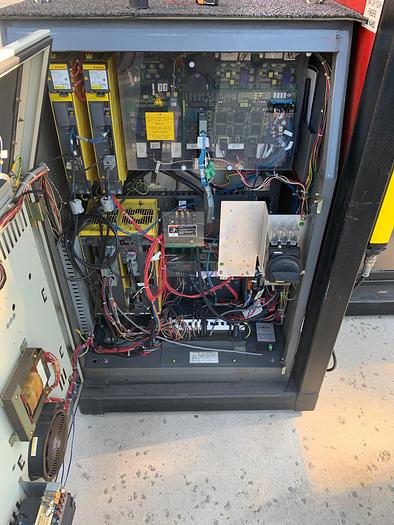

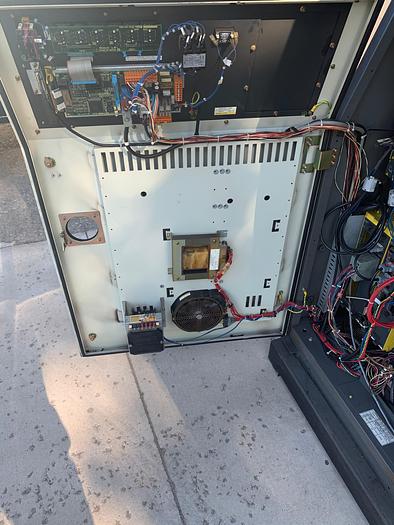

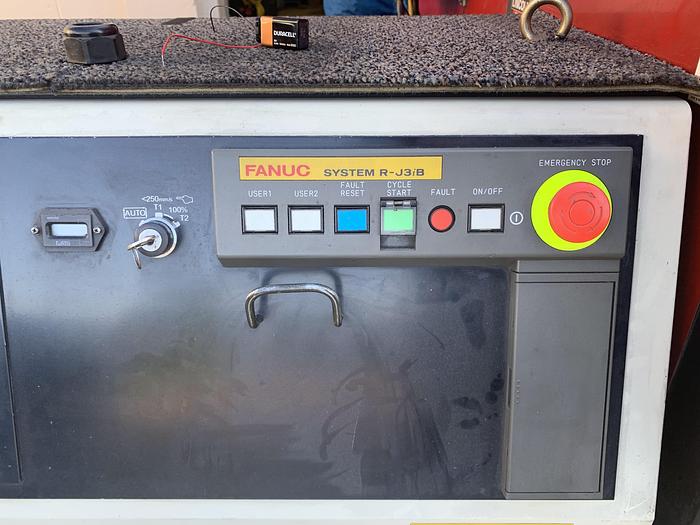

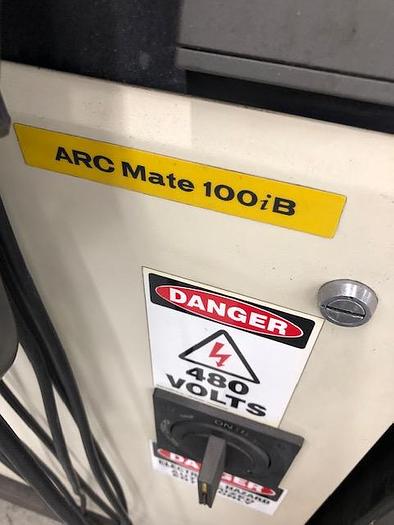

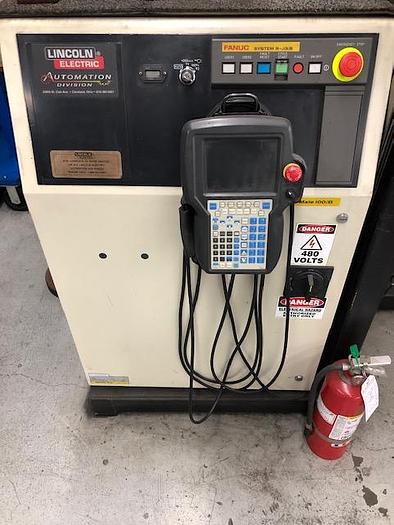

FANUC ARMATE RJ3IB ROBOT CONTROLLER
CABLES
TEACH PENDANT

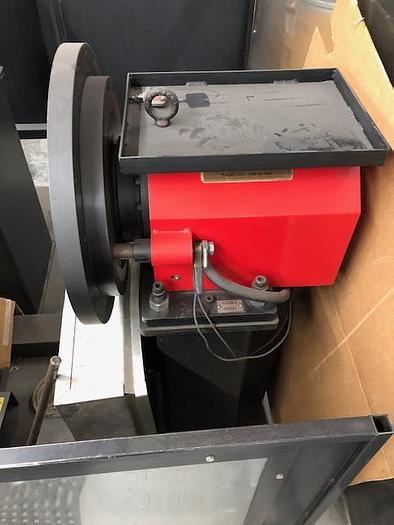

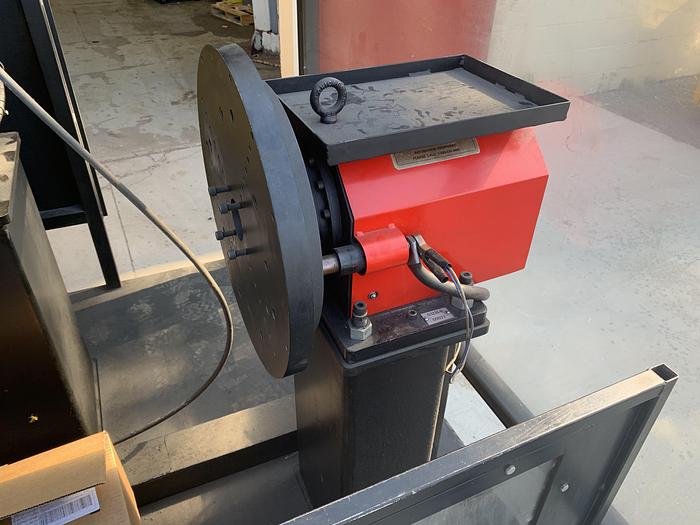

LINCOLN ELECTRIC TRUNNION

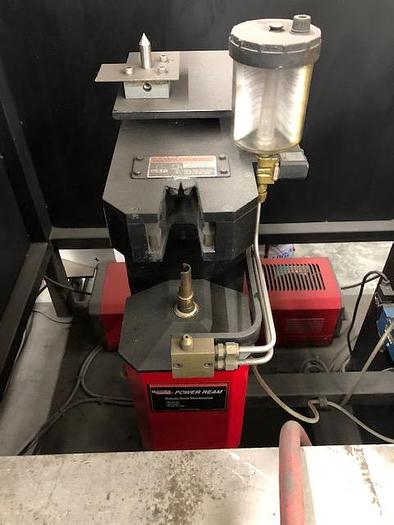

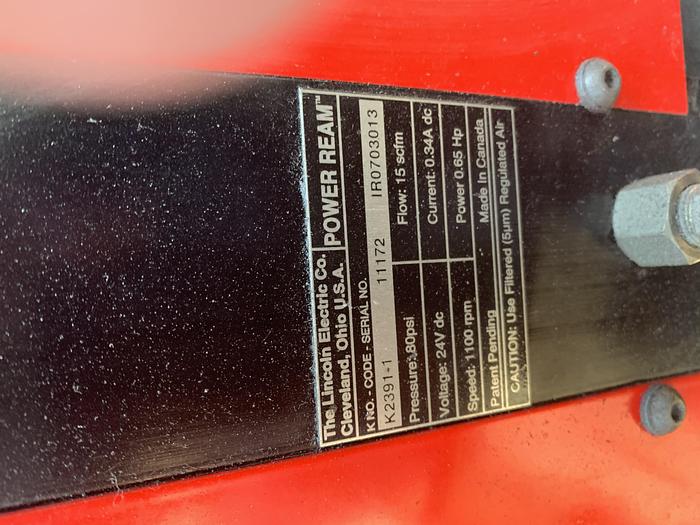

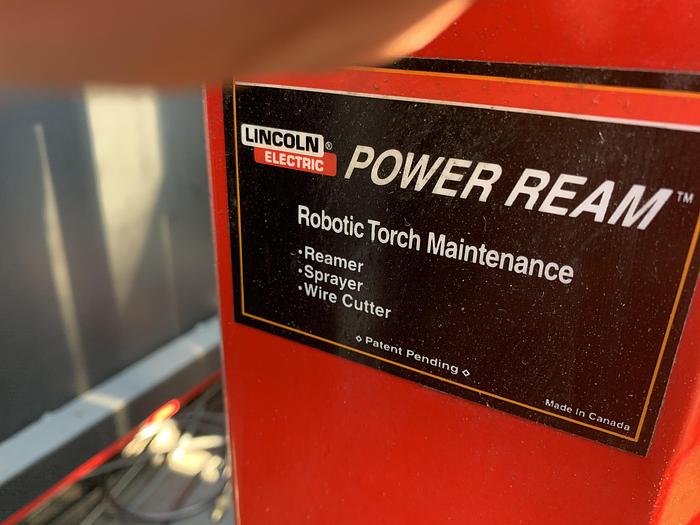

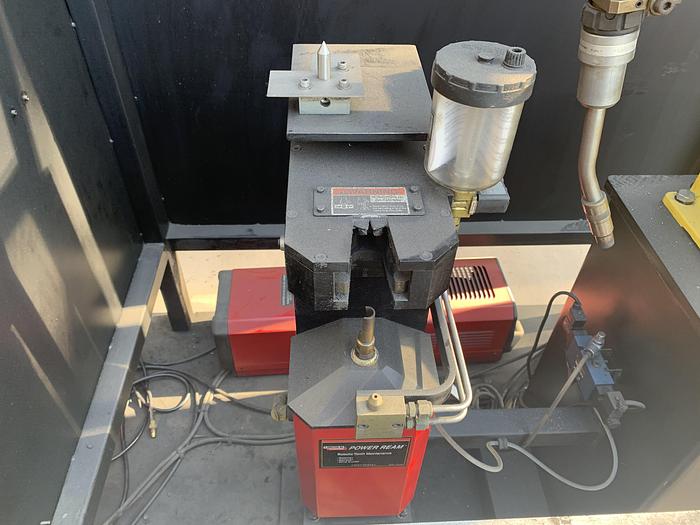

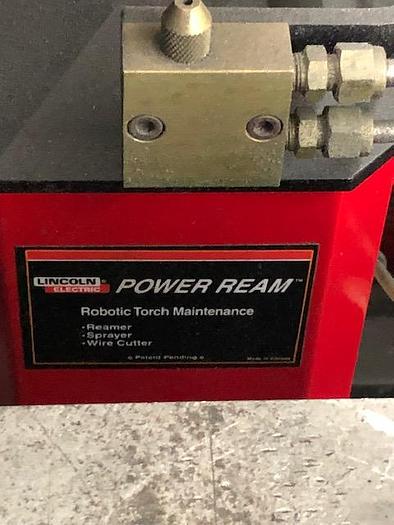

LINCOLN ELECTRIC TORCH TIP CLEANER
LINCOLN ELECTRIC WIRE FEEDER

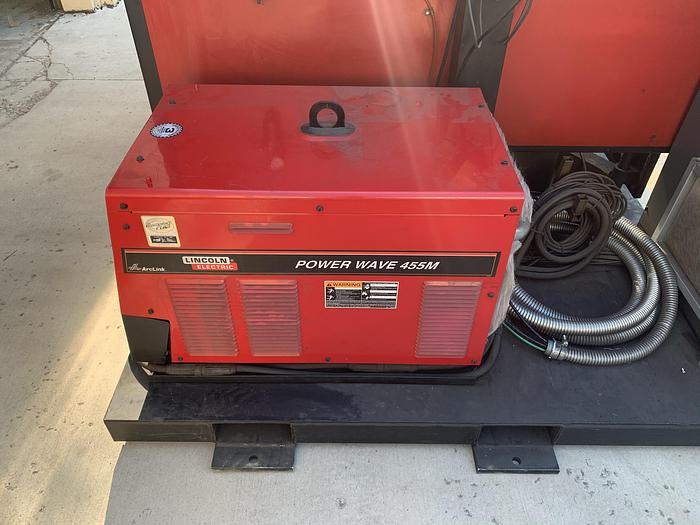

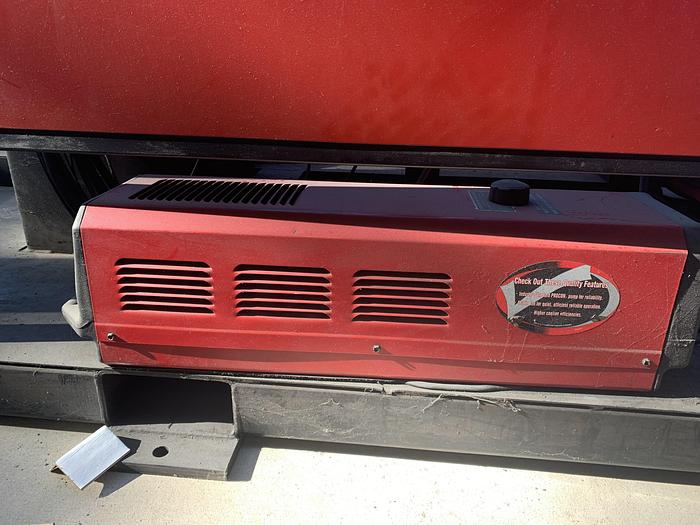

LINCOLN ELECTRIC POWERWAVE 455M WELDING POWER SUPPLY

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND
BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS
AND CONDITIONS.

RAB INDUSTRIES, INC.

Specifications

ManufacturerFANUC
Model100IB
Year2002
ConditionUsed
Stock Number103881
