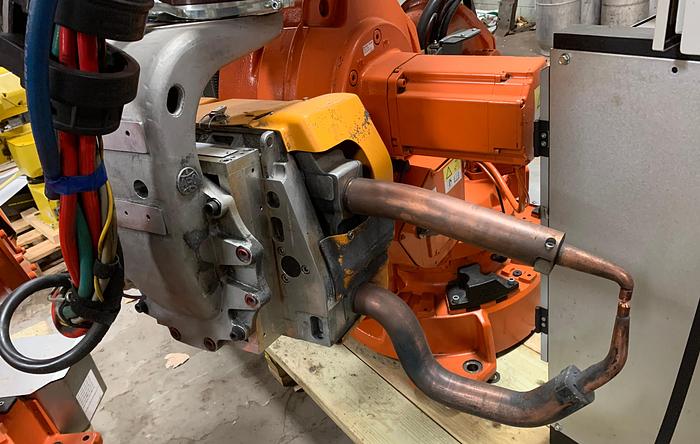

ARO 3G SERIES MODEL V146012000U SERVO SPOT WELD GUN 222MM OPENING 1300 LBS MAX. FORCE
1-BARELY USED ARO MODEL V146012000U SERVO SPOT WELDING GUN

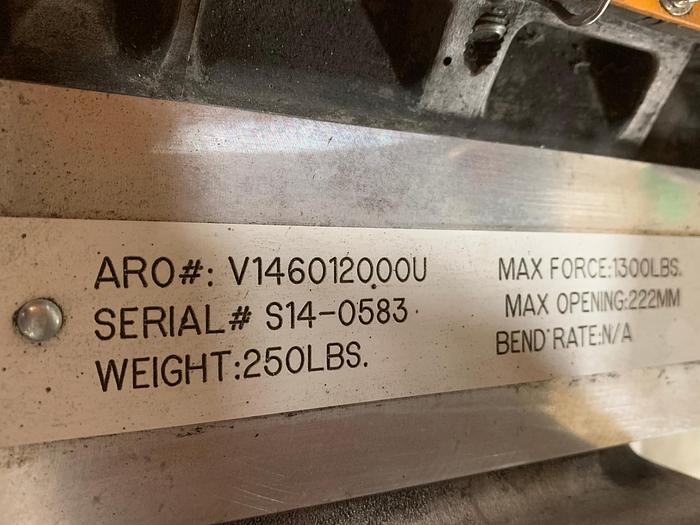

SERIAL NUMBER S14-0583
DATE OF MFG. 2014
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:
WEIGHT OF UNIT 250LBS
MAX OPENING 222 MM

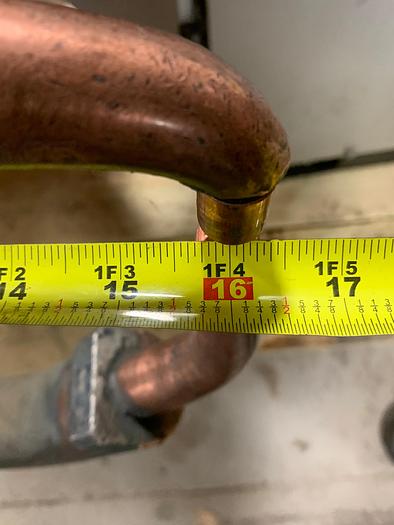

THROAT DEPTH 16"
MAX FORCE 1,300 LBS

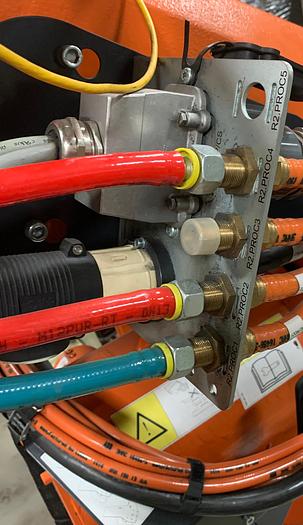

COMPLETE WITH ROBOTEC DRESS PAC AND ROBOT CONECTION CABLES
THAT WE CAREFULLY DISCONNECTED FROM AN ABB IRB 6640 2.55/185 ROBOT.
UNIT IS VERY CLEAN AND READY TO ADAPT TO YOUR ROBOT AND GO TO WORK.
Using ARO’s unequalled modular and servo gun expertise, the family of 3G guns has up to 60% fewer parts than conventional gun designs and there is a high degree of component commonality between all of the 3G gun types.
The 3G gun bodies:
The revolutionary 3G modular system allows four gun variations to be created from nine shared modules, seven specific modules and 2 plug and play arms. These four variations are called the 3G-C, 3G-X (copper arms), the 3G-Z and the 3G-CZ (aluminium arms) guns which have different welding force versus arm length performance.
Rapid and easy assembly:
Assembly of the four types uses the 3G modular design. A fully functioning gun can be assembled quickly from a small number of standardised components. Once assembled the arms simply plug in and the whole assembly is ready for inspection:
MTTR is less than 10 minutes.
Delivery times are dramatically reduced.
Protection from contamination:

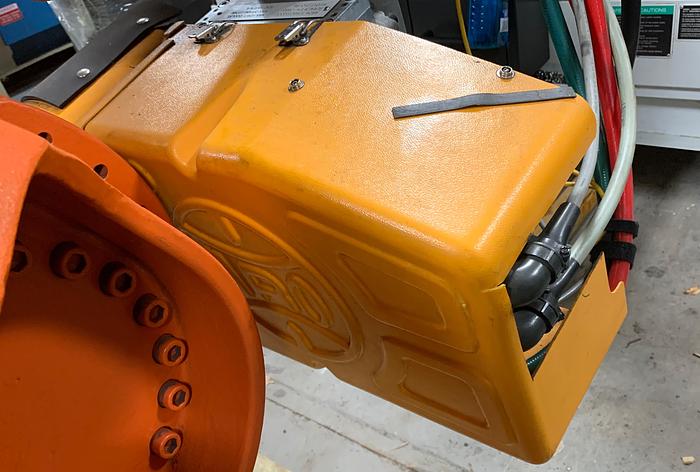

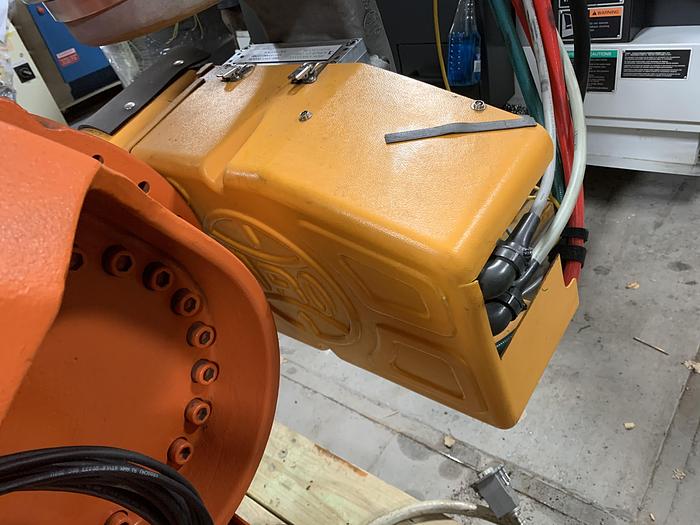

The 3G modular system includes a cover providing excellent protection from contamination, ease of access for maintenance and removes the need for expensive gun bags.
Protects from contamination. Easier maintenance.
Patented universal side plate platform:
The ARO design philosophy is built around ease of use and keeping maintenance costs to a minimum. The patented universal side platform is in keeping with this philosophy.
Ease of access for maintenance and repair.
Assists arm “plug and play” configuration, and body conversions between C and X types.
