FELOWS 10-2

$14,500 (USD)

Imlay City, MI

orCall 586-752-0090

Description

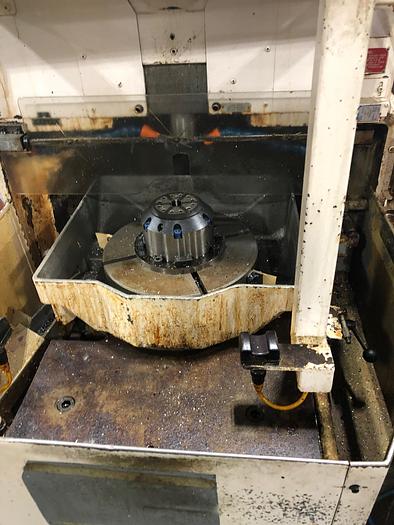

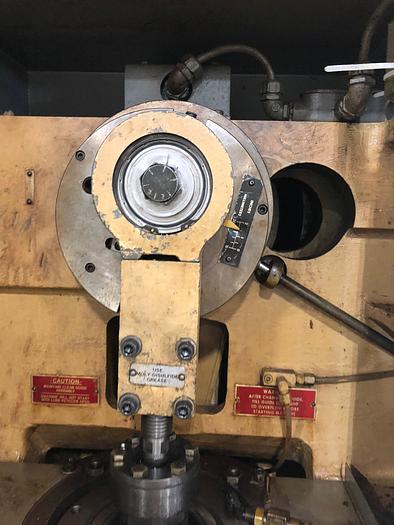

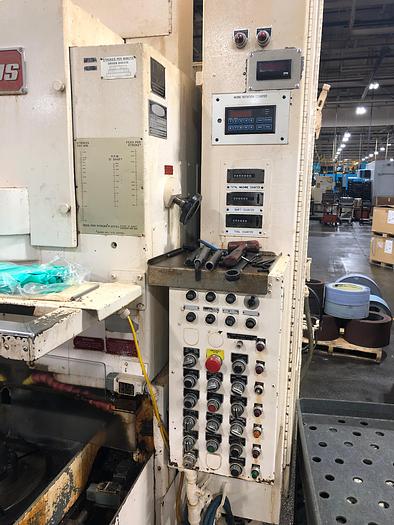

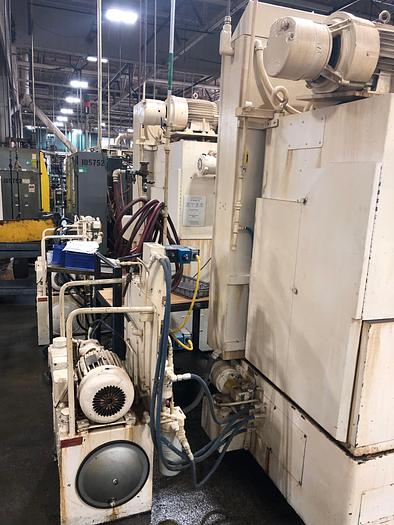

1-USED FELLOWS MODEL 10-2 GEAR SHAPER

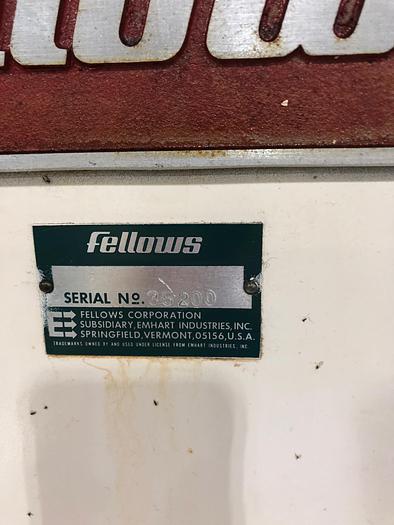

SERIAL NUMBER: 35200
APPROX. YEAR OF MFG. 1976
STK#104011
=============================================
This Machine has the Capacity for Cutting Internal or External Spur
or Helical Gears and many Non-Involute Shapes, Built-In Crowning
Ability, Taper Ability, Variable Speed Infeed for Better Finish and
Extended Cutter Tool Life, Cut and Infeed Rates are Set by
Potentiometers.

EQUIPPED WITH: Infinitely Variable Depth Control, Mechanical Helical Guide,
Hydraulic Work Clamping, Coolant
System, Automatic Lube System.

CATALOGUE SPECIFICATIONS:

Maximum Pitch Diameter, External...................... 10"
Maximum Pitch Diameter, Internal...................... 10"
Maximum Face Width Internal & External................ 2"
Maximum Diameter Swing................................ 19"
Maximum Diametral Pitch, Spur......................... 4
Maximum Diametral Pitch, Helical...................... 5
Maximum Helix Angle with Standard Guides.............. 45 Degrees
Speed................................................. 350-659 SPM
Horsepower............................................ 5 HP
Approximate Machine Dimensions........................ 97" x 58"
Approximate Machine Height............................ 119"
Approximate Machine Weight............................ 11,000 Lbs


SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND
BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS
AND CONDITIONS.

RAB INDUSTRIES, INC.

Specifications

ManufacturerFELOWS
Model10-2
ConditionUsed
Serial Number35200
Stock Number104011
