FELOWS 10-2

FELOWS 10-2

$14,500 (USD)

Saginaw, MI

orCall 586-752-0090

Description

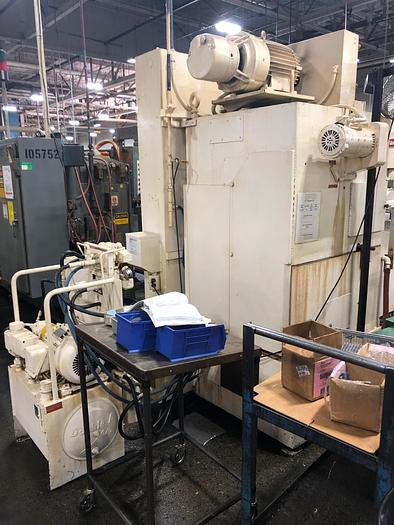

1-USED FELLOWS MODEL 10-2 GEAR SHAPER SERIAL NUMBER: 35199 APPROX. YEAR OF MFG. 1976 ============================================= This Machine has the Capacity for Cutting Internal or External Spur or Helical Gears and many Non-Involute Shapes, Built-In Crowning Ability, Taper Ability, Variable Speed Infeed for Better Finish and Extended Cutter Tool Life, Cut and Infeed Rates are Set by Potentiometers. EQUIPPED WITH: Infinitely Variable Depth Control, Mechanical Helical Guide, Hydraulic Work Clamping, Coolant System, Automatic Lube System. CATALOGUE SPECIFICATIONS: Maximum Pitch Diameter, External...................... 10" Maximum Pitch Diameter, Internal...................... 10" Maximum Face Width Internal & External................ 2" Maximum Diameter Swing................................ 19" Maximum Diametral Pitch, Spur......................... 4 Maximum Diametral Pitch, Helical...................... 5 Maximum Helix Angle with Standard Guides.............. 45 Degrees Speed................................................. 350-659 SPM Horsepower............................................ 5 HP Approximate Machine Dimensions........................ 97" x 58" Approximate Machine Height............................ 119" Approximate Machine Weight............................ 11,000 Lbs SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER: THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.

Specifications

ManufacturerFELOWS
Model10-2
ConditionUsed
Serial Number35199
Stock Number104012
